Tally Dascom DL-830 - Chapter 6 Interface Specifications; 6.1 USB; 6.2 Ethernet

Tally Dascom DL-830 User Guide V1.0
52

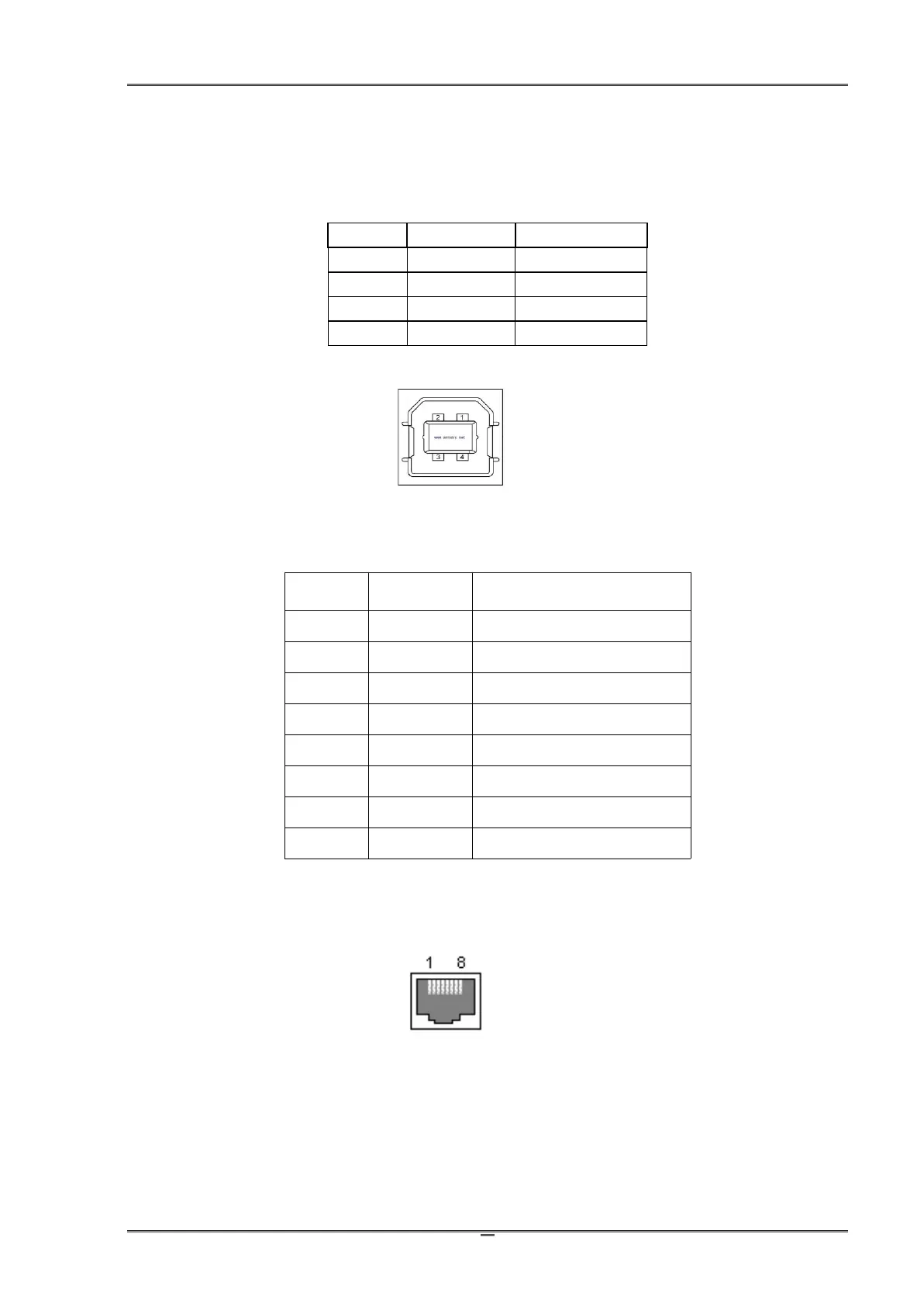

Chapter 6 Interface Specifications
6.1USB
USB Pin Assignment：
Pin
Signal Name
Color
1
VBUS
Red
2
D-
White
3
D+
Green
4
GND
Black
USB B Female Connector:
6.2 Ethernet
Pin Assignment
Pin
Signal
Name
Description
1
TX+
Transmit Data+
2
TX-
Transmit Data-
3
RX+
Receive Data+
4
n/c
Not connected
5
n/c
Not connected
6
RX-
Receive Data-
7
n/c
Not connected
8
n/c
Not connected
RJ-45 Connector:
