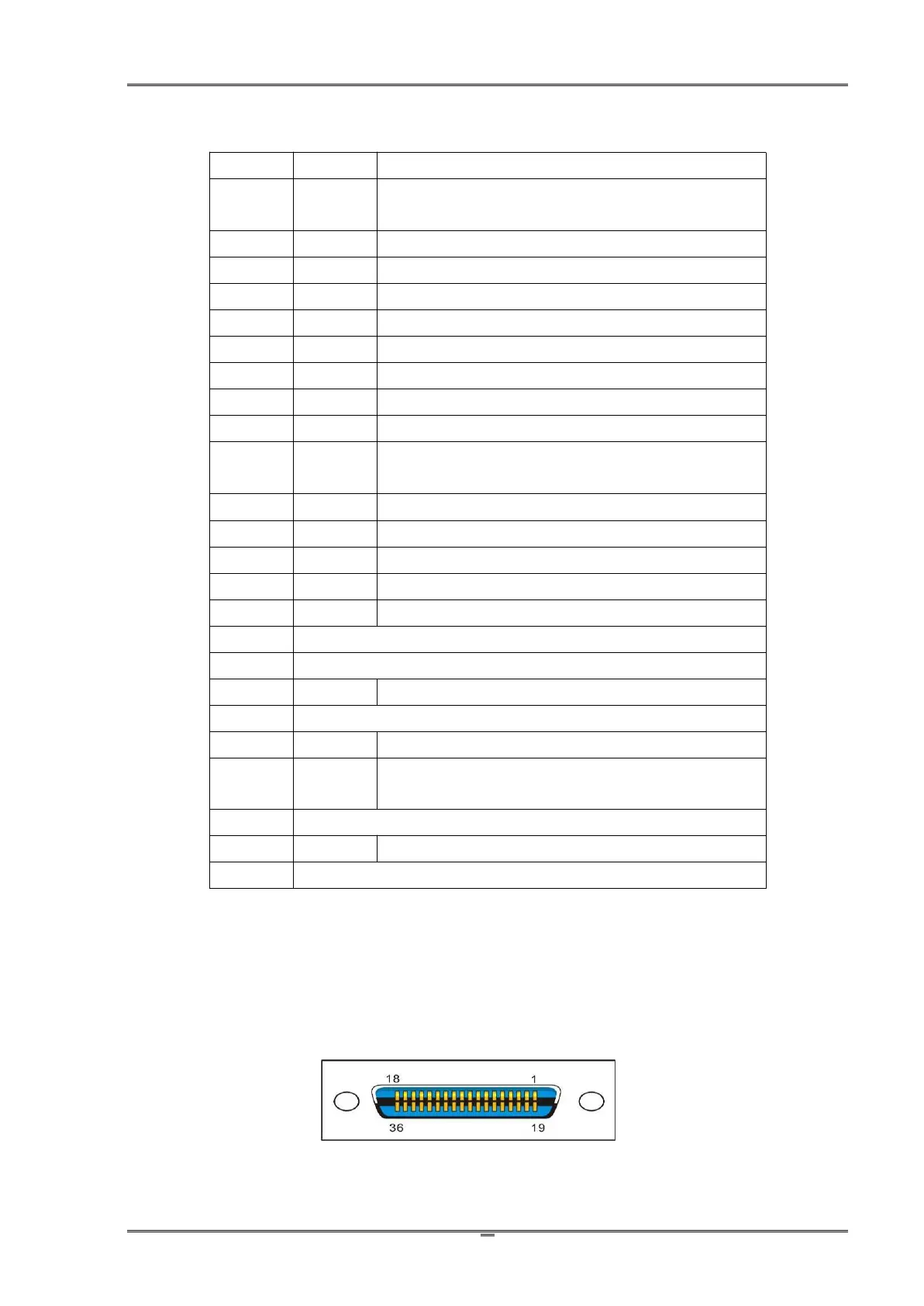

6.3 Parallel
Pin
Source
Signal Name
1
H
STROBE*
2
H
Data0 (LSB)
3
H
Data1
4
H
Data2
5
H
Data3
6
H
Data4
7
H
Data5
8
H
Data6
9
H
Data7 (MSB)
10
P
ACK*
11
P
BUSY
12
P
PError
13
－
Not Connected
14
－
Not Connected
15
－
Not Connected
16
Logic Ground
17
Chassis Ground
18
－
5V/500mA driver
19~30
Logic Ground
31
－
INIT*
32
P
FAULT*
33
Logic Ground
34~35
－
Not Connected
36
Not Connected
Remarks: H - signal source from host; P - signal source from printer.
1284-B Connector:
