Taski swingo 1255B User Manual

GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-2
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5 Mechanical
5.1 Mechanical sequences
5.1.1 Handle/Upper part
5.1.1.1 Replacing of microswitch

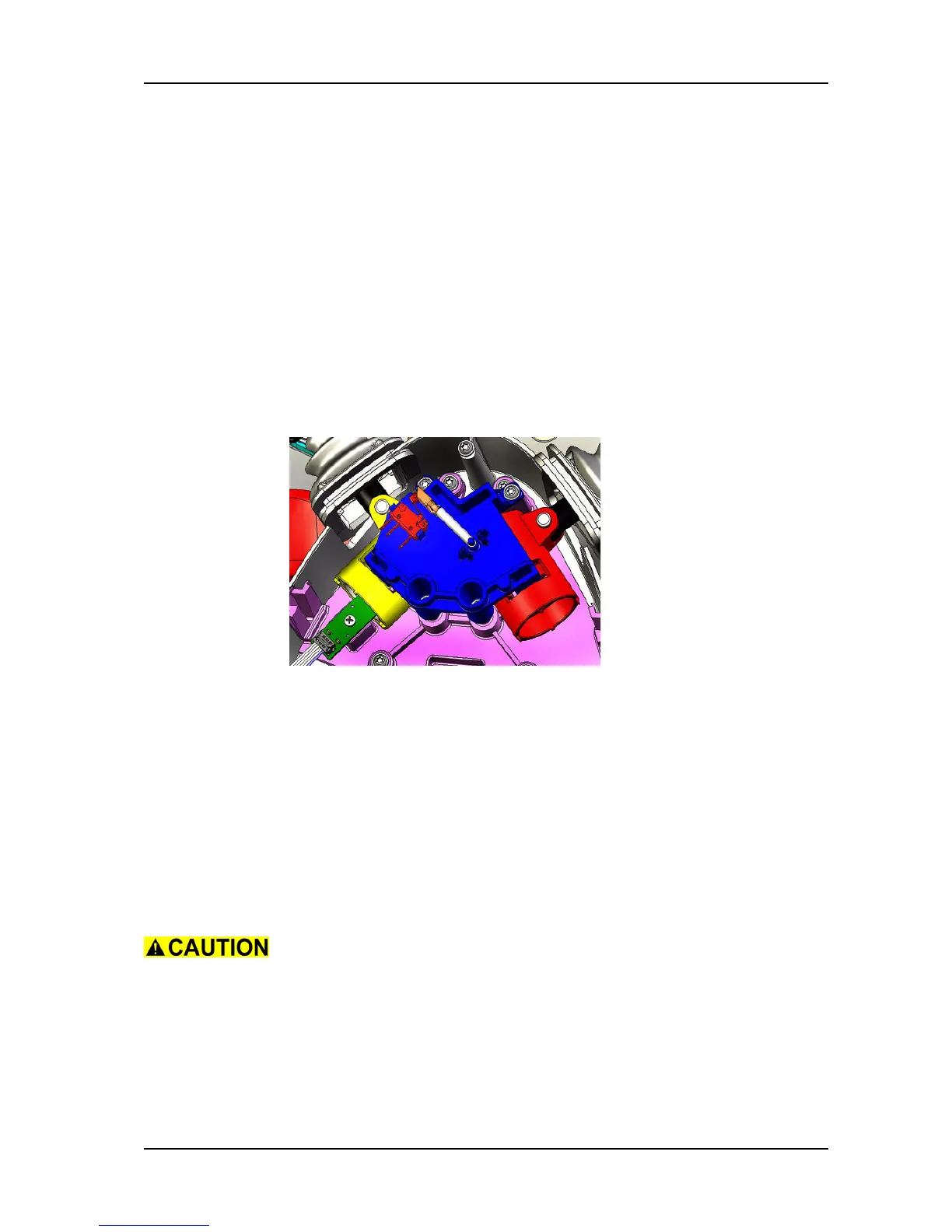

Picture 1: Microswitch
Remove
• Remove the 3 screws of the cover.
• Remove the cover.
• Unplug hour counter wires from the hour counter or the cover.
• Remove spring of the microswitch.
• Remove microswitch from fixation.
• Disconnect wires from microswitch.
Mount
• Connect new microswitch to the wires.
• Position the microswitch on the fixation.
Ensure that the microswitch is positioned correctly on the fixation
(pins).
• Assemble microswitch spring.
• Test if the microswitch is functional when moving the throttle
levers.
• Connect the hour counter wires to the hour counter or to the
cover.
• Assemble the cover.
• Tighten the cover with the 3 screws.
