GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-15
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.3.3 Replacing of back blade

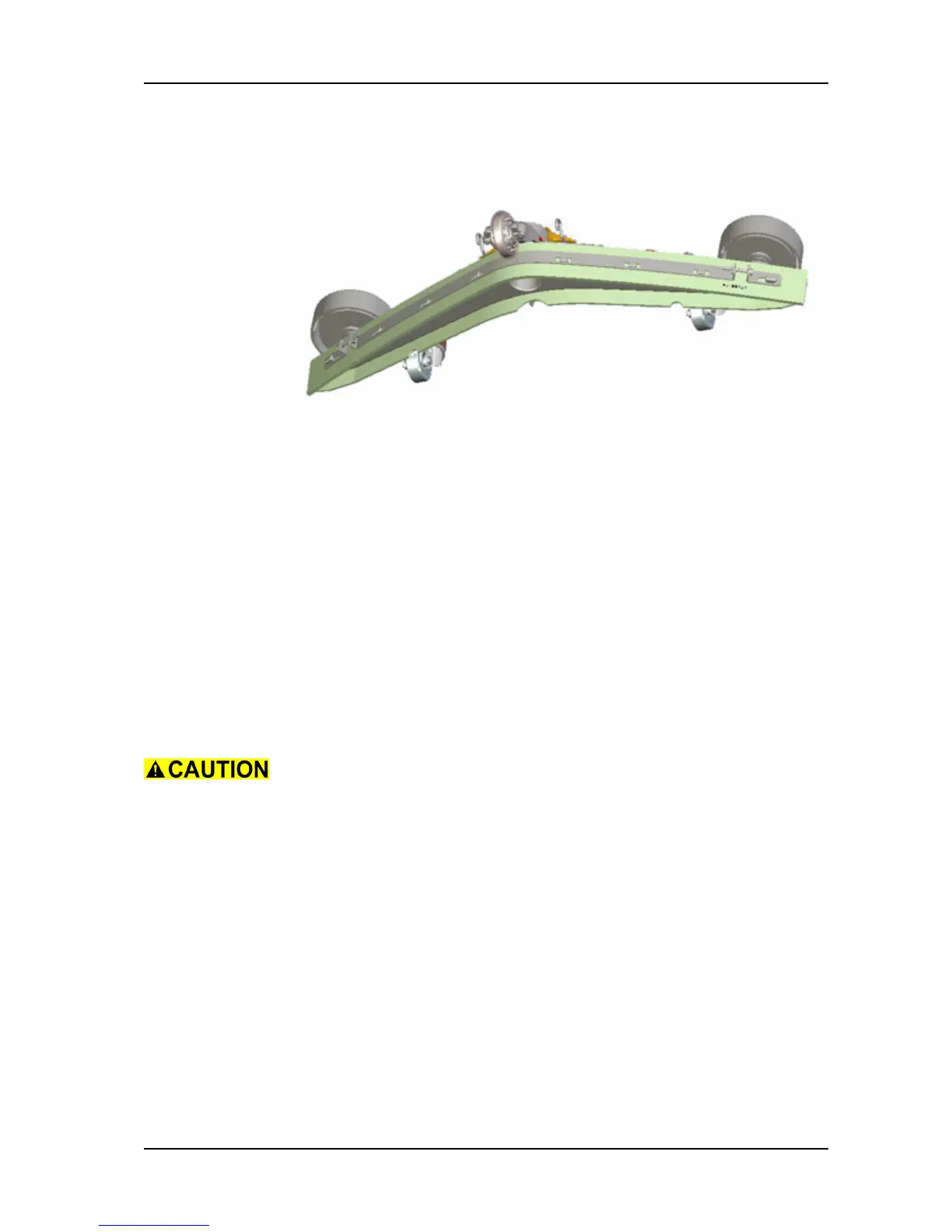

Picture 15: Back blade
Remove
• Loosen the fixation screws on both sides to release the
pressure.
• Remove the tightening strap.
• Remove the back blade.
Mount
• Position new back blade.
• Position tightening strap.
• Tighten fixation screws until the blade is proper fixed on the
squeegee body.
Remarks
Pay attention that the tightening strap is positioned in the center.
Ensure that the tightening strap is positioned correct (thin part to
the bottom).
If you over tighten the tightening strap it can bulge.
