5.1.4.2 Replacing of castor wheel

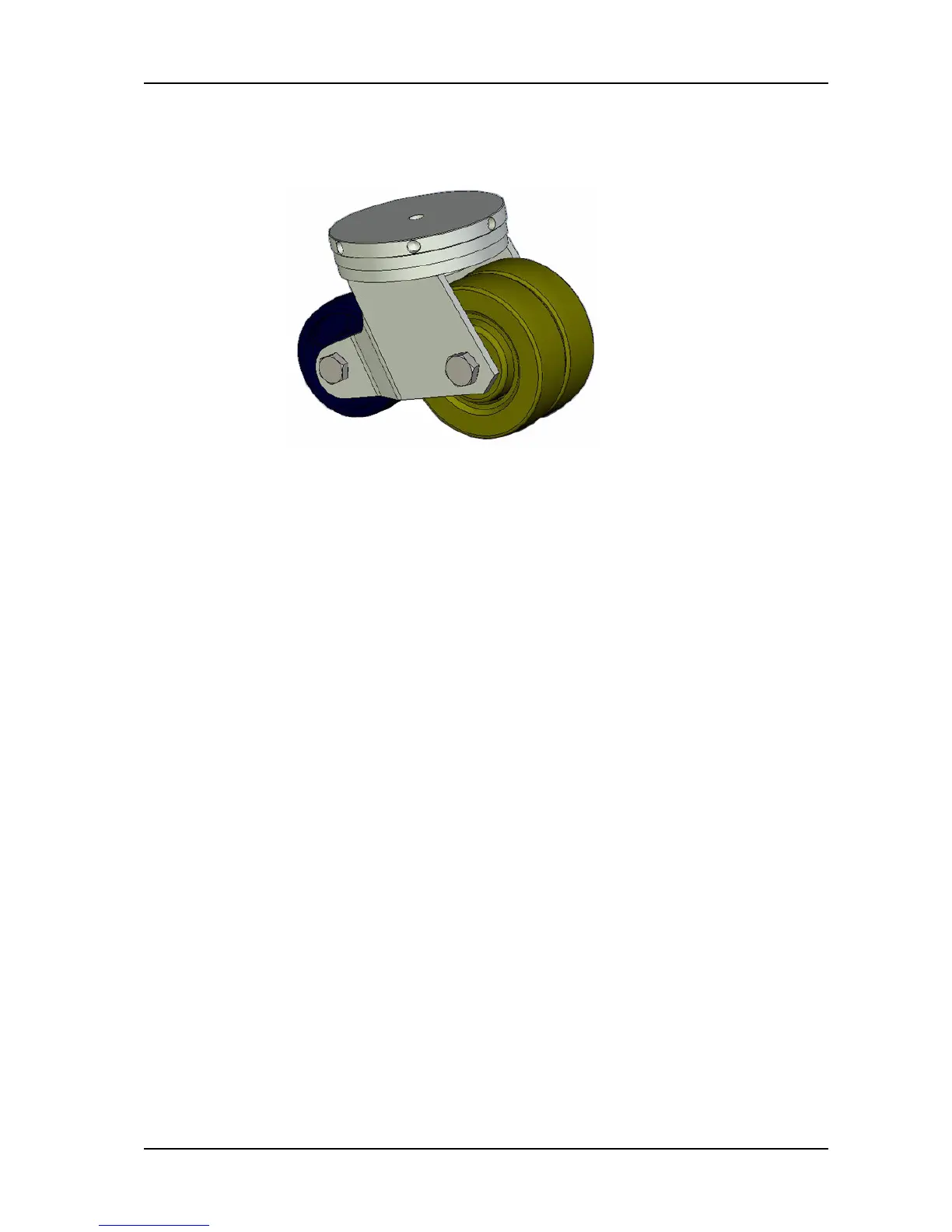

Picture 18: Castor wheel
Remove
• Unlock battery compartment on the LH side by removing the
screw of the locking system.
• Lay the machine on the LH side.
• Unlock battery compartment on the RH side by removing the
screw of the locking system.
• Open the battery compartment.
• Loosen the fixation screw (04/102) with a 19 mm fork
spanner/nut.
• Remove the complete castor wheel.
Mount
• Assemble castor wheel.
• Tighten the fixation screw with a 19 mm fork spanner/nut.
Adjustment
Tighten the screw with 70 Nm.
• Lock battery compartment on the RH side with the screw of
the locking system.
• Lift up the machine.
• Lock battery compartment on the LH side with the screw of the
locking system.
