5.1.3 Squeegee

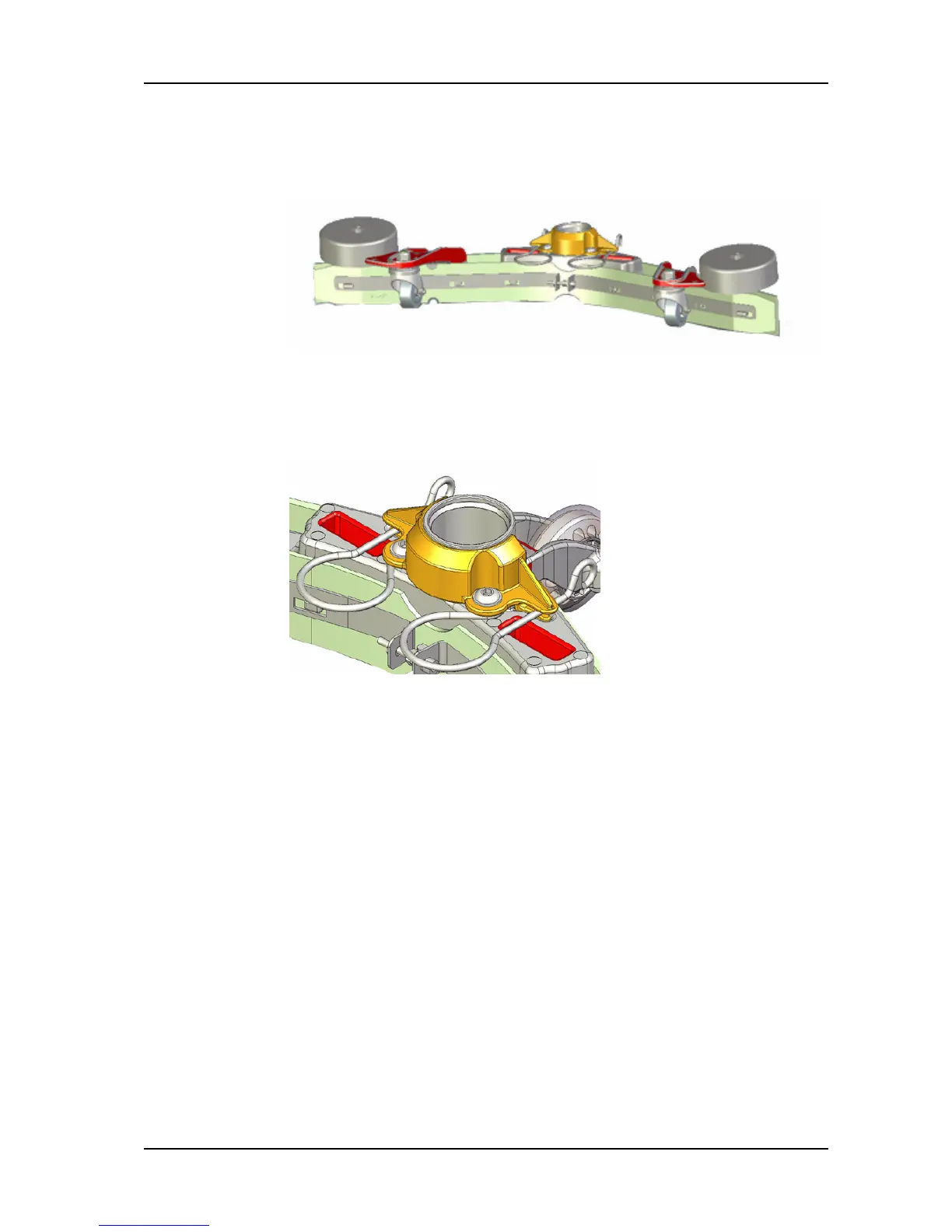

Picture 11: Squeegee
5.1.3.1 Replacing of fixation spring
Picture 12: Offset fixation
Remove
• Unscrew the 2 screws of the offset (03/113) fixation.
• Remove the offset and the spring (03/114).
• Remove the spring from the offset.
Mount
• Assemble the new spring on the offset.
• Assemble the offset and the spring on the squeegee.
• Mount the screws of the offset.
