GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-35
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.8.3 Replacing of motor & motor belt

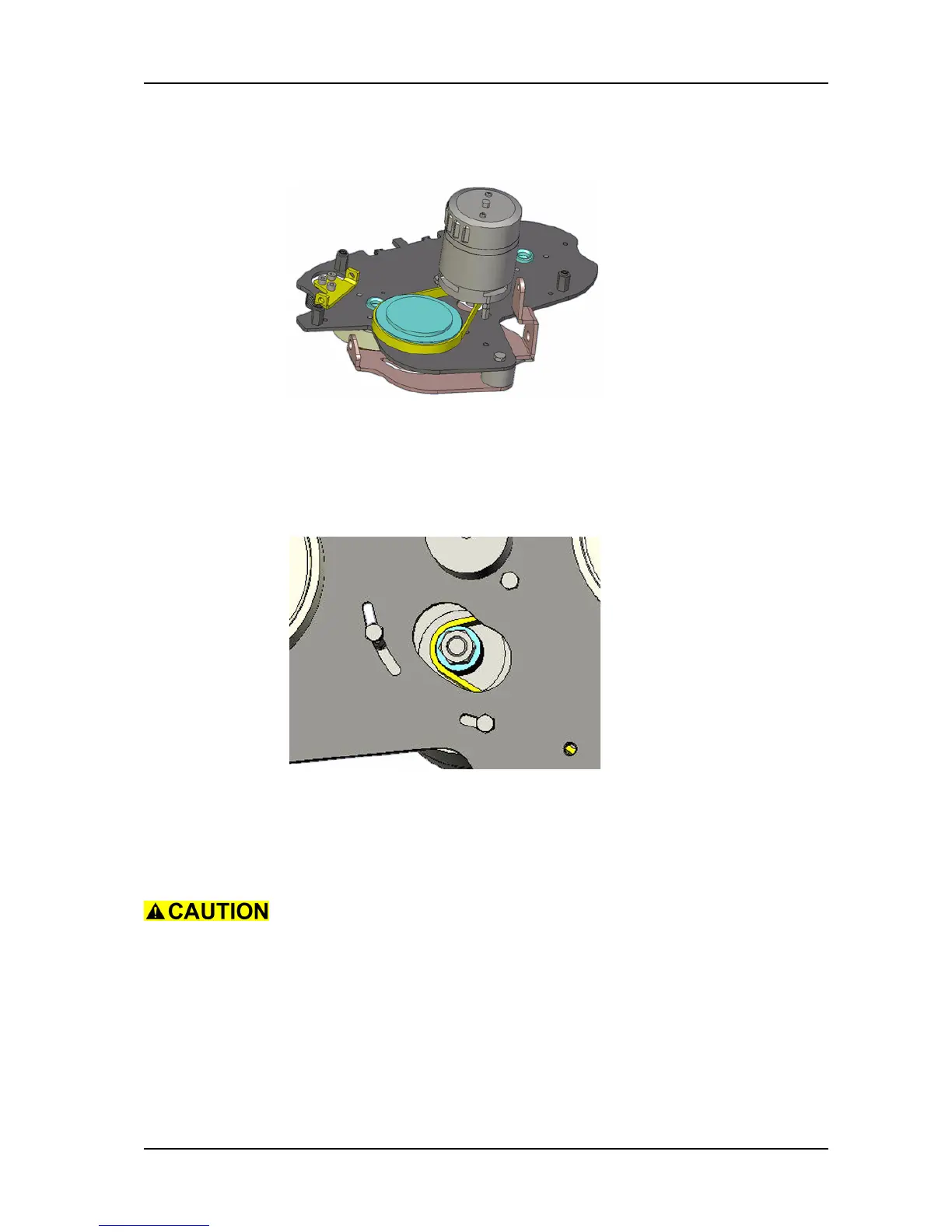

Picture 39: Motor belt
Remove
• Remove brush drive unit according to chapter REPLACING OF
BRUSH DRIVE UNIT.
• Remove brush belt according to chapter REPLACING OF
BRUSH BELT.
Picture 40: Motor fixation
• Remove the three screw (08/135).
Mount
• Position the new motor/new belt.
Take care that the belt is positioned correctly.
• Position the screws.
Service
Apply adhesive looking (08/136) on the screws (08/135).
• To tension the belt move the motor in position.
• Tighten all screws.
• Complete assembling according to the chapter REPLACING OF
