6.2.3 Power electronics

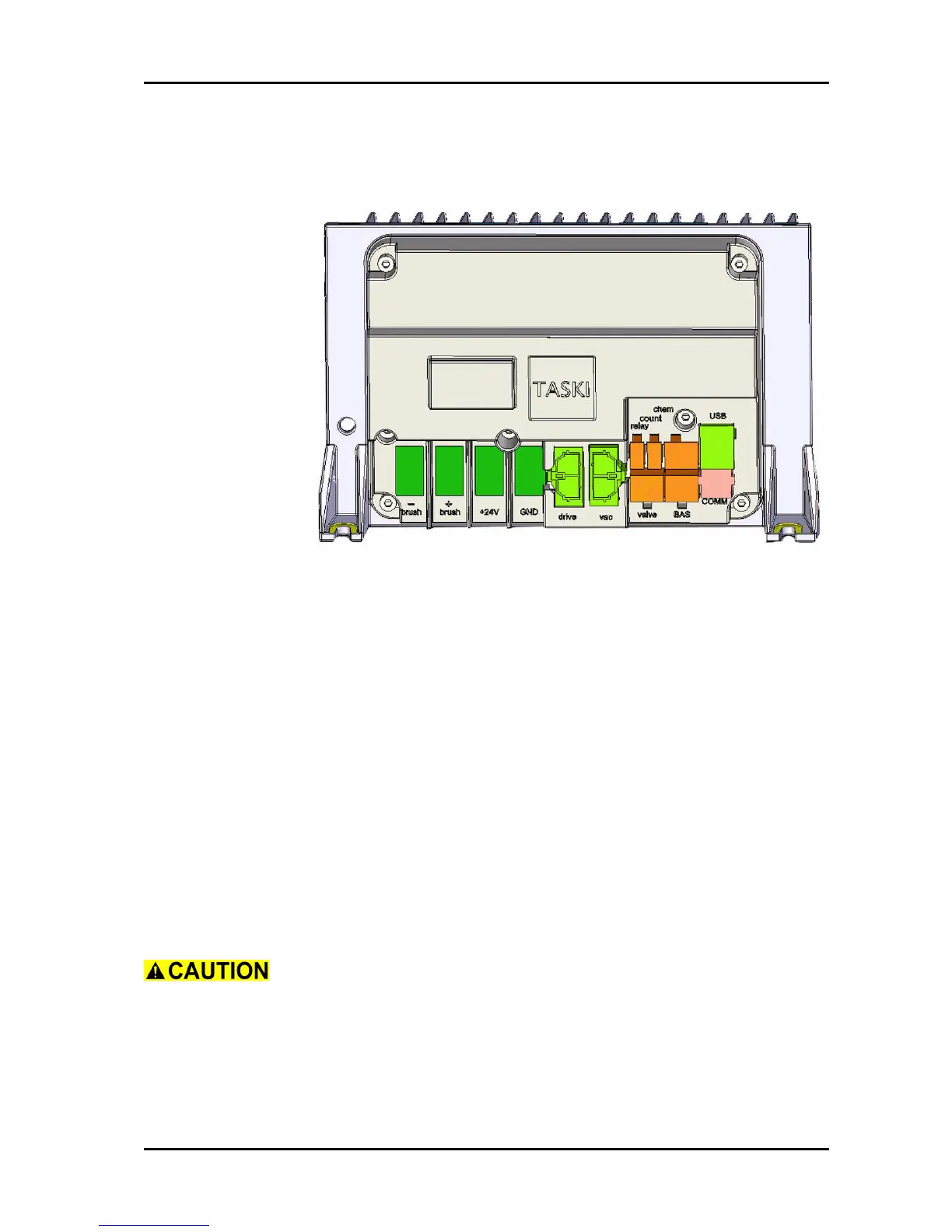

Picture 6: Power electronics
6.2.3.1 Replacing of power electronics
Remove
• Unlock battery compartment by removing screws of locking
system.
• Open the battery compartment.
• Loosen the two screws that fix the power electronics to the
support.
• Move out the power electronics.
• Disconnect wires and connectors.
• Remove power electronics.
Mount
• Take new power electronics.
• Connect wires and connectors to power electronics.
• Position power electronics on the support.
• Tighten the two screws.
Tighten the connectors with the correct torque. Refer to
Adjustment or spare parts list.
• Close and lock the battery compartment on both sides with the
screws of the locking system.
