5.1.3.2 Replacing of front blade
Remove

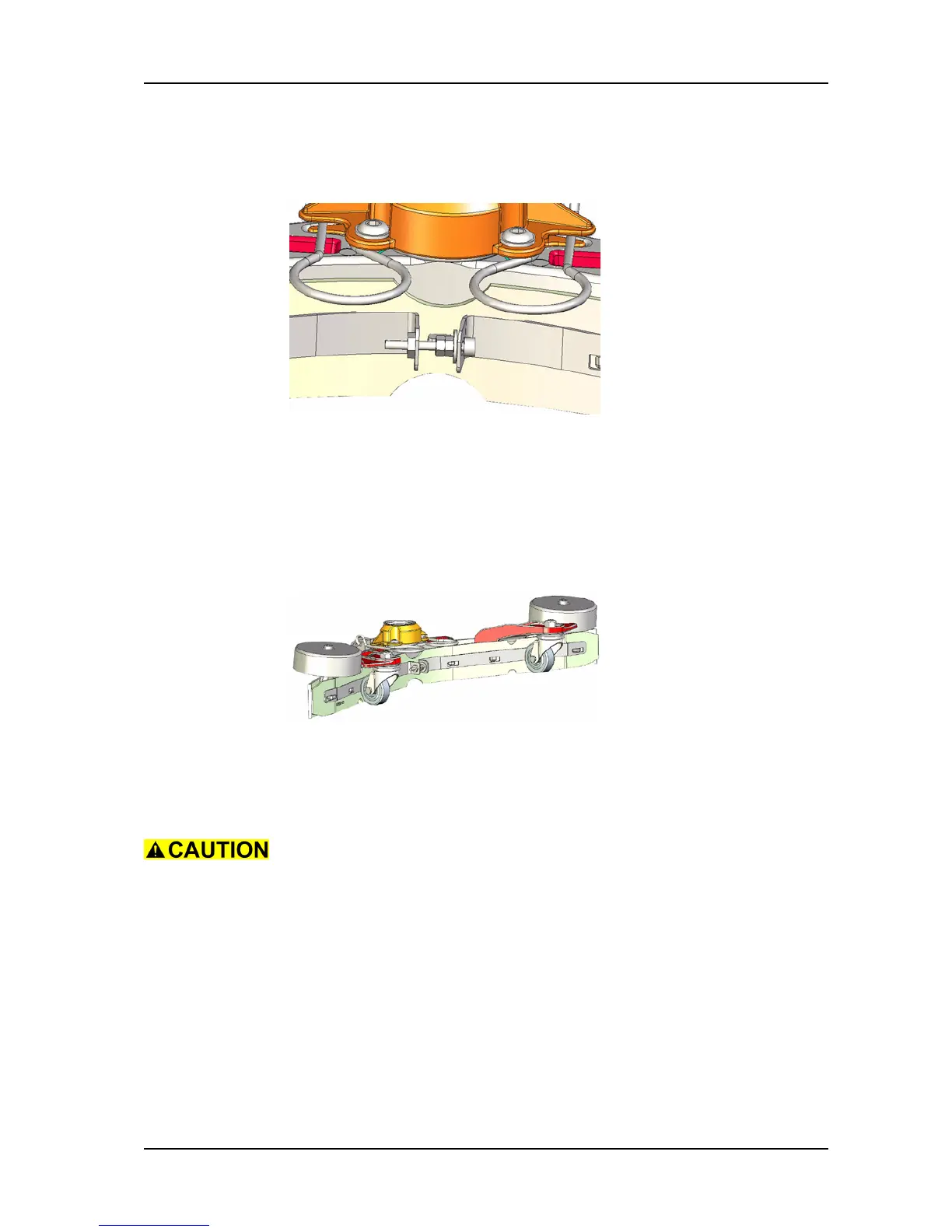

Picture 13: Front blade fixation
• Tighten fixation screw until the tightening strap can be
removed (the pressure to the outer sides of the squeegee
body will be reduced).
• Remove front blade.
Mount
• Position new front blade.
Picture 14: Tightening strap front blade
• Position tightening strap.
• Loosen fixation screw until the blade is proper fixed on the
squeegee body.
Ensure that the tightening strap is positioned correct (thin part to
the bottom).
If you over tighten the tightening strap it can bulge.
