Adjustment
• M5 (04/125) with 5 Nm
• Battery minus
• Brush minus
• M6 (04/128) with 7 Nm
• Brush plus
• M4 (04/131) with 2.5 Nm
• Battery plus
6.2.3.2 Connections

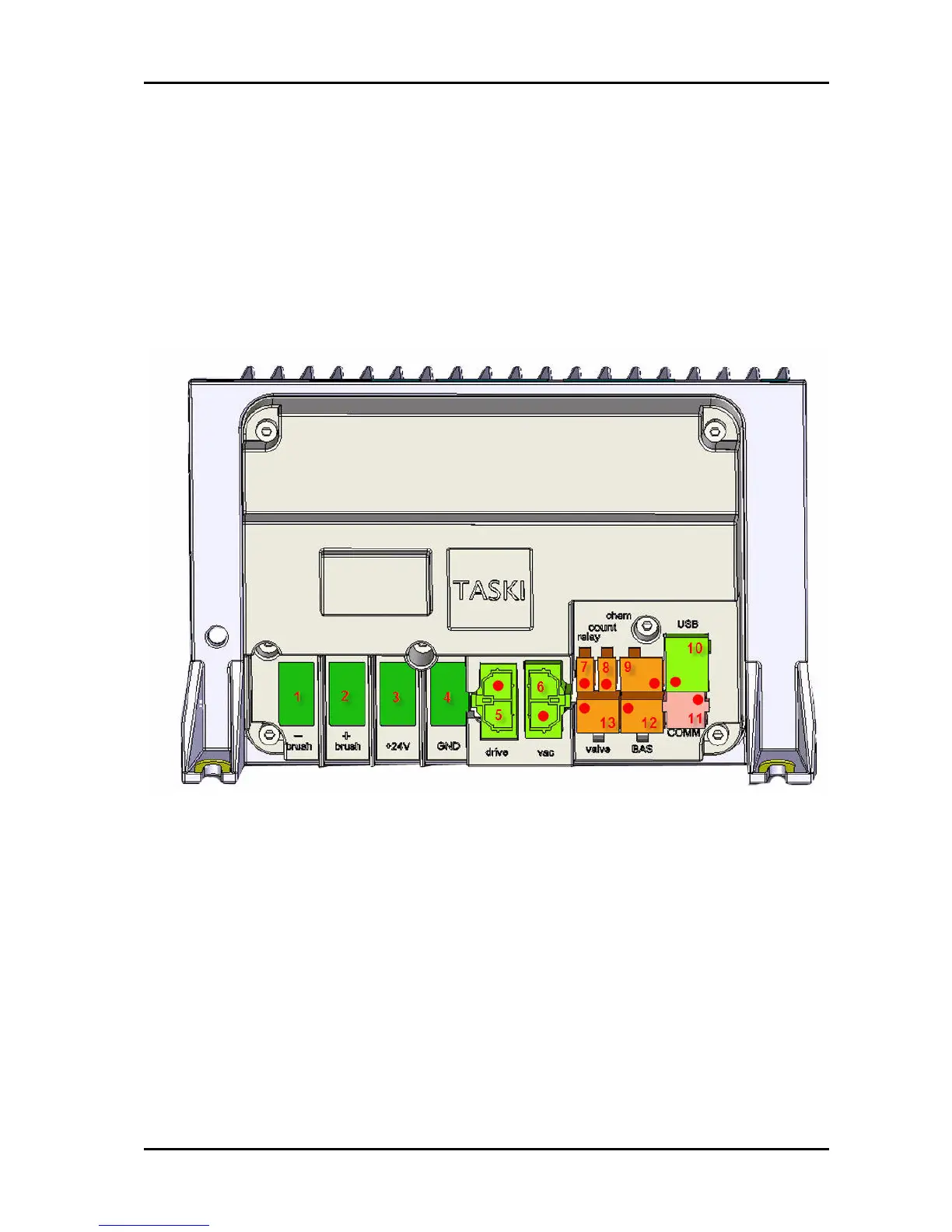

Picture 7: Power electronics connector
