Taski swingo 1255B

GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-30
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.8 Brush drive

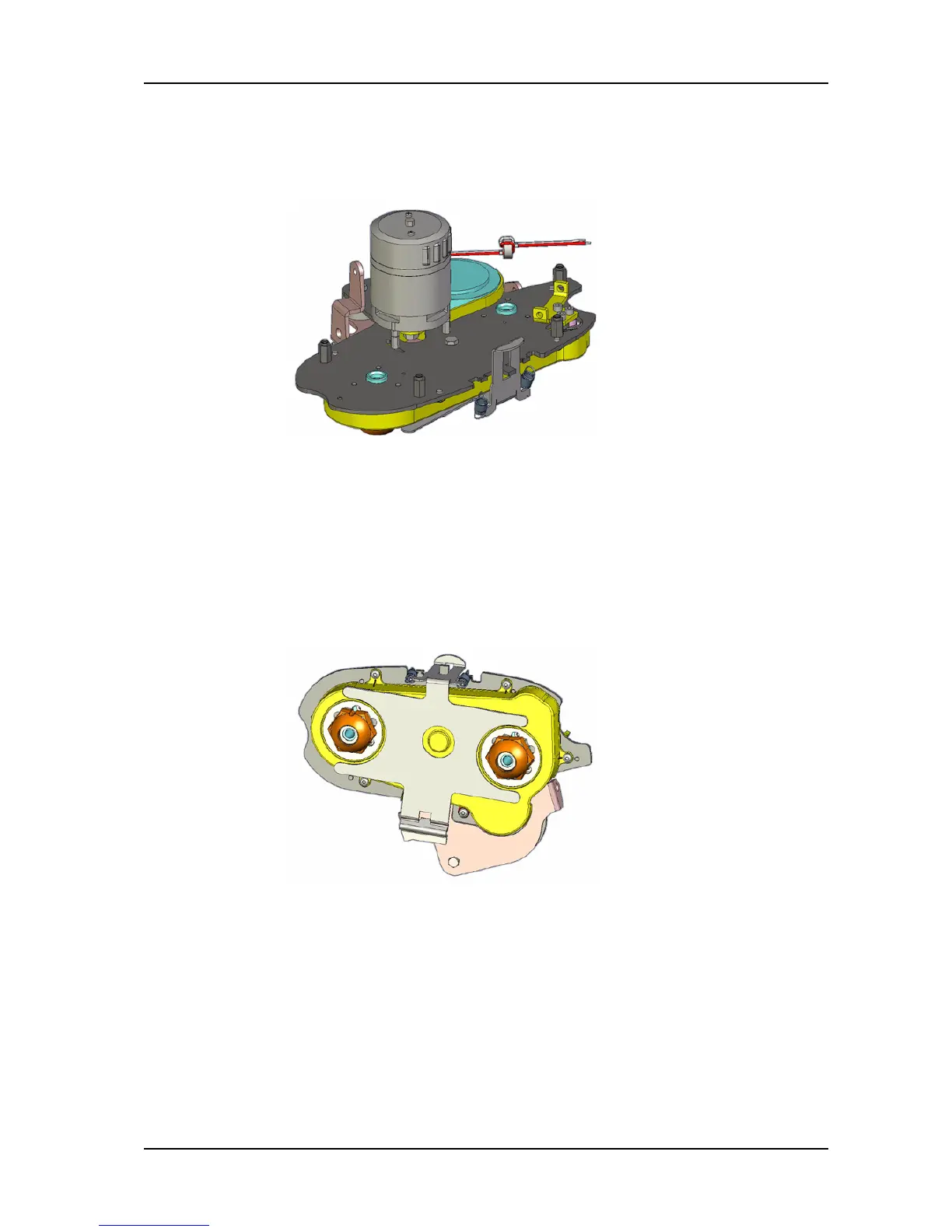

Picture 33: Brush drive
5.1.8.1 Replacing of brush belt
Remove
• Remove brush drive unit according to chapter REPLACING OF
BRUSH DRIVE UNIT.
• Remove the tension springs (07/145) of decoupling bow.
• Remove the decoupling bow (07/130).
Picture 34: Decoupling bow
• Remove the five screws (07/123) of the protective cover.
• Remove the protective cover (07/142).
• Remove the screws (07/116) of the buffer (07/127)
• Remove the bracket (07/146).
