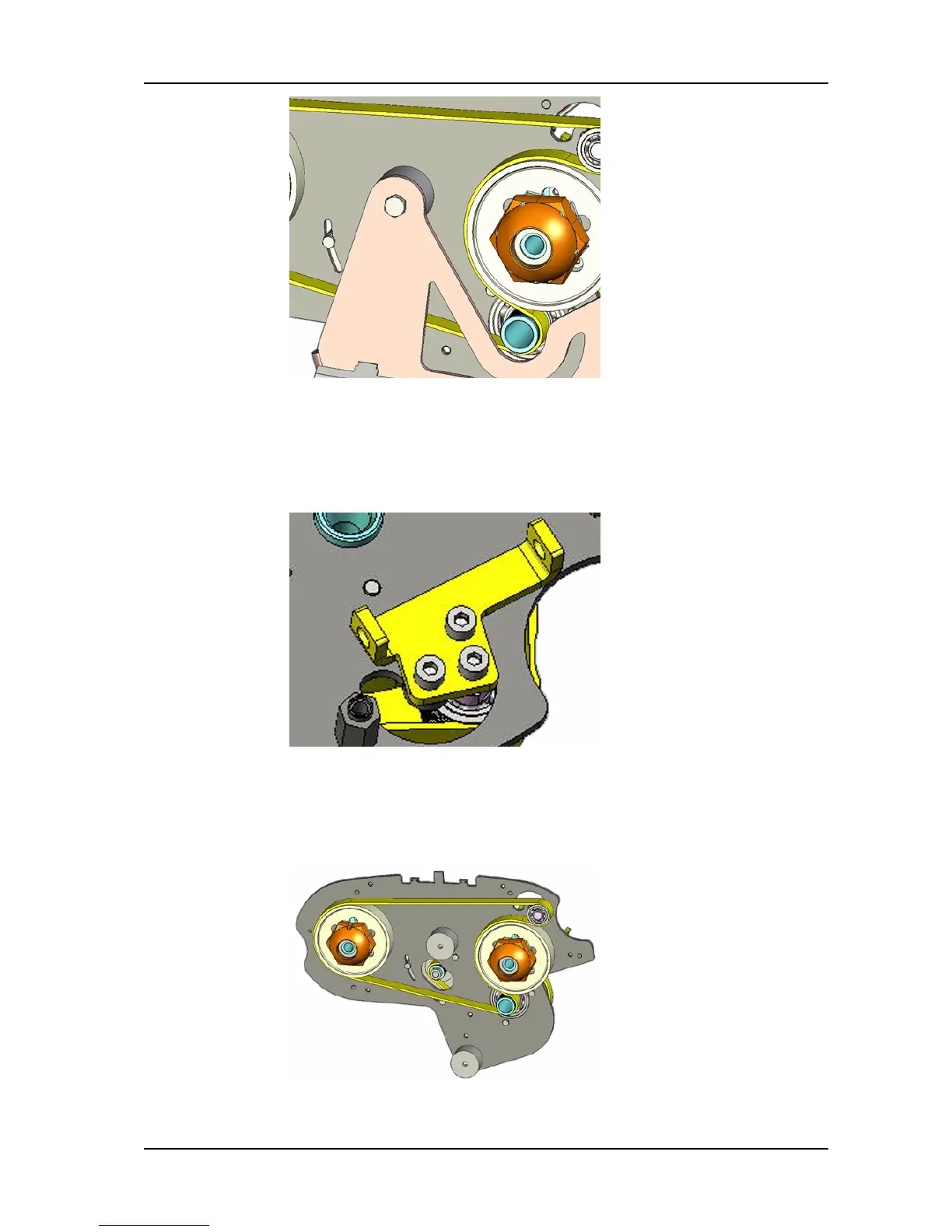

Picture 35: Lift bracket
• Remove fixation screw (07/122) of the clamping piece (07/
138).
• Loosen the center screw (07/122) to turn the clamping piece.
• Turn the clamping piece with a screw driver to release the
tension of the brush belt.
Picture 36: Clamping piece
• Remove the brush belt.
Mount
• Position the brush belt carefully.
Picture 37: Brush belt
• Turn the clamping piece with a screw driver to tension the
