GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-8
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.1.5 Replacing of tank cover

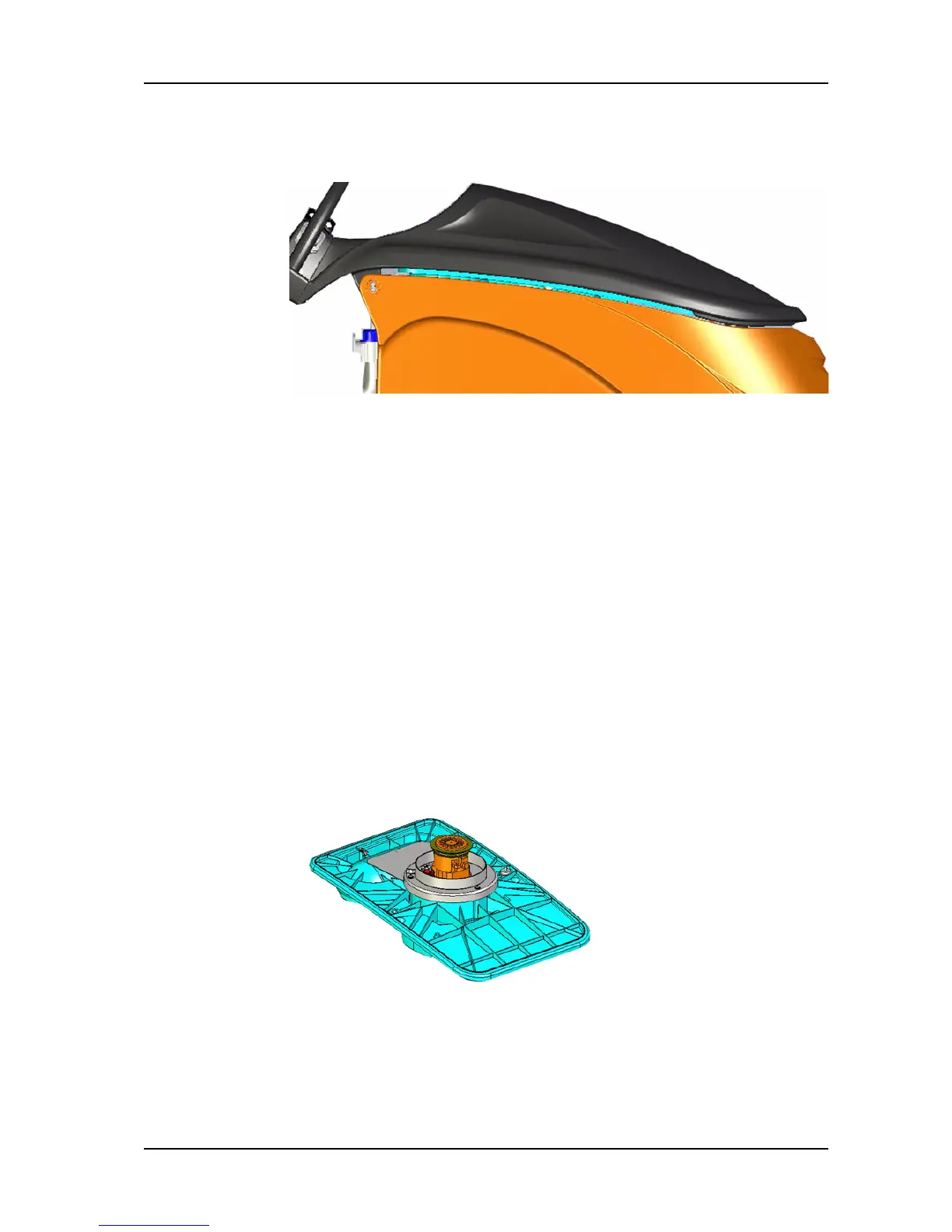

Picture 7: Tank cover
Remove
• Unscrew dashboard fixation.
• Remove dashboard and disconnect all cables.
• Remove the 3 screws of handle cover.
• Remove handle cover.
• Unplug hour counter wires from the hour counter or the cover.
• Remove screws (01/103) of throttle lever bracket.
• Thread out hall sensor ribbon cable and remove the complete
throttle lever system.
• Unscrew handle fixation to the tank cover (01/106 and 01/
107).
• Remove handle from tank cover.
• Unscrew and remove rear panel (09/103).
• Open the tank cover.
• Loosen the screw (01/107) on the tank cover on the support
side (RH).
• Loosen the screw on the other side (LH).
• Close the tank cover.
• Open the tank cover without base plate.
Picture 8: Base plate
• Disconnect vacuum motor cable at connection block (cable to
