GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-17
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm

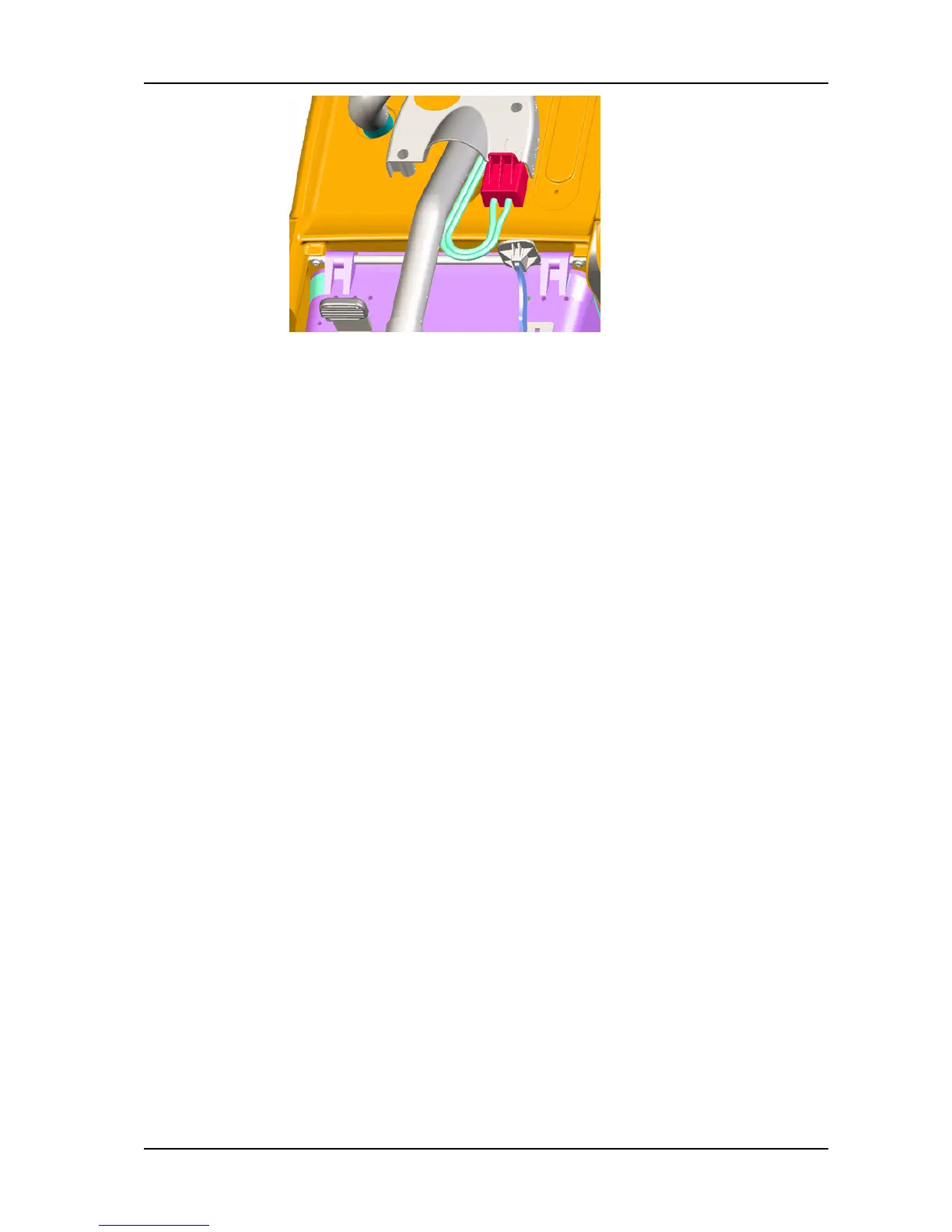

Picture 17: Water tank axle
• Remove water tank fixation screws (09/125).
• Remove water tank from axle.
• Remove the existing parts from the tank and place it on the
new one.
Mount
• Position the new water tank on the axle.
• Fix the water tank onto the axle with the two screws.
• Open the battery compartment.
• Thread in cables from the battery compartment.
• Close battery compartment.
• Assemble charger jack on the rear panel.
• Connect fresh water hose to the valve body (08/107).
• Assemble tank cover according to chapter REPLACING OF
TANK COVER.
• Adjust battery compartment lock.
• Lock the battery compartment on both sides with the screws
of the locking system.
Adjustment
Ensure that the screws of the lock can be properly positioned.
