GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-23
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
Remarks
For an EBU machine the next two steps are not necessary.
• Position the axle.
• Mount the retaining ring.
• Lift up the machine again.
• Open battery compartment.
• Thread in wires of traction unit into the battery compartment.
• Connect traction unit wires to power electronics.
• Look the battery compartment on both sides with the screws
of the locking system.
Adjustment

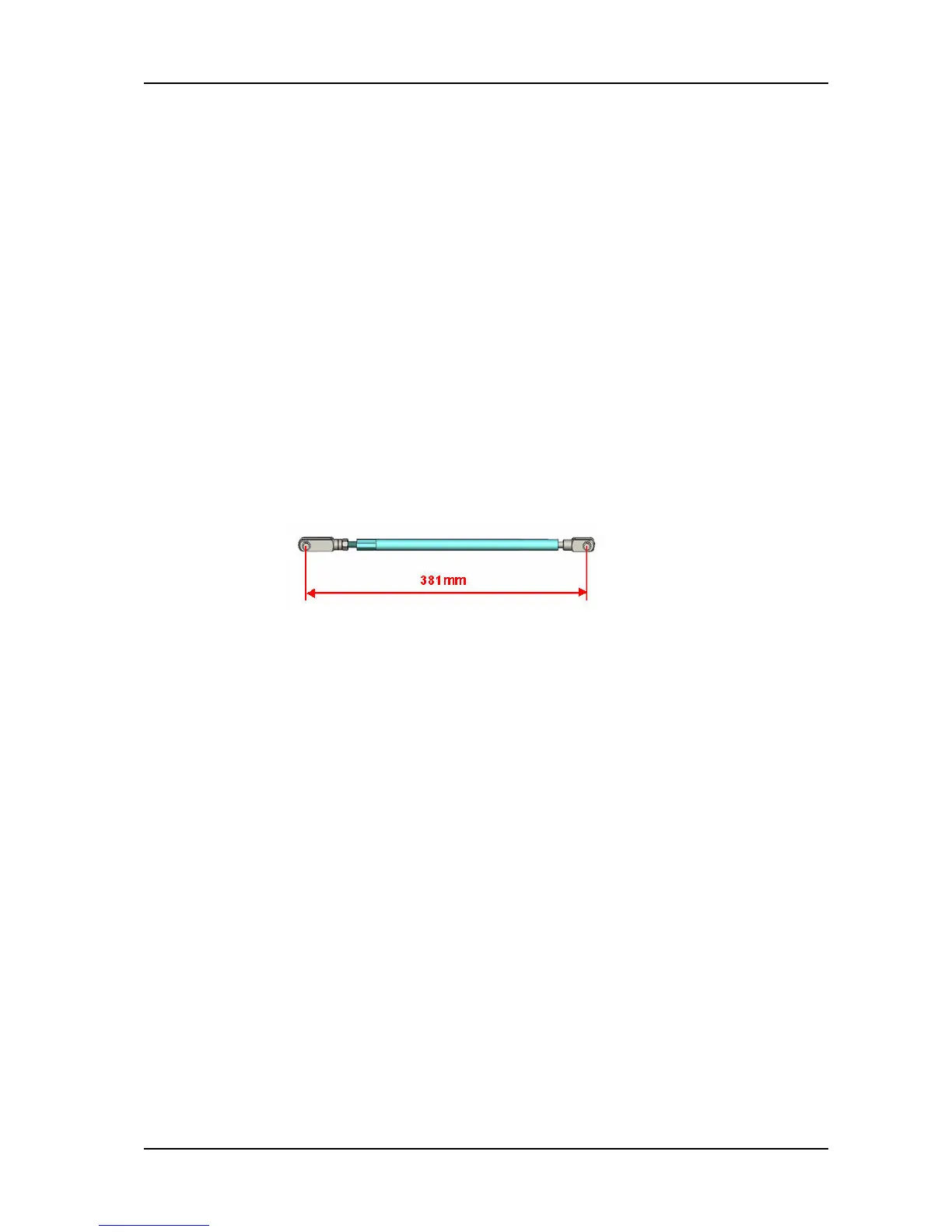

Make sure that the pusher rack (06/106) is adjusted to the distance
of 381mm.
Picture 23: Pusher rack
