16

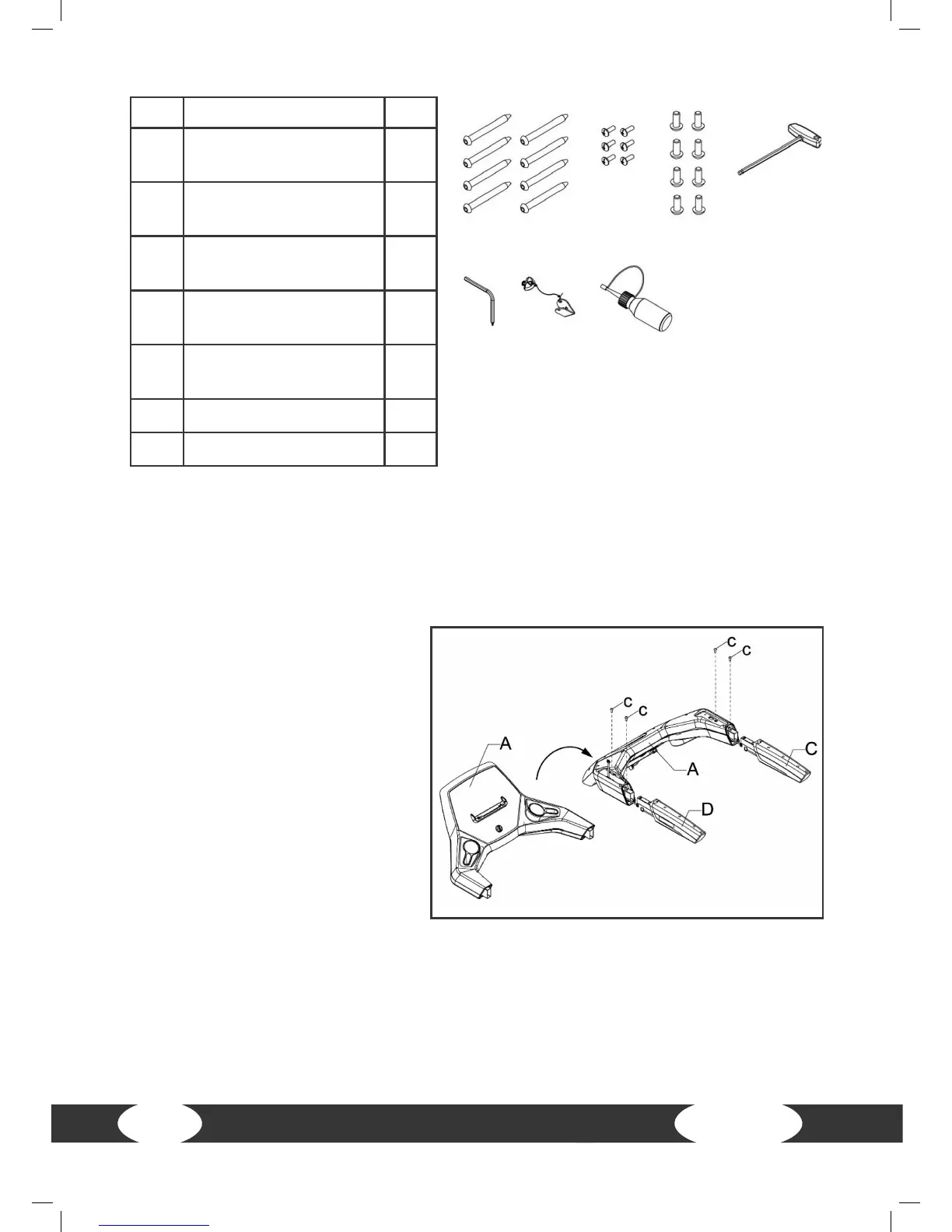

Part Description Qty.
a Hexagon screw
M8xP1.25x75
8
b Cross-headed screw
M5xP0.8x15
6
c Hexagon screw
M8xP1.25x20
8
d Screwdriver 8mm x
200mm
1
e Allen key 5mm x
70mm x 70mm
1
f
Safety key 1
g
Silicone 1
3.2 Assembly instructions
Before starting assembly, look carefully through the individual assembly steps shown
and assemble the equipment in the order indicated.
Step 1: Assembly of the handrails
Turn the console (A) and connect
the control cables of the left (C)
and right (D) handrails with the
cables from the console (A). The
logo sticker must show outwards.
After you have assembled the
handrails on the console, mount
the parts with four screws (c).
a b c d
e f g
