Taylor 430 Service Manual

37
Model 430
Parts
150225

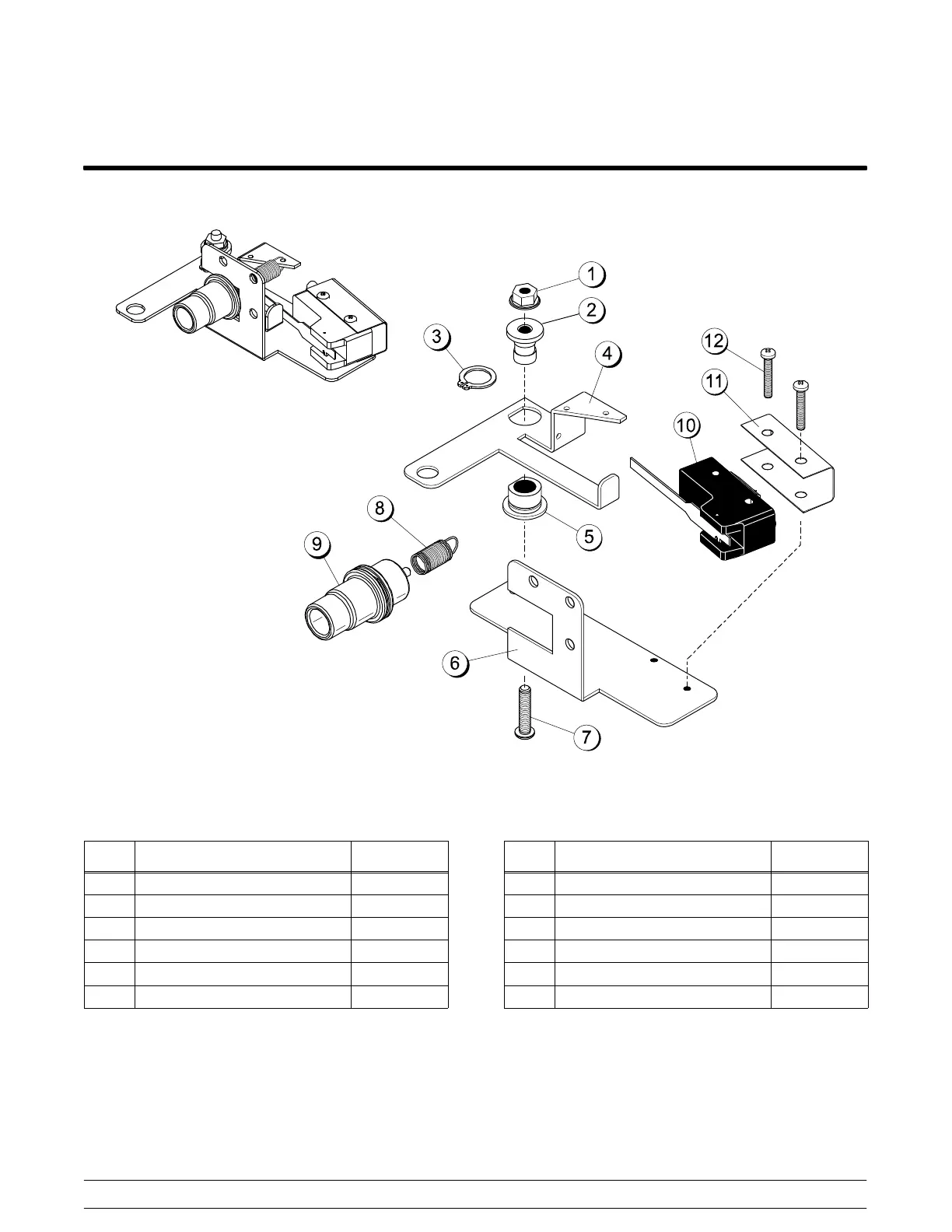

Torque Switch Assembly (X50895−SER)
Figure 13
ITEM DESCRIPTION PART NO.
1 NUT−10−32 FLANGE LOCK 020983
2 BUSHING−PIVOT−TORQ ARM 049739
3 RING−RETAINING 049736
4 ARM−TORQUE CONTROL 051325
5 BUSHING−ARM−TORQUE 049737
6 BRACKET−TORQ CONTROL 050400
ITEM DESCRIPTION PART NO.
7 SCREW−10−32X1 SLTD 004455
8 SPRING−TORQUE*WHITE* 050901
9 BUSHING A.−TORQ CONTROL X50399−SER
10 SWITCH−LEVER−SPDT−1A 062022
11 INSULATOR−ARMITE−4 HOLE 012992
12 SCREW−6−32X7/8 PHIL PAN 042514
