Taylor 430 - Draw Switch Assembly Exploded View

36
Parts
Model 430
140425

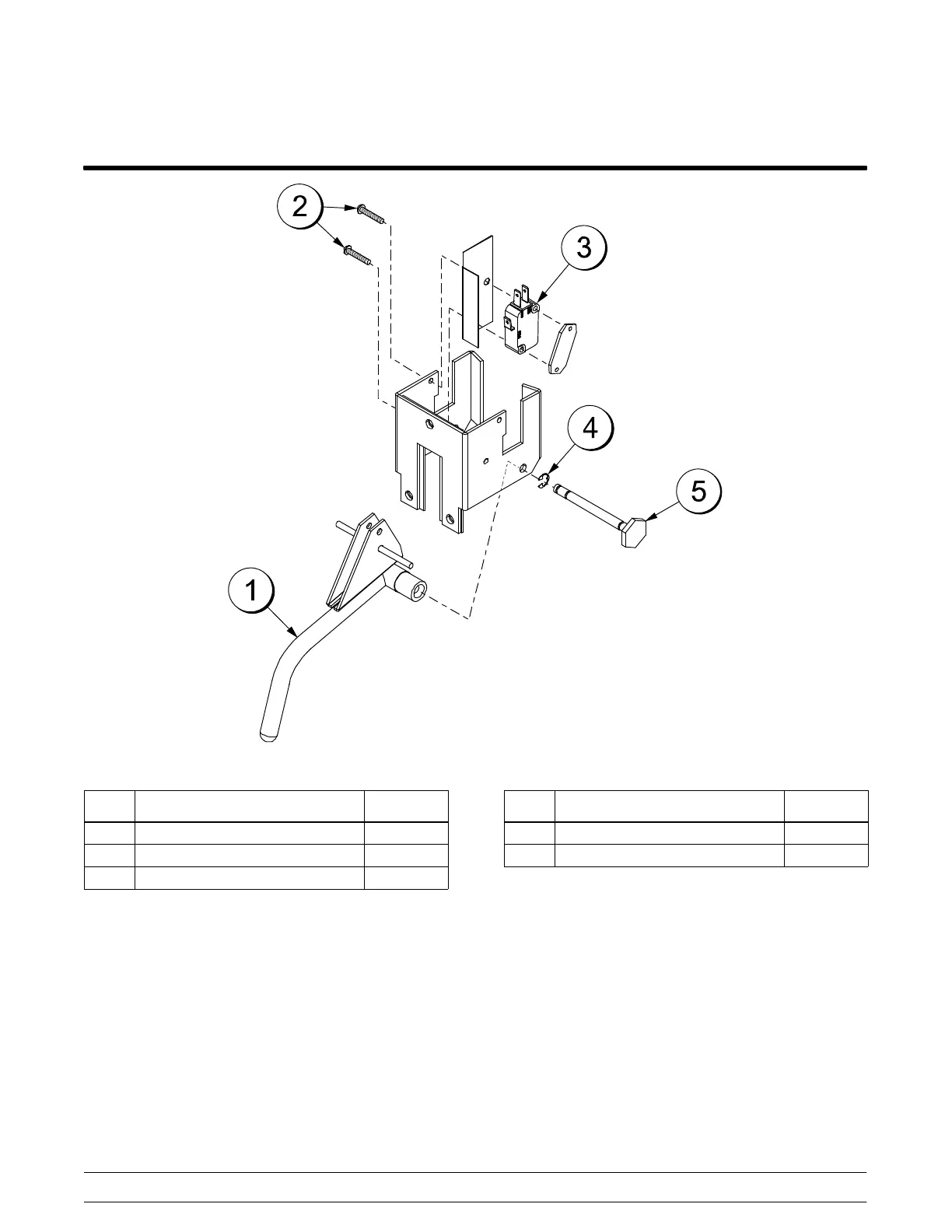

Draw Switch Assembly (X80870)
Figure 12
ITEM DESCRIPTION PART NO.
1 ARM A.−DRAW VALVE X50389
2 SCREW−4−40X5/8 SLTD ROUND 027219
3 SWITCH−LEVER−SPDT−10A 028889
ITEM DESCRIPTION PART NO.
4 E−RING 3/16 .335 OD 1500−18P 049178
5 PIN−PIVOT 015478
