Taylor 430 Service Manual

35
Model 430
Parts
140425

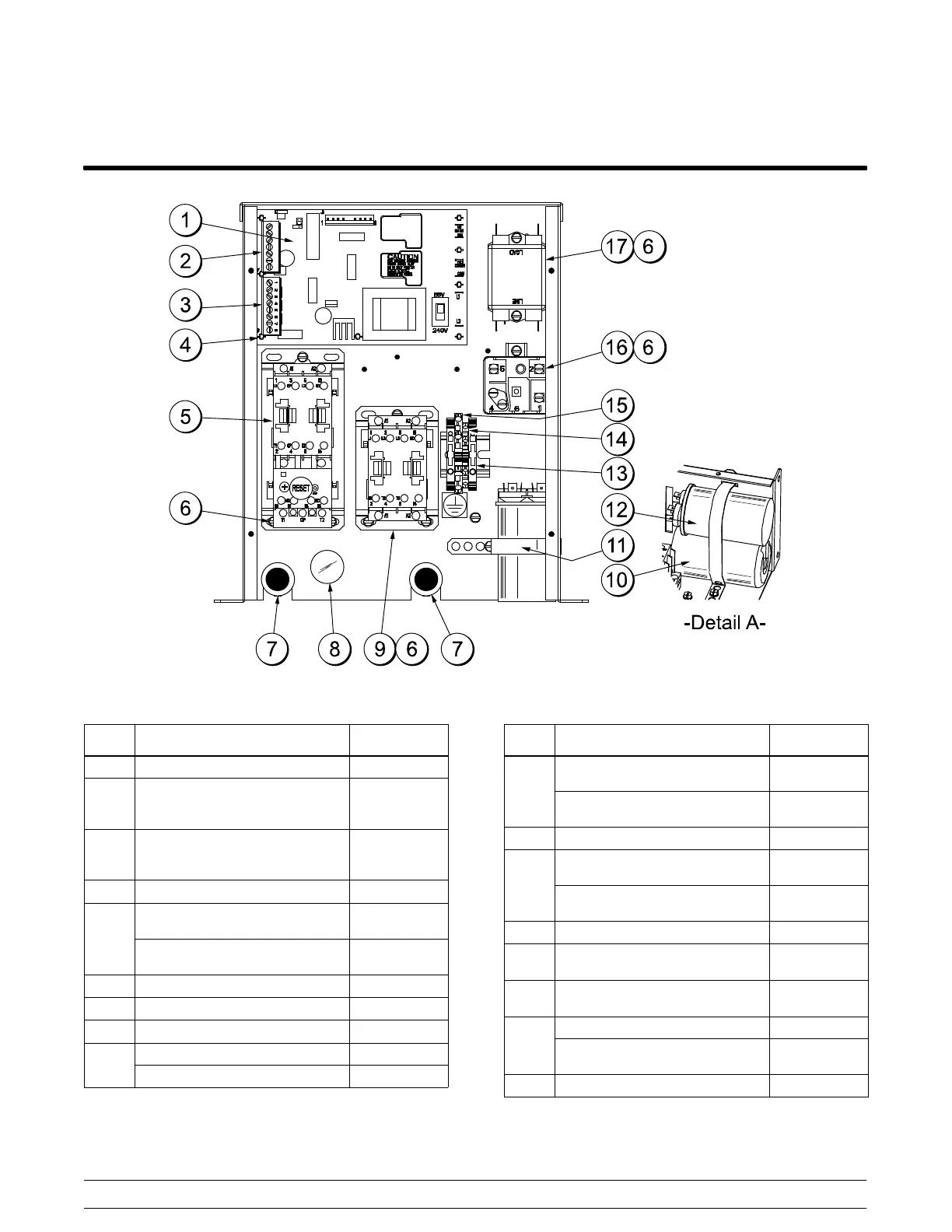

Control Box Exploded View (X50663-12/27)
Figure 11
ITEM DESCRIPTION PART NO.
1 PCB A.−CONTROL X50385−SER
2 BLOCK−TERMINAL−PLUG 7P
.2 SIP (PART OF HARNESS−
WIRE HI VOLT 050661)
040322−003
3 BLOCK−TERMINAL−PLUG 8P
.2 SIP (PART OF HARNESS−
WIRE *HIGH VOLT 050661)
040322−004
4 STANDOFF−NYLON−SNAP 053413
5
STARTER−1 PHASE 2.5 TO 4 A
(115V 60HZ 1PH)
066794−12H
STARTER−1 PH 1.6 TO 2.5 A
(208−230V 60HZ 1PH)
066794−27G
6 SCREW−8X1/4 SLTD HEX 009894
7 BUSHING−SPLIT 43/64ID X 7/8 027691
8 PLUG−HOLE 7/8 DIA. BLACK 010077
9
RELAY−3 POLE (115V) 066795−12
RELAY−3P−30A (208−240V) 066795−33
ITEM DESCRIPTION PART NO.
10
CAPACITOR−START
72−88UF/250V (115V)
039557−27
CAPACITOR−START
72−88UF/330V (208−230V)
039567
11 STRAP−CAPACITOR 7−11/32 037890
12
CAPACITOR−RUN
25UF/370VAC (115V)
023739
CAPACITOR−RUN 15UF/370V
(208−230V)
027087
13 PLATE−END TERMINAL BLK 080969
14 BLOCK−TERMINAL 4 POLE
GREEN (115V) (208−230v)
080967
15 BLOCK−TERMINAL 3 POLE
GREEN (115V)
080968
16
RELAY−START−COMPR (115V) 045432−12
RELAY−START−COMP
(208−230V)
048150
17 FILTER−CORCOM 2VR1 032567
