Taylor 430 Service Manual

34
Parts
Model 430
141121

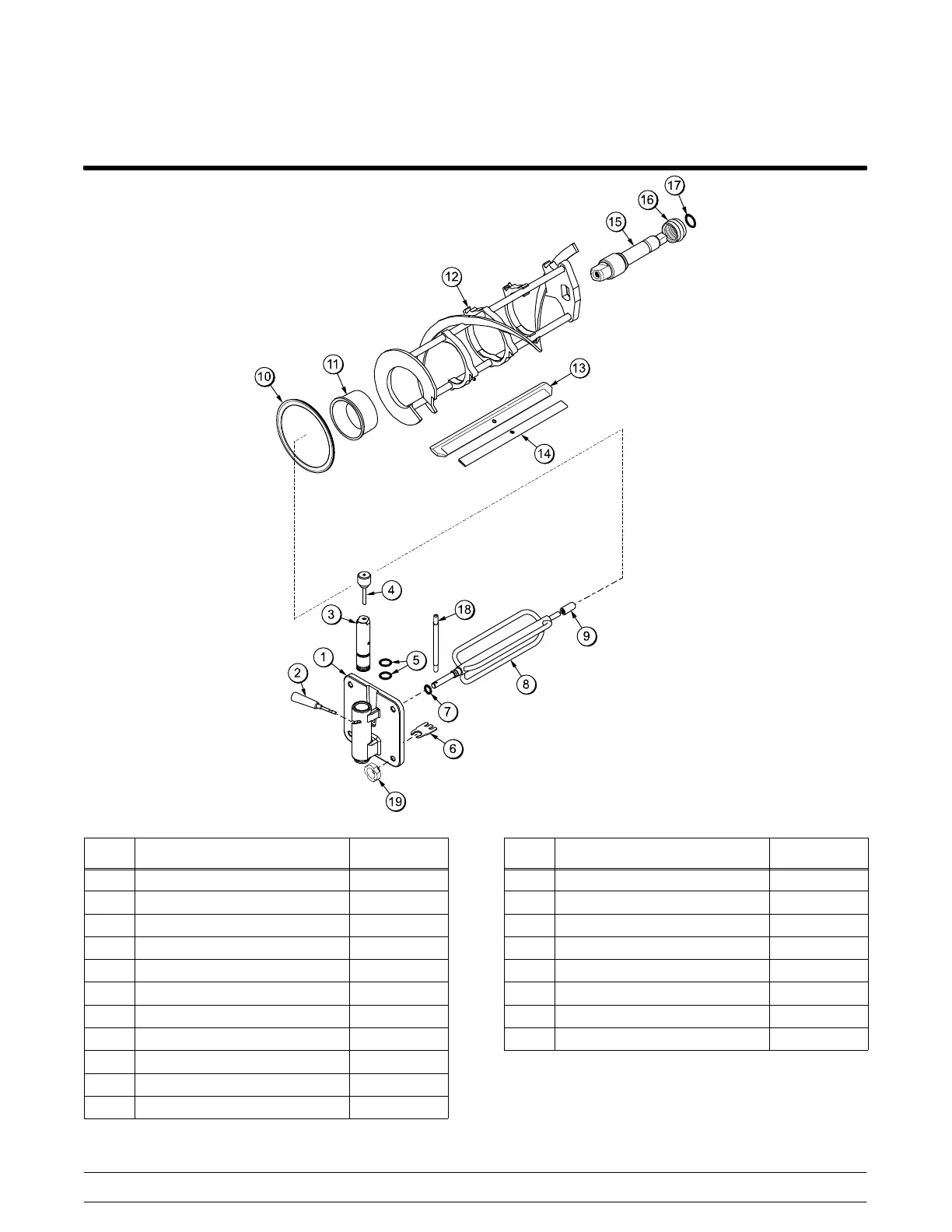

Door Assembly
Figure 10
ITEM DESCRIPTION PART NO.
1 DOOR A.−SLUSH−PARTIAL X83427SER3
2 HANDLE A.−DRAW−SLUSH X47384
3 VALVE−DRAW 047734
4 PIN A.−VALVE HANDLE X25929
5 O−RING−1 OD x .139 W 032504
6 BUSTER−ICE 047735
7 O−RING−.291 ID x .080 W 018550
8 TORQUE A. *430* X50382
9 BEARING−GUIDE 014496
10 GASKET−DOOR 014030
11 BEARING−FRONT 013116
ITEM DESCRIPTION PART NO.
12 BEATER A.−7 QT−1 PIN X49490
13 BLADE−SCRAPER−PLASTIC 046237
14 CLIP−SCRAPER BLADE 046238
15 SHAFT−BEATER 035418
16 SEAL−DRIVE SHAFT 032560
17 O−RING−7/8 OD x .139 W 025307
18 ARM−TORQUE 025660
19 NUT−STUD 029880
NOTE: UNITS EQUIPPED WITH PRIME PLUG DOORS
ORDER DOOR A.−SLUSH−PARTIAL X83427SER2,
PLUG−PRIME 050405 & O−RING 043758
NOT SHOWN
