OPERATOR PARTS IDENTIFICATION
Models 60 and 62
Operator Parts Identification
4

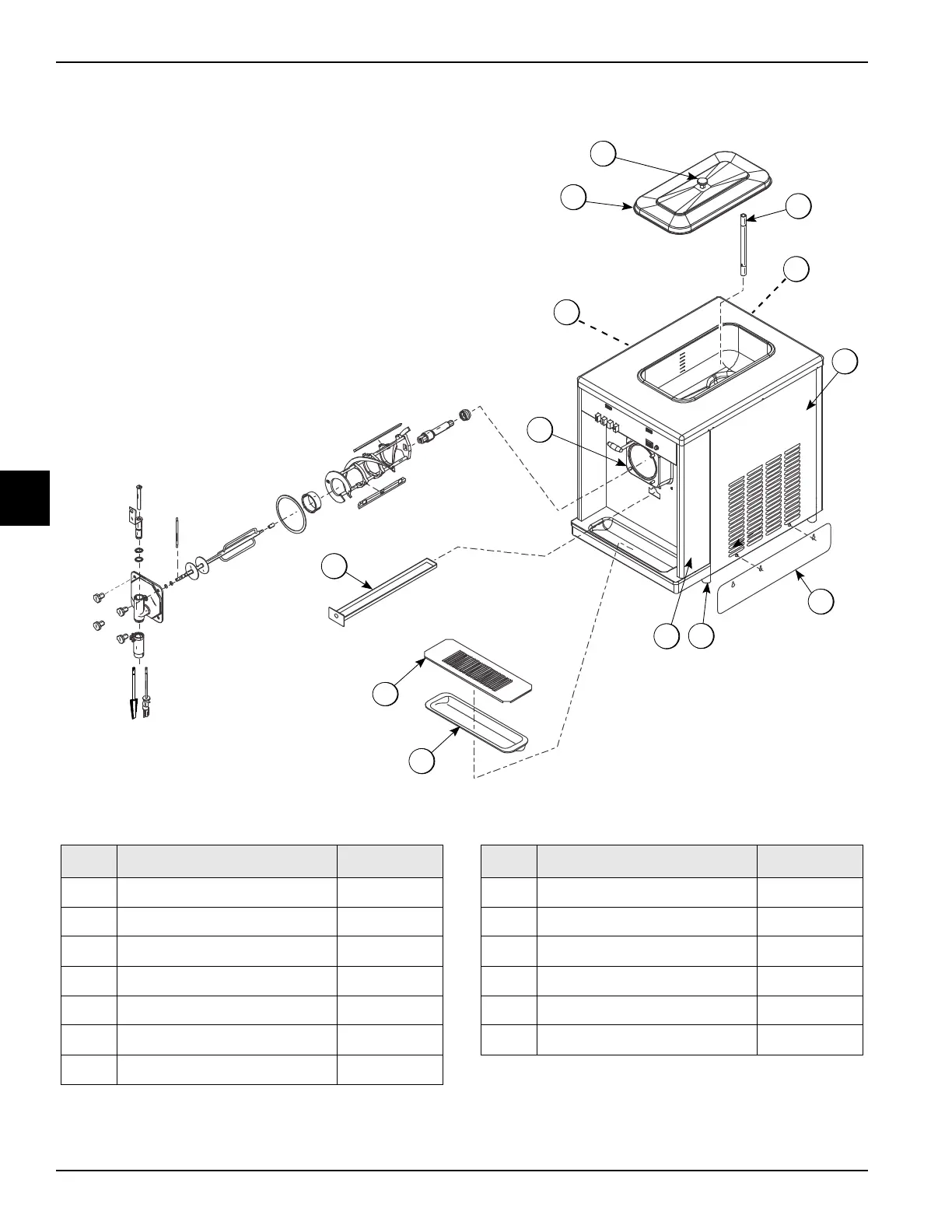

Model 62 Exploded View
Figure 4-2
1a
1
10
5
7
8
2
3
4
6
9
11
12
Item Description Part No.
1 Cover A.- Hopper- Std. X38458- SER
1a Knob-Mix Cover 025429
2 Tube- Feed- 1/4 Hole 015176-5
3 Panel-Rear 039021
4 Panel-Side-Right 085411
5 Skirt-Air Flow 049069
6 Leg-4” SS w/O-ring 013458
Item Description Part No.
7 Panel A.-Front X49996-1
8 Tray-Drip 16-7/8 L x 5-1/8 020157
9 Shield-Splash 022765
10 Pan-Drip 19-1/2 Long 035034
11 Stud-Nose Cone 5/16-18 x 3/8-1 011390
12 Panel A.-Side Left X85409
