Taylor C716 User Manual

37
Models C708 & C716 Operating Procedures
150421

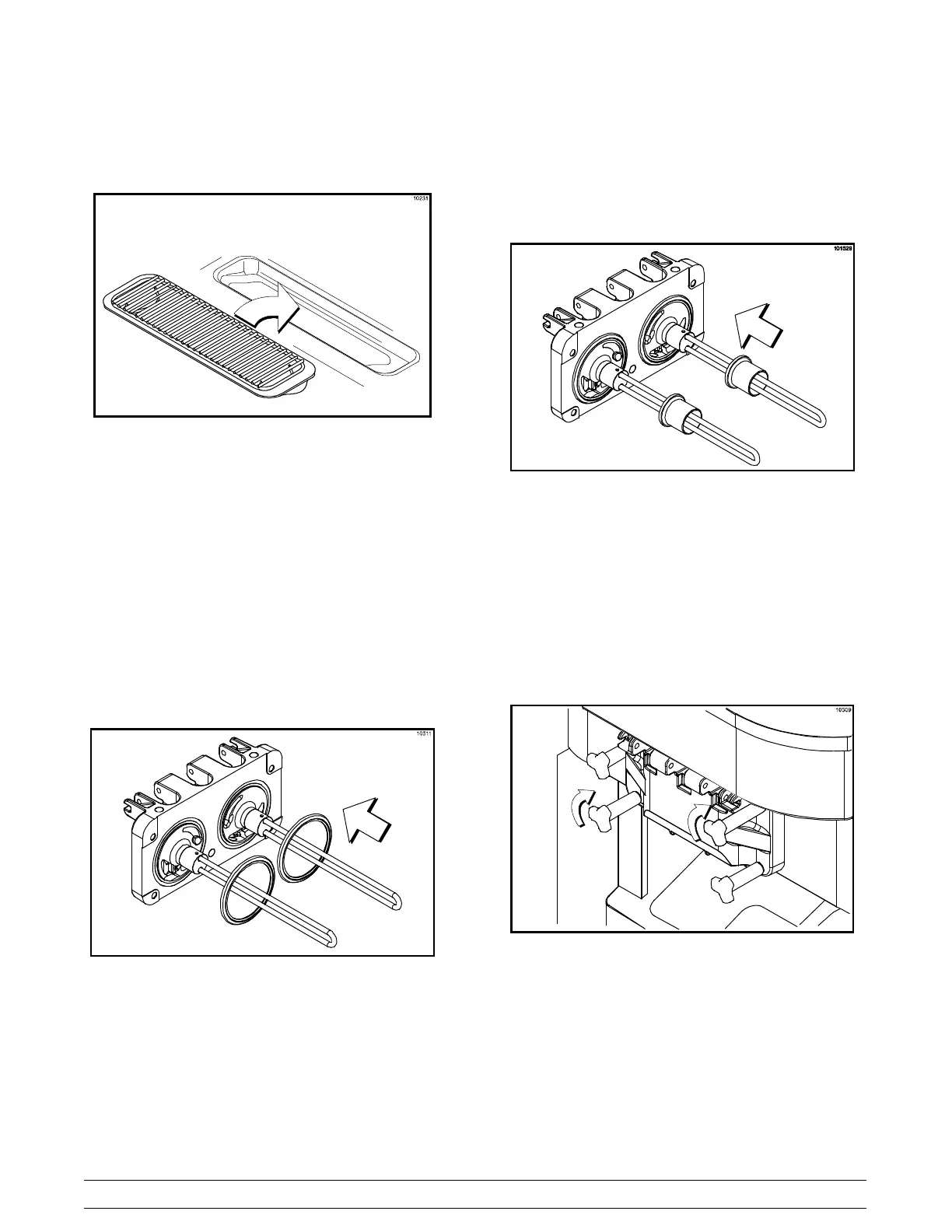

Step 9
Install the front drip tray and splash shield under the
door spout. (See Figure 35.)
Figure 26
Model C716 Freezer Door Assembly
Step 1
Before assembling the freezer door, check the
following for any nicks, cracks, or signs of wear:
door bearings, door gaskets, draw valves, o-rings,
and all sides of the door assembly, including the
inside of the draw valve bores. Replace any
damaged parts.
Step 2
Place the door gaskets into the grooves on the back
of the freezer door.
Figure 27
Step 3
Slide the front bearings over the baffle rods. The
flanged edges should be against the door. DO NOT
lubricate the gaskets or bearings.
Figure 28
Step 4
Insert the baffle rods through the beaters in the
freezing cylinders. With the door seated on the
freezer studs, install the handscrews, with the longer
ones on top. Tighten equally in a criss-cross pattern
to insure the door is snug.
Figure 29

Taylor C716 Specifications

General

Hopper Capacity	20 quarts (18.9 liters)
Separate Hopper Refrigeration (SHR)	Yes
Air Cooled	Yes
Freezing Cylinder	One
Mix Hopper	One
Electrical	208-230/60/1
Motor	1.5 HP
Indicator Lights	Mix Low
Refrigeration System	Air Cooled
