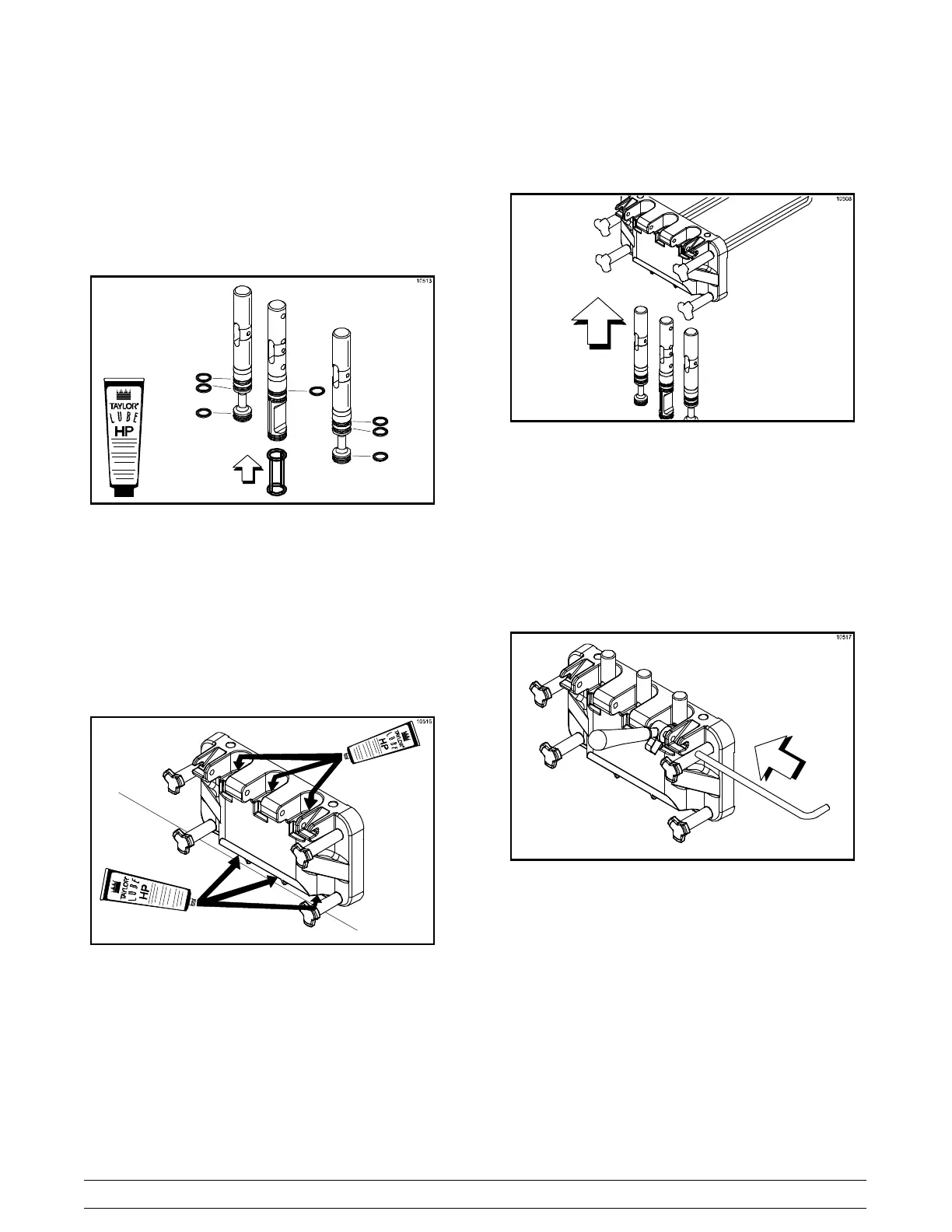

38
Models C708 & C716Operating Procedures
140121
Step 5
Slide the three o-rings into the grooves of each
standard draw valve. Slide the H-ring and o-ring into
the grooves of the center draw valve. Lubricate the
H-ring and o-rings.
Figure 30
Step 6
Lubricate the inside of the freezer door spouts, top
and bottom.
Figure 31
Step 7
Insert the draw valves from the bottom until the slot
in each draw valve comes into view.
Figure 32
Step 8
Position each draw handle with the adjustment
screw facing down. Slide the fork of each draw
handle into the slot of each draw valve, starting from
the right.
Step 9
Slide the pivot pin through the draw handles as the
handles are inserted into the draw valves.
Figure 33
Note: This freezer features adjustable draw handles
to provide portion control, giving a better consistent
quality to your product and controlling costs. The
draw handles should be adjusted to provide a flow
rate of 5 to 7-1/2 oz. (142 g. to 213 g.) of product by
weight per 10 seconds.
