Models C708 & C716 Operating Procedures
150421

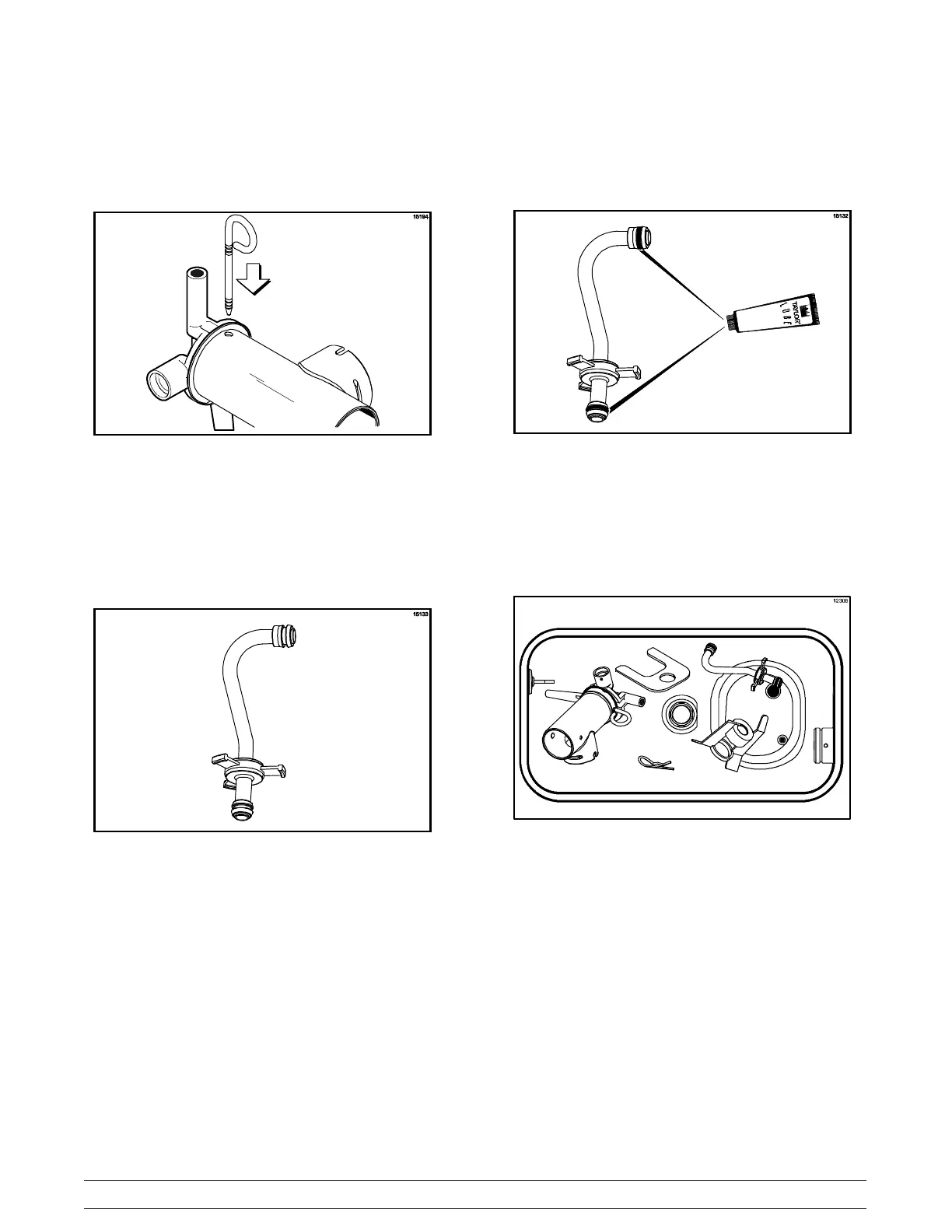

Step 9
Secure the pump parts in position by sliding the
retaining pin through the cross holes located at one
end of the pump cylinder. (See Figure 43.)
Figure 43
Note: The head of the retaining pin should located
at the top of the pump when installed.
Step 10
Assemble the feed tube assembly. Slide the check
ring into the groove of the feed tube.
(See Figure 44.)
Figure 44
Step 11
Install one red o-ring on each end of the mix feed
tube, and thoroughly lubricate. (See Figure 45.)
Figure 45
Step 12
Lay the pump assembly, pump clip, cotter pin, mix
feed tube assembly, and agitator in the bottom of
the mix hopper for sanitizing. (See Figure 46.)
Figure 46

Taylor C716 Specifications

General

Hopper Capacity	20 quarts (18.9 liters)
Separate Hopper Refrigeration (SHR)	Yes
Air Cooled	Yes
Freezing Cylinder	One
Mix Hopper	One
Electrical	208-230/60/1
Motor	1.5 HP
Indicator Lights	Mix Low
Refrigeration System	Air Cooled
