Model 390 Tim Hortons Operator Parts Identification
131009

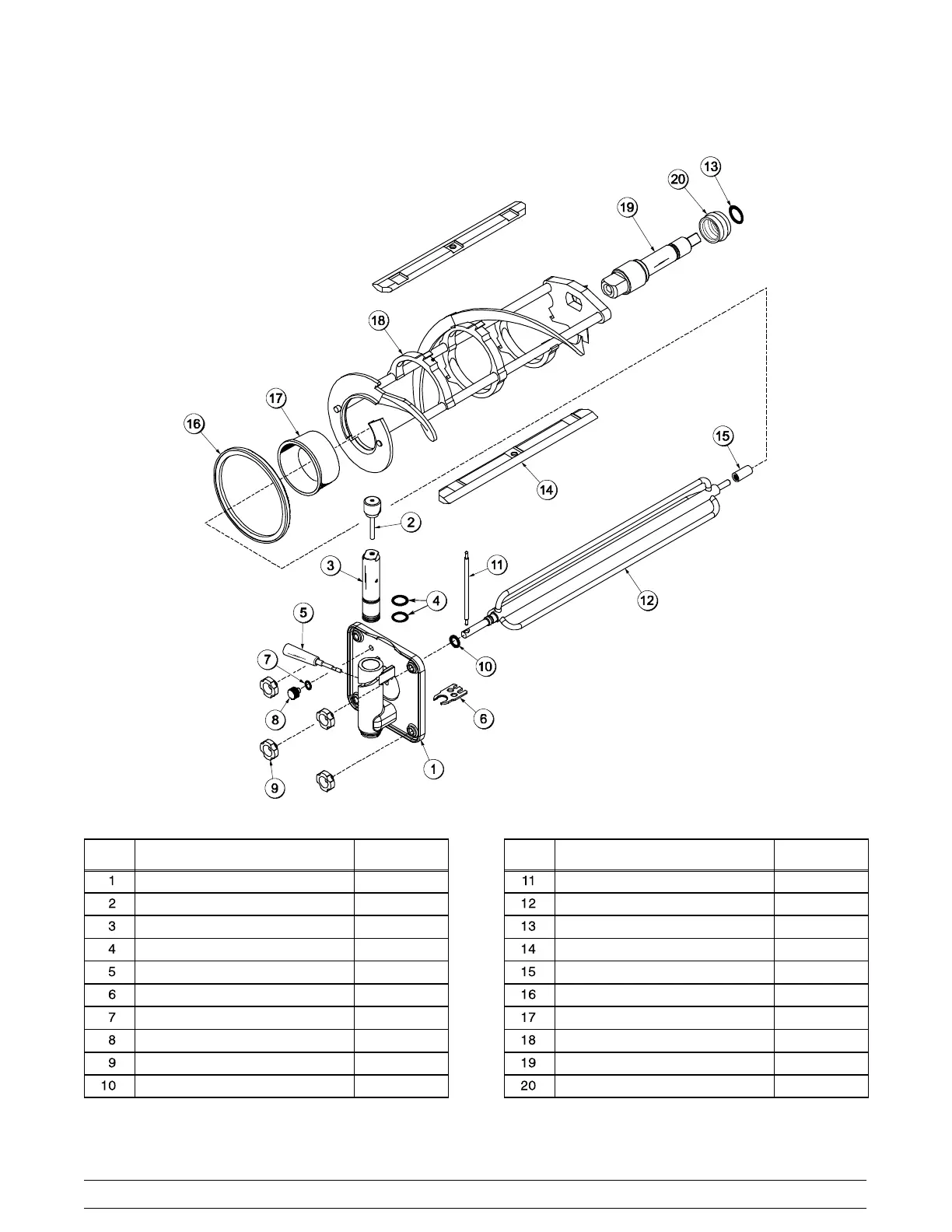

Beater Door Assembly
Figure 2
ITEM DESCRIPTION PART NO.
DOOR A.-PARTIAL PRIME X50403-SER
PIN A.-VALVE HANDLE X25929
VALVE-DRAW SLUSH 047734
O-RING-1"OD X .139W 032504
HANDLE A.-DRAW-SLUSH-BLK X47384
BUSTER-ICE 047735
O-RING-.563 OD X .070W 043758
PLUG-PRIME*STNLS 050405
NUT-STUD 029880
O-RING-.291 ID X .080W 018550
ITEM DESCRIPTION PART NO.
ARM-TORQUE 014500
TORQUE A. X14488
O-RING-7/8 OD X .139W 025307
BLADE-SCRAPER-PLASTIC 081094
BEARING-GUIDE 014496
GASKET-DOOR 5.200"ID 021662
BEARING-FRONT 013116
BEATER A.-7QT-1 PIN X46233
SHAFT-BEATER 035418
SEAL-DRIVE SHAFT 032560
