Model 390 Tim HortonsOperator Parts Identification
131009
Section 4 Operator Parts Identification

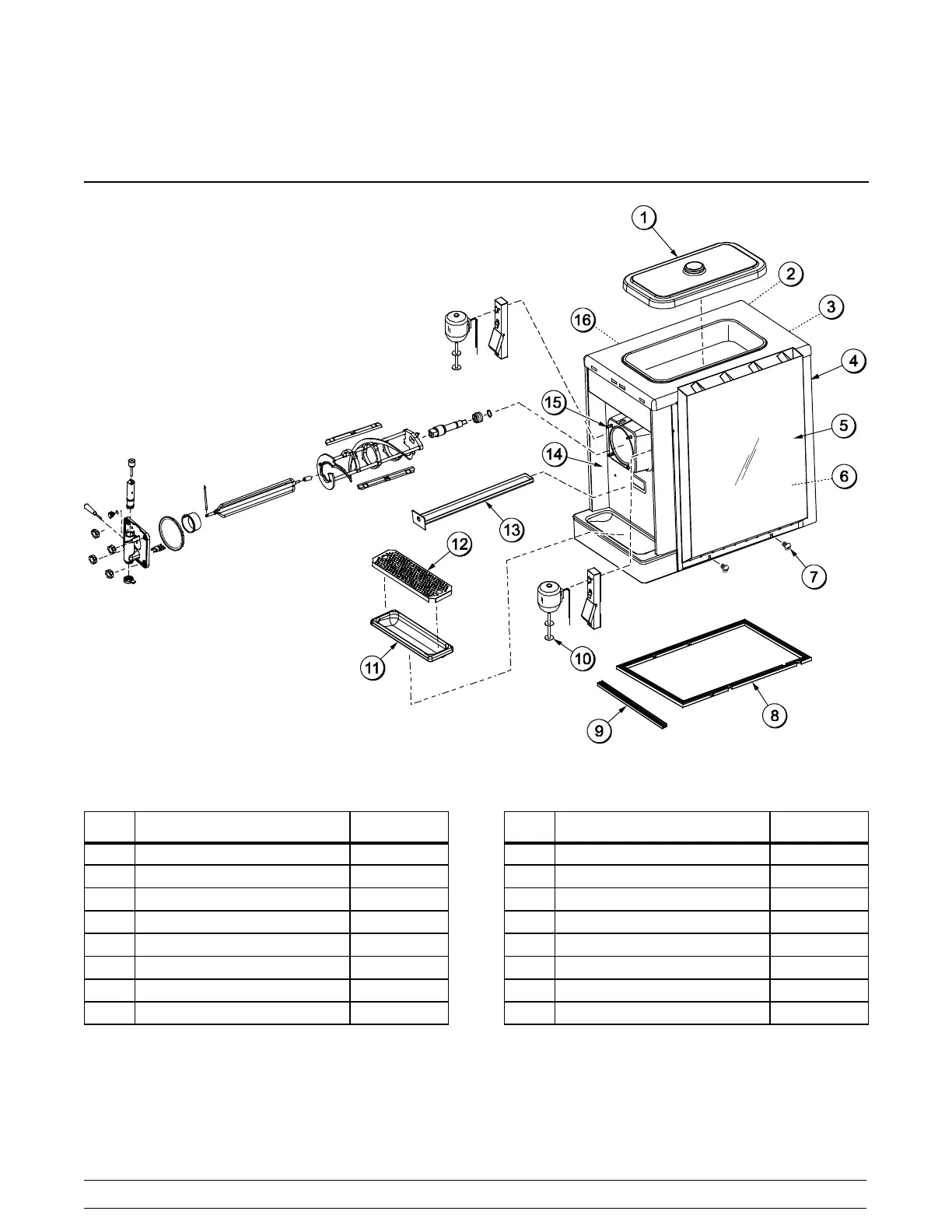

Figure 1
ITEM DESCRIPTION PART NO.
1 COVER A.-HOPPER X51152
2 TRIM-CORNER LEFT 047002
3 PANEL-REAR 047008
4 TRIM-CORNER RIGHT 047003
5 DUCT A.-AIR X53073-1
6 PANEL A.-RIGHT SIDE X68939
7 SCREW-1/4-20 x 3/8 011694
8 GASKET-BASE PAN 050947
ITEM DESCRIPTION PART NO.
9 GASKET-INSERT BASE PAN 051150
10 SPINNER A.-PANEL 2 BLADE X66023-27
11 TRAY-DRIP 14.8 BLACK 046275-BLA
12 SHIELD-SPLASH 068730
13 PAN-DRIP 19-1/2 LONG 035034
14 PANEL A.-FRONT 2 SPINNER X66589
15 STUD-NOSE CONE 013496
16 PANEL-SIDE-LEFT 068907
Spinner Motor
