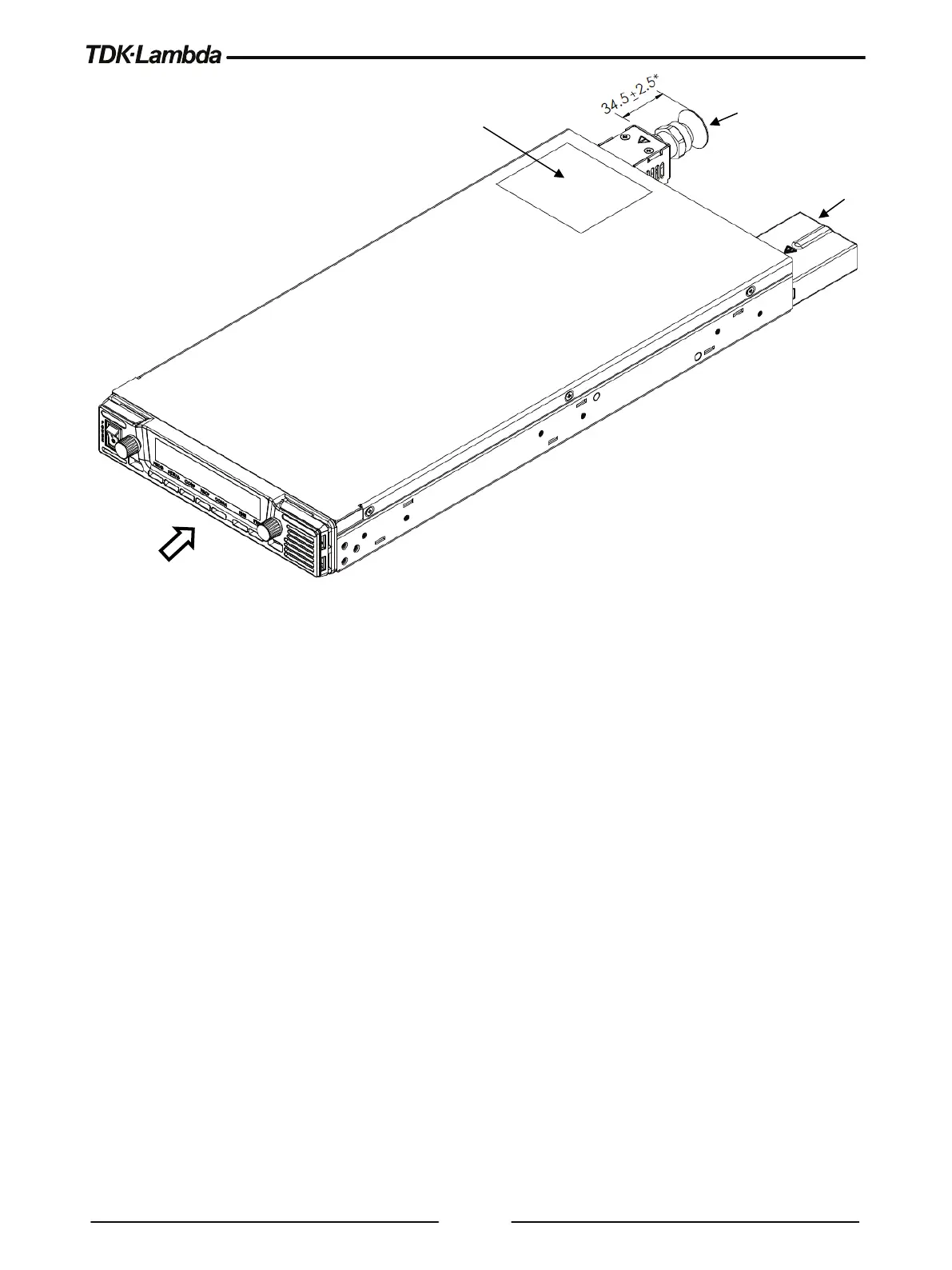

NOTES:
1. Model name and output rating are shown here according to the specifications.
2. AC Input connector (mating plug supplied with power supply).
3. Foot snaps are supplied in accessories kit.
4. Bus bars for 10V to 100V models, See Bus-bar detail. Connector for 150V to 600V models as shown (mating
plug supplied with power supply).
5. Isolated control and signals connector. Mating plug supplied with power supply.
6. AC cable strain relief, LAPP GROUP P/N: 5301 5420 (supplied with the power supply).
7. Output enclosure for models up to 100VDC output (supplied with the power supply).
8. AC input rating and safety approval symbols are shown here according to the specifications.
*. Strain Relief tolerance is dependent on the width of the wire used and tightening strength.
Dimensions are in mm.
