4.6 Location, Mounting and Cooling
This power supply is fan cooled. The air intake is at the front panel and the exhaust is at the rear
panel. Upon installation allow cooling air to reach the front panel ventilation inlets.
CAUTION
Allow minimum 10cm (4”) of unrestricted air space at the front and the rear of the unit. The power
supply should be used in an area where the ambient temperature does not exceed +50°C (Refer to
product Spec. for operating conditions).
VORSICHT
Halten Sie vor und hinter dem Gerät einen lichten Mindestabstand von 10 cm ein. Das Netzgerät
sollte nur in Arbeitsbereichen benutzt werden, in denen die Umgebungstemperatur +50 °C nicht
übersteigt (siehe Produktspezifikationen für Betriebsbedingungen).
4.6.1 Foot Snaps Assembly
In the accessories kit, 4 foot snaps and 4 push rivets are supplied for the client's usage. The usage is
optional. Assembly according to Figure 4-13.

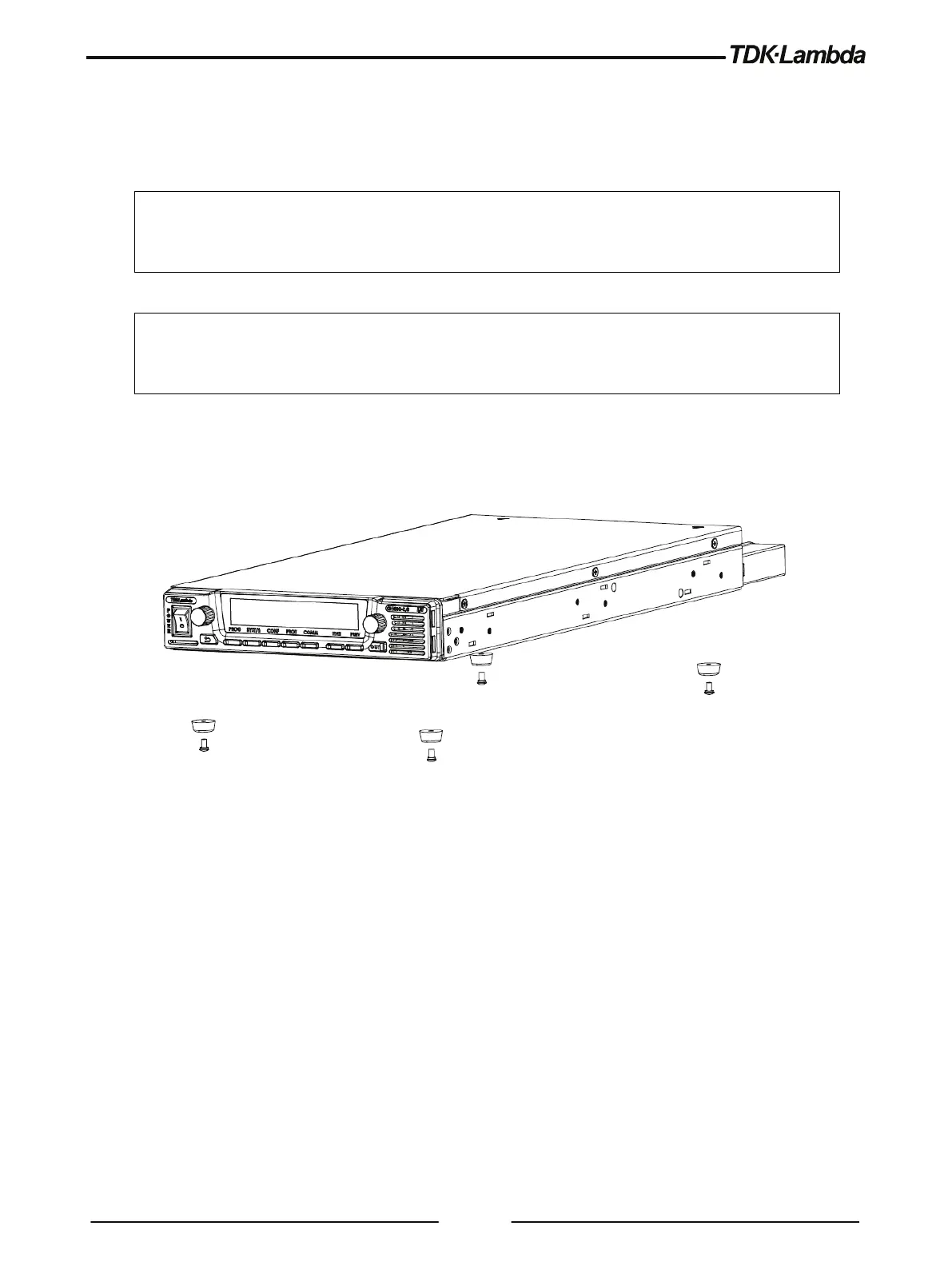

Figure 4-13: Foot snaps assembly
