Rack Mounting Option
To install a GH1.5kW unit or two units side-by-side in to a standard 19" Rack in 1U (1.75") height,
order option kit P/N: GH/RM. The rack mount kit allows the units to be zero stacked for maximum
system flexibility and power density without increasing the 1U height of the units.
4.4.1
GH/RM Option Kit
• Right and left corners
• Connection bracket(used only for dual unit installation)
• Blank panel(used only for single unit installation)
• Right and left fixing brackets
• Handles, 2 Pcs
• Flat head screws M3X6, 6Pcs
• Flat head screws M3X8, 6Pcs
• Flat head screws M3X10, 3Pcs
• Flat head screws M4X8, 4Pcs
• SEMS screws M3X8, 5Pcs
• HEX. Nut M3, 3Pcs
• Flat washer M3, 3Pcs
• Spring washer M3, 3Pcs
4.4.2
Single Unit Installation
In a single unit rack mount assembly, the unit can be assembled on the left half side or on the right half
side of the assembly. The assembly below describes installation of a GH unit on the right half side and
a blank panel on the left half side.

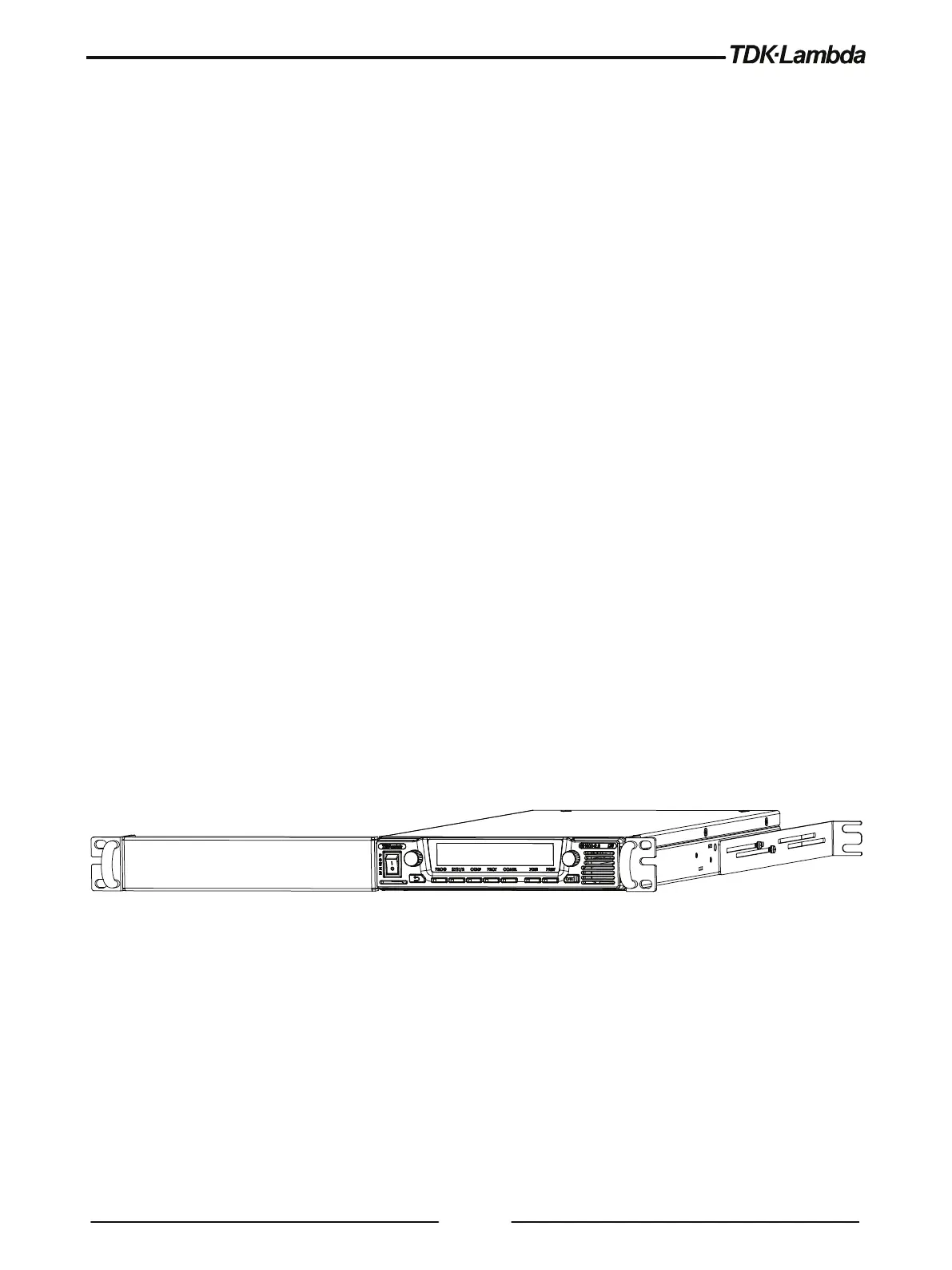

Figure 4-1: Single unit installation
