41

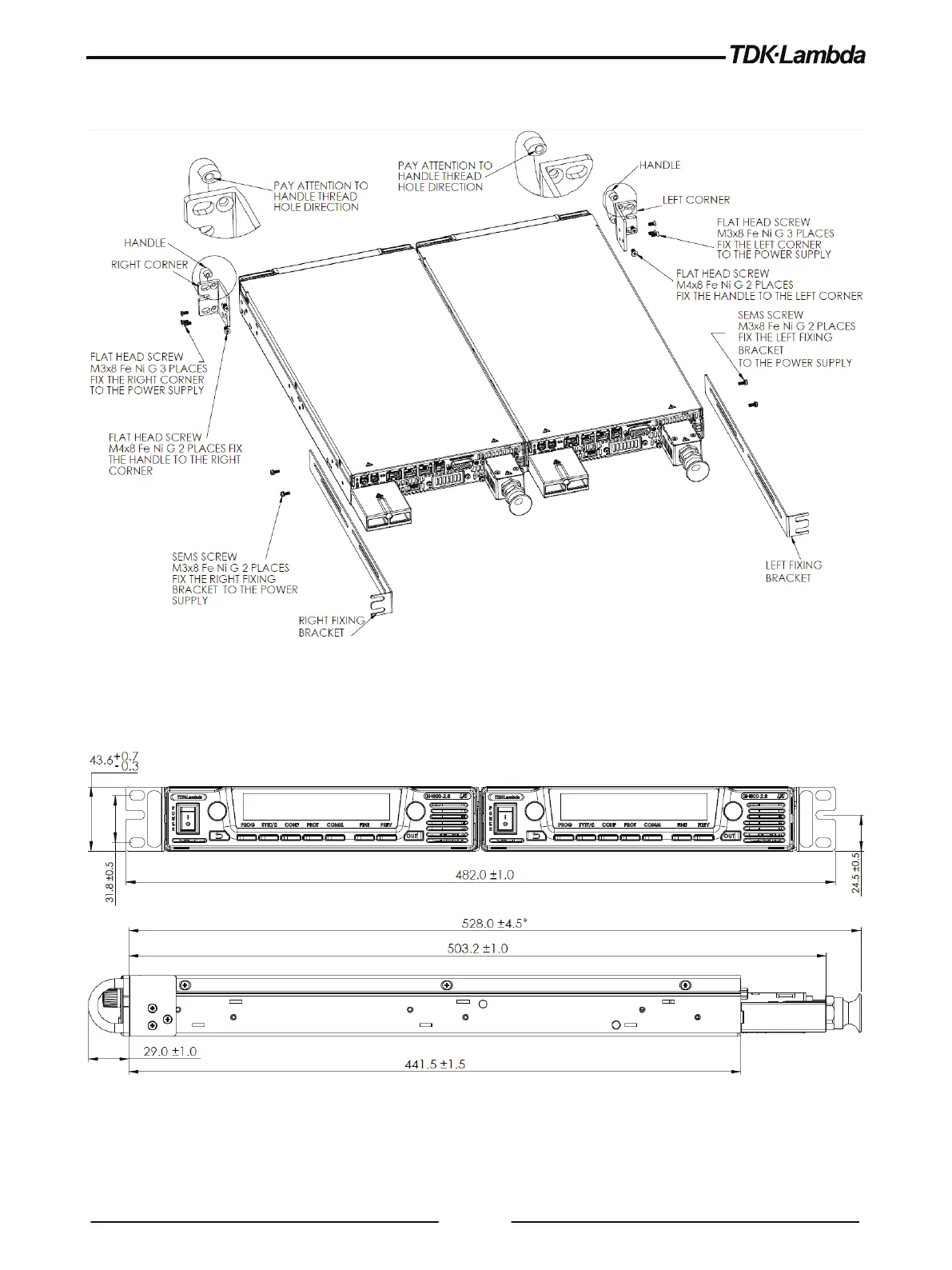

7. Fix the left and right corners and handles to the front side of the units, and the left and right fixing
brackets to the side of the units as shown in Figure 4-10.
Figure 4-10: Assembly completion
4.4.4 GH\RM Rack Mounting Outline Drawings
Figure 4-11: GH/RM Rack mount outline
