4.5 Benchtop Stacking Option
A benchtop zero stacking kit for benchtop applications is available for two units, three units and four
units. P/N: GH/MO-2U, GH/MO-3U, GH/MO-4U.
4.5.1 GH/MO Option Kit
GH/MO-2U:
• 2U plates, 2Pcs
• SEMS screw M3X8, 4Pcs
GH/MO-3U:
• 3U plates, 2Pcs
• SEMS screw M3X8, 6Pcs
GH/MO-4U:
• 4U plates, 2Pcs
• SEMS screw M3X8, 8Pcs
4.5.2 GH/MO Installation
General note: All screws tightening torque is 4.7-5.7 Lbf-inch (0.53-0.64Nm).
Stack the units on each other and fix the connection plates as shown in Figure 4-12.

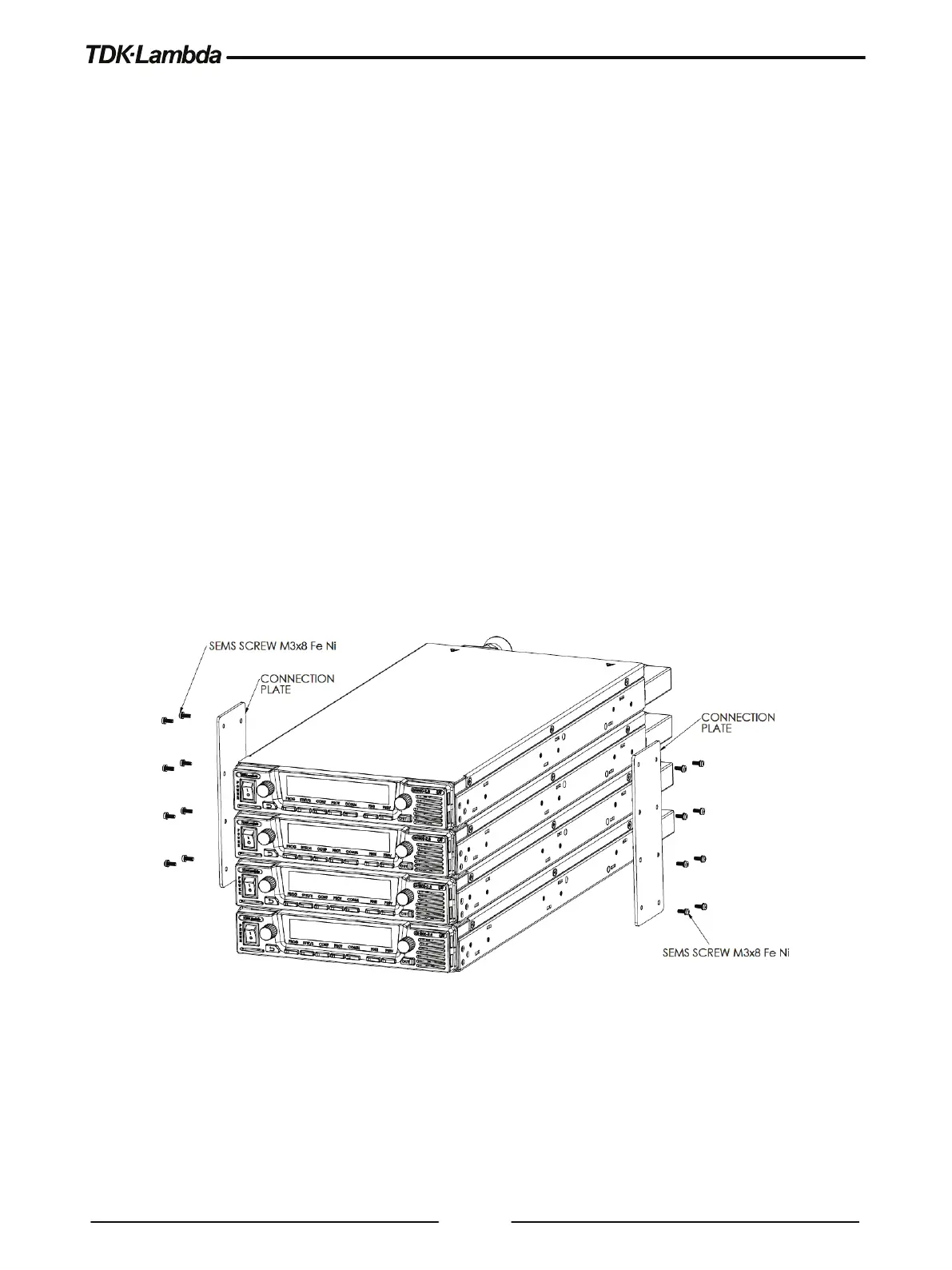

Figure 4-12: GH/MO Assembly
