General note: All M3 screws tightening torque is 4.7-5.7 Lbf-inch (0.53-0.64Nm).
All M4 screws tightening torque is 12.5-13.5 Lbf-inch (1.41-1.52Nm).

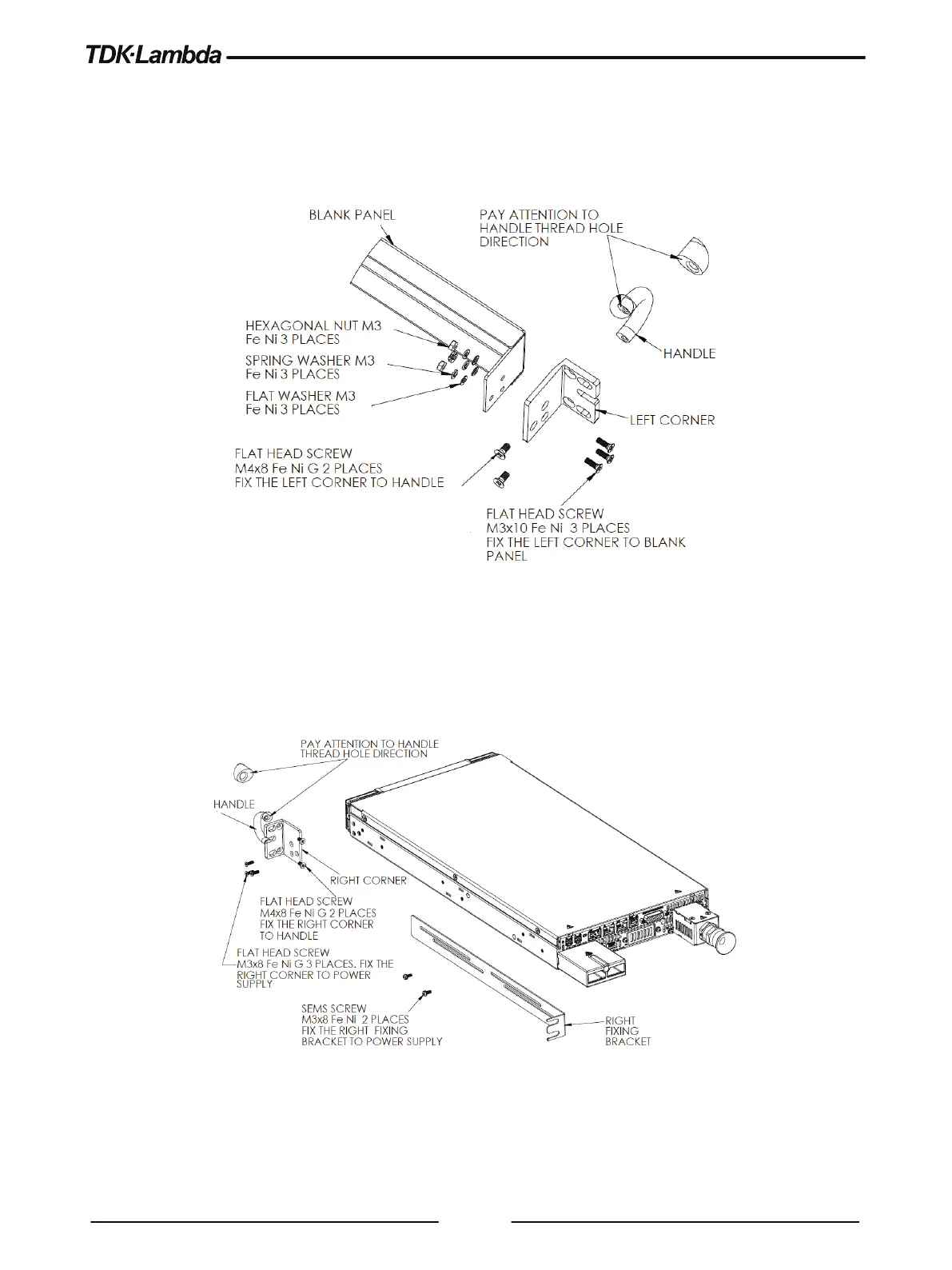

1. Fix handle to left corner, then fix the left corner to the blank panel as shown in Figure 4-2.
Figure 4-2: Left corner assembly to Blank Panel
2. Fix handle to the right corner, then fix the right corner to the power supply as shown in Figure 4-3.
3. Fix the right fixing bracket to the power supply as shown in Figure 4-3. Adjust the location of the
fixing bracket to fit the depth of the cabinet.
Figure 4-3: Right corner and fixing bracket assembly to power supply
