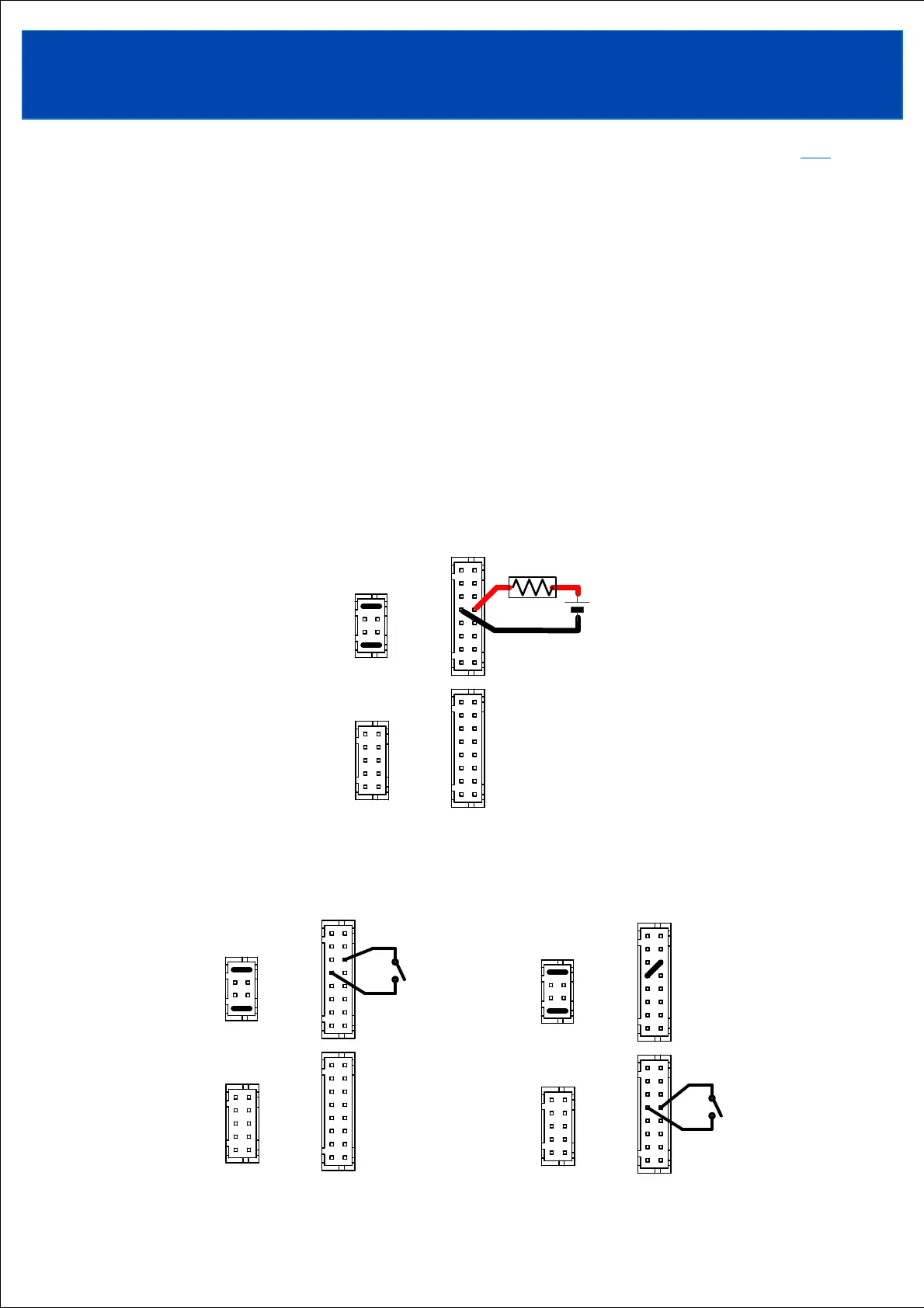

3-2-2. Remote ON/OFF control function
Power output can be controlled ON/OFF using +R terminal (pin No. 10), -R terminal (pin No. 9), and AG terminal
(pin No. 11 or pin No. 12) of CN41 or CN42. .
The following three types of ON/OFF control are possible.
１）Power output by applying external voltage
Connect an external voltage source and limiting resistor between +R terminal (pin No. 10) and -R
terminal (pin No. 9).
(Use twisted or shielded wires for the ON/OFF control wires.)
2）Power output when short-circuited between terminals
Connect a switch between -R terminal (pin No. 9) and AG terminal (pin No. 11 or pin No. 12).
(Use twisted or shielded wires for the ON/OFF control wires.)
3）Power output when terminals are open
Short-connect between -R terminal (pin No. 9) and AG terminal (pin No. 11 or pin No. 12).
Connect a switch between +R terminal (pin No. 10) and -R terminal (pin No. 9).
(Use twisted or shielded wires for the ON/OFF control wires.)
TOPTOP
1) Power output by applying external voltage
2) Power output when short-circuited between terminals
3) Power output when terminals are open
1
2
3
4
5
6
7
8
CN61
CN42
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
CN71
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CN41
External
voltage
Limiting
resistor
1
2
3
4
5
6
7
8
CN61
CN42
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
CN71
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CN41
1
2
3
4
5
6
7
8
CN61
CN42
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
CN71
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CN41
SW
SW
