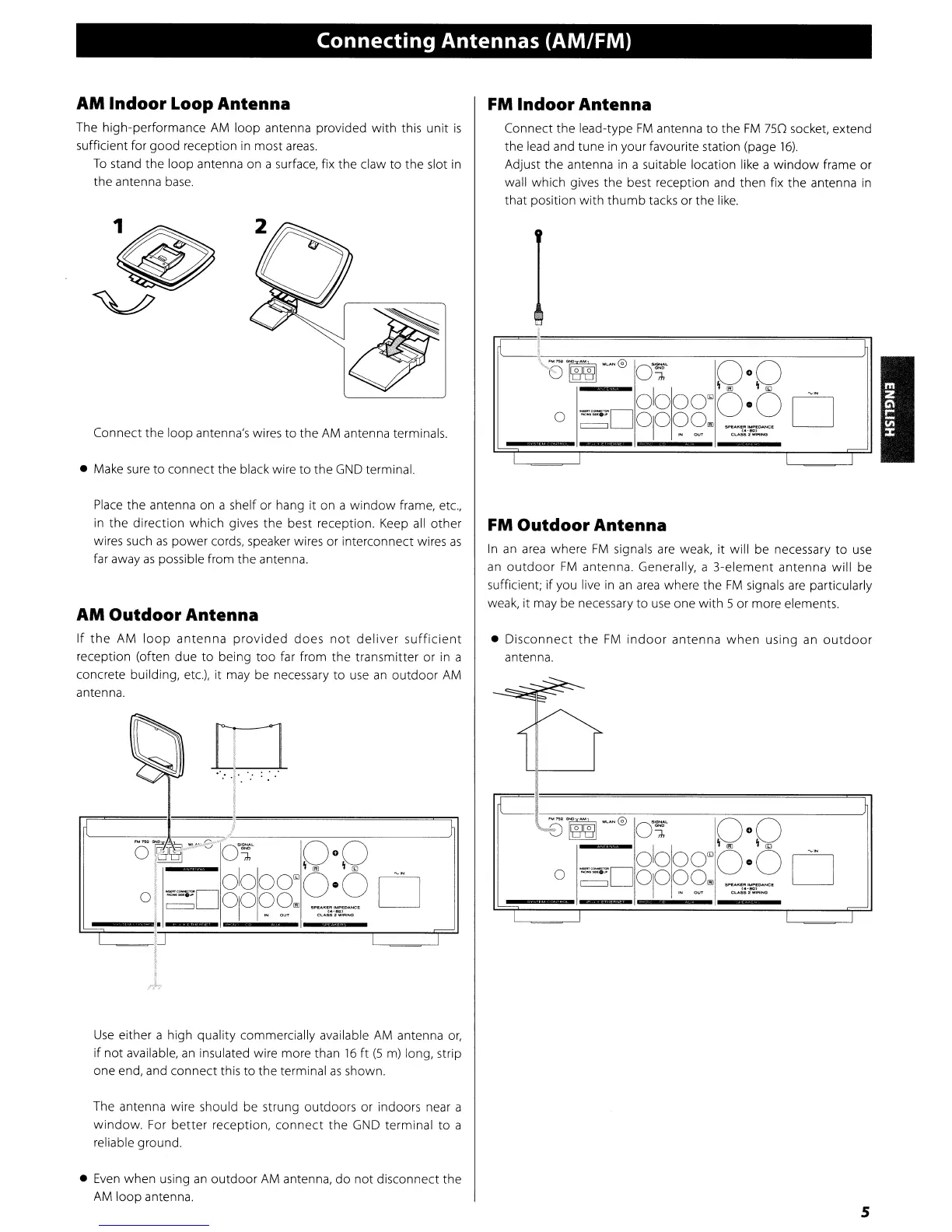

Connecting Antennas (AM/FM)
AM
Indoor
Loop Antenna
The high-performance
AM
loop antenna provided with this unit
is
sufficient for good reception
in
most
areas.
To
stand the loop antenna on a surface, fix the claw to the slot in
the antenna
base.
Connect the loop antenna's wires to the
AM
antenna terminals.
• Make
sure
to connect the black wire to the
GND
terminal.
Place
the antenna on a shelf or hang it on a
window
frame,
etc.,
in the direction which gives the best reception. Keep
all
other
wires such
as
power cords, speaker wires or interconnect wires
as
far away
as
possible from the antenna.
AM
Outdoor
Antenna
If
the
AM
loop
antenna
provided
does
not
deliver
sufficient
reception (often due to being too far from the transmitter or in a
concrete building,
etc.),
it may be necessary to
use
an
outdoor
AM
antenna.
t
!
~
···r
.:
...
}
o
1!I@';~-OS:'
0°0
I
\
[OJ
\
'"
0
1
000'"
0·0
~.
D
o
~DOIO?Q'"'
__
';0"
--..ct:
~.-
.
I I I
Use
either a high quality commercially available
AM
antenna
or,
if
not available,
an
insulated wire more than
16
ft
(5
m)
long, strip
one end, and connect this to the terminal
as
shown.
The antenna wire should be strung outdoors or indoors near a
window.
For
better reception, connect the
GND
terminal to a
reliable ground.
•
Even
when using
an
outdoor
AM
antenna,
do
not disconnect the
AM
loop antenna.
FM
Indoor
Antenna
Connect the lead-type
FM
antenna to the
FM
750 socket, extend
the
lead
and tune
in
your favourite station (page
16).
Adjust the antenna
in
a suitable location like a
window
frame or
wall which gives the best reception and then fix the antenna
in
that position with
thumb
tacks or the
like.
I
I
'--------!
'8D,,··0 -,
0°0
"18J18J
O~
01000'"
\
[OJ
\
'"
0·0
D
0
~D
°IO?Q~
""u.I<I!"_""""'1!
ev.ssa_1HO
I I I I
FM
Outdoor
Antenna
In
an
area
where
FM
signals
are
weak,
it
will be necessary to
use
an
outdoor
FM
antenna. Generally, a 3-element antenna will be
sufficient;
if
you live
in
an
area
where the
FM
signals
are
particularly
weak,
it
may be necessary to
use
one with 5 or more elements.
•
Disconnect
the
FM
indoor
antenna
when
using
an
outdoor
antenna.
....:::::::-
'"'-'"
F'
1
II
'-3T~~IM0
O~'
OoQ
0
1
000'"
0·0
D
0
~D
°IO?Qm
~-""""'I!
I I I
5
