Teac LCDV3255HD - Unit Front Panel Features; Front Panel Components

8
View of Unit
1. HDMI 1, HDMI 2 and HDMI 3 Input Jacks
Connect the HDMI signal source.
2. UPGRADE PORT
Connect the USB device only for upgrading
the TV software.
3. VGA IN Jack
Connect the VGA signal source in VGA mode.
4. COAXIAL OUTPUT Jack
Output the coaxial digital audio signal.
5. Y/Pb/Pr (Component) and L/R audio Input
Jacks
Connect the Y/Pb/Pr (Component) signal
source in Component mode.
6. AV Output Jacks
Connect to output the audio/video signals.
7. S-VIDEO Input Jack
Connect Composite signal source in S-Video
mode.
8. AV2 and L/R Audio Input Jacks
Connect Composite signal source in
Composite 2 mode.
9. AV1 and L/R Audio Input Jacks
Connect AV1 signal source in Composite 1
mode. AV1 and S-Video share L/R audio jacks.
10. VGA AUDIO IN Jack
Connect the audio signal in VGA mode.
11. TV antenna Input Jack
Connect the external TV antenna signal
source.
12. Power In Jack
Connect the power supply.

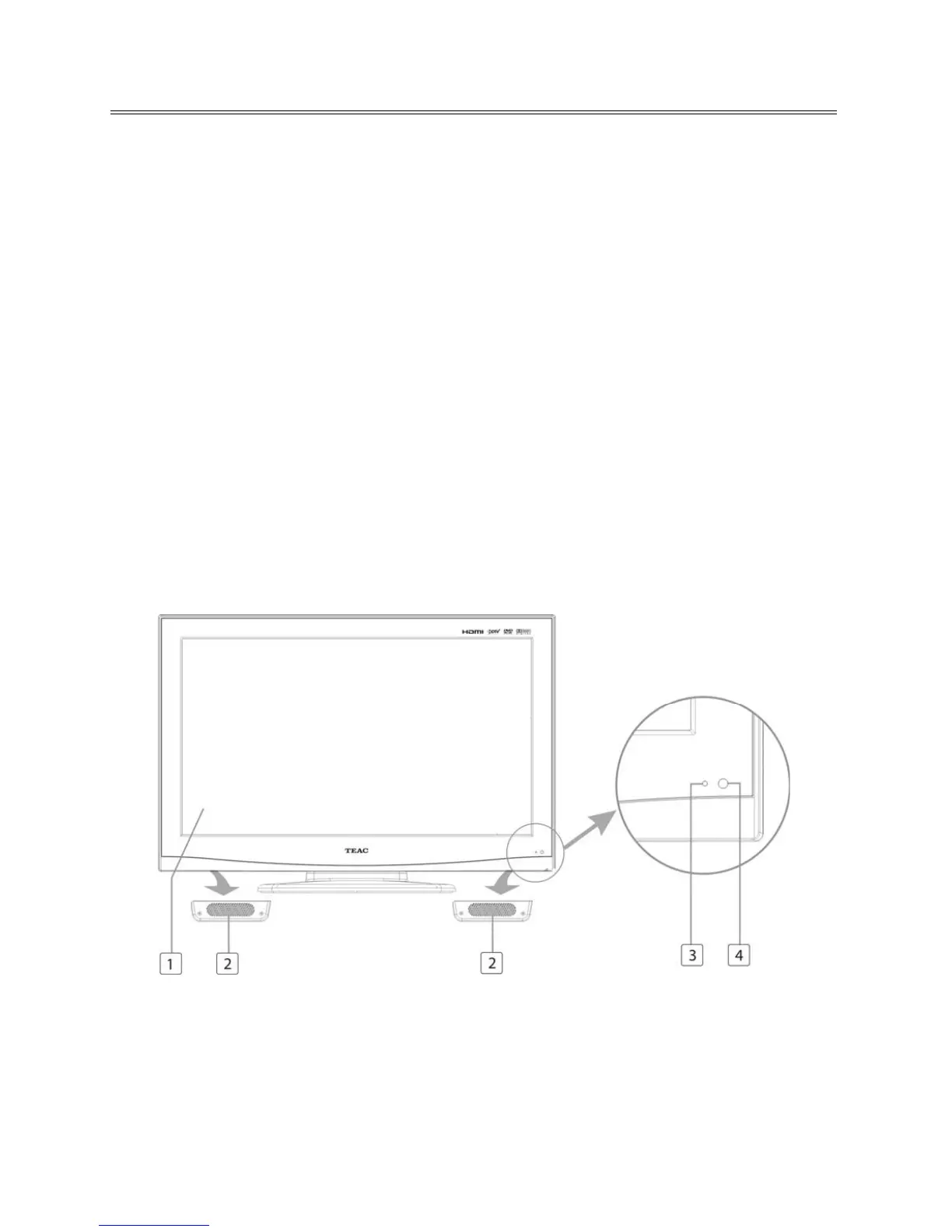

Front Panel
1. Color TFT Screen
2. Speakers
3. Power Indicator
Lights blue while system is active and red while system is in standby mode.
4. Remote Sensor
