22
System Connections
Connecting to a PC

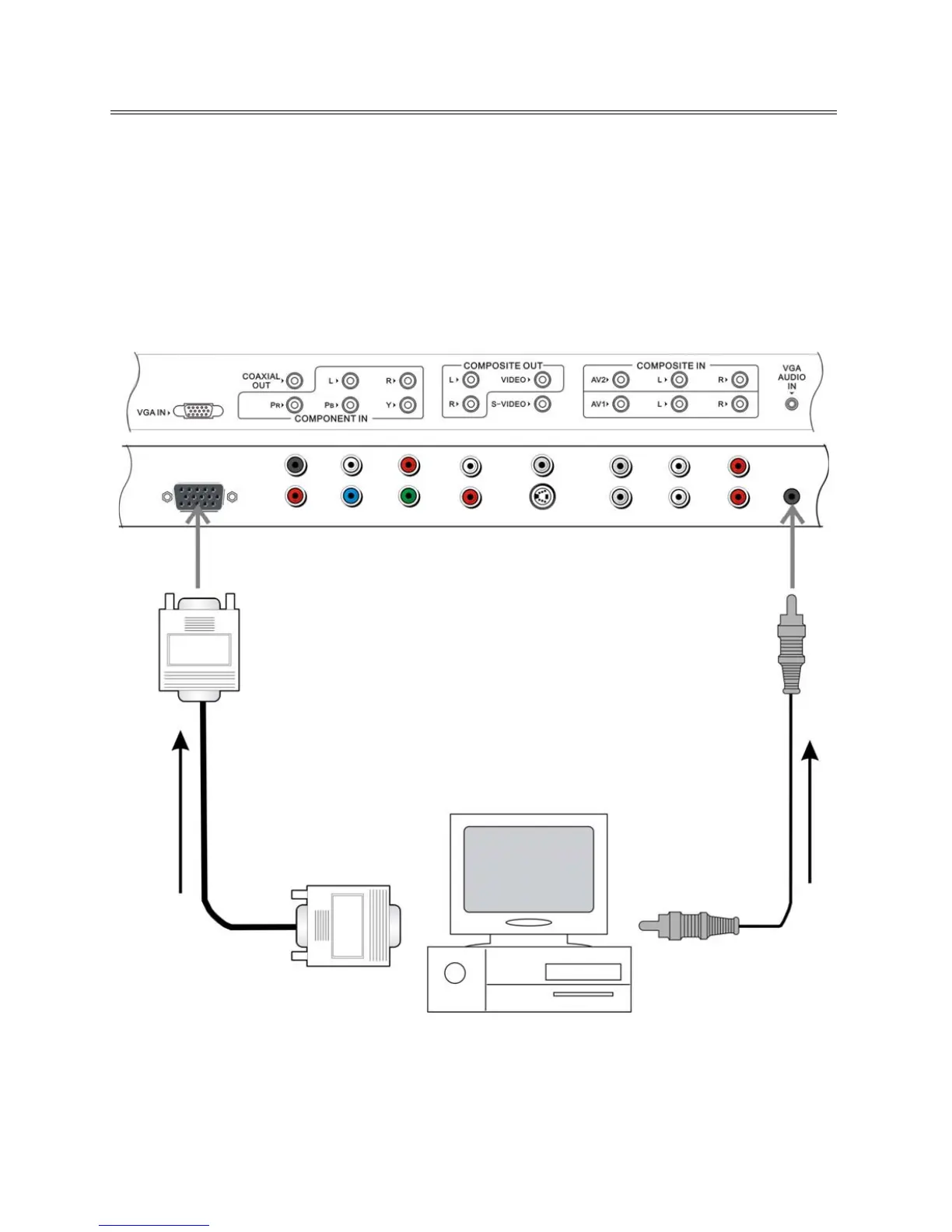

Follow the steps and figure below to connect a PC to the unit.
1. Connect one end of the VGA cable to the VGA IN jack on the jack panel of the unit and the other end
to the PC VGA output.
2. Connect one end of the audio cables to the VGA AUDIO IN jack on the jack panel of the unit and the
other end to the PC audio output jack.
3. Set the PC video resolution to match that of the television (Native 1366 x 768@60Hz).
After connection, turn on the power of the unit and the external AV signal source. Press INPUT then
direction buttons to select VGA mode, and then press the ENTER button to confirm.
