Teac LCDV3255HD User Manual

42
DVD Playback Operation
USB and SD/MS/MMC Card Function
In DVD mode, connect USB device to the USB
port or insert SD/MS/MMC card into the
SD/MS/MMC card slot on the left side of the
unit.
 Make sure that files are stored in the USB and SD/MS/MMC card before connection.

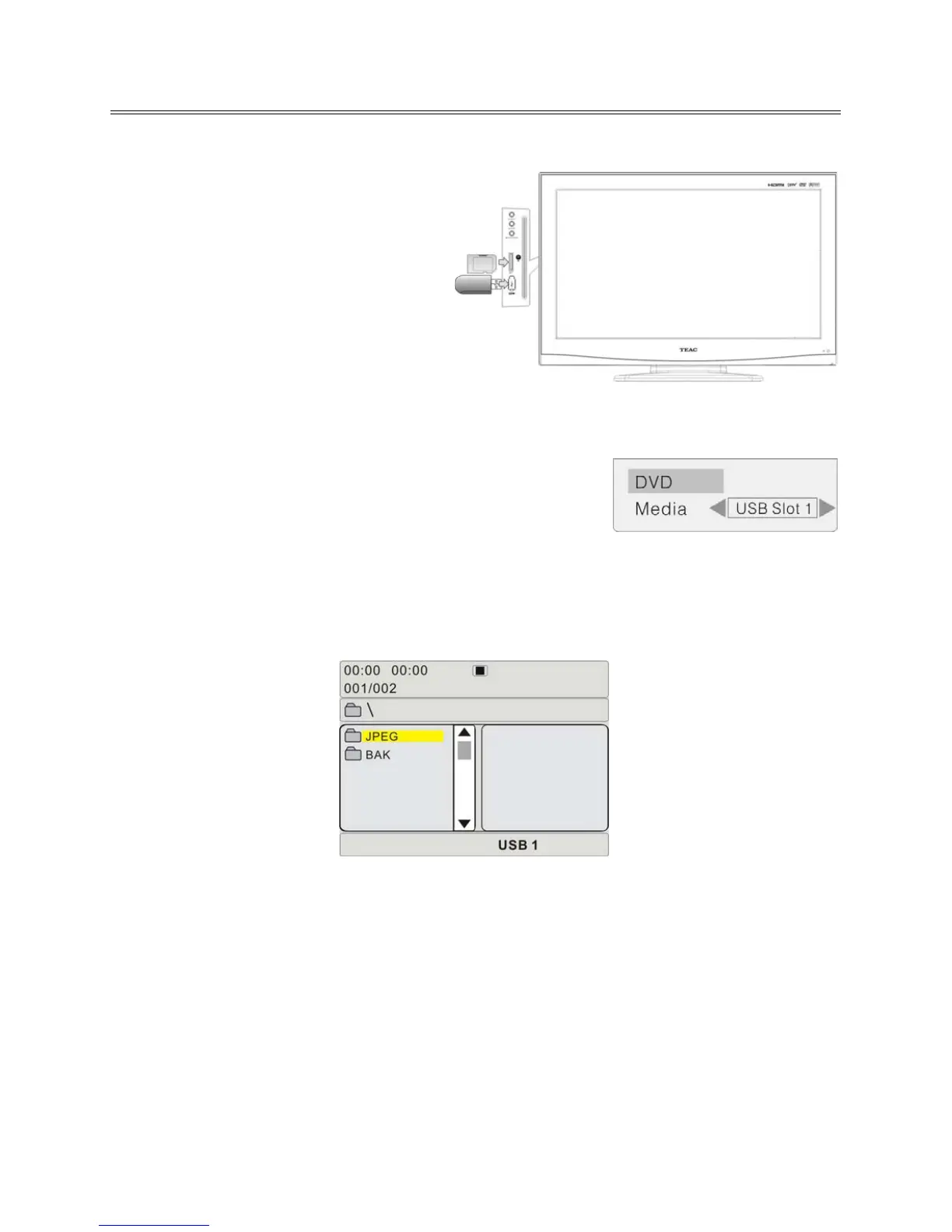

1. When you turn on the unit, the media select menu will appear
on the screen, as shown on the right:
2. This menu also appears when pressing the CARD button in
DVD mode.
3. Press the ▲▼ button to select DVD and press the ENTER button to start disc playback.
4. Press the ▲▼ button to select Media and press the ENTER button to enter. Press the ◄► button to
select USB memory playback or the SD/MS/MMC playback and press the ENTER button to start.
Please see the below figure:
5. Press the ▲▼ button to select the folder, and press the ENTER button to enter.
6. Press the ▲▼ button to select the desired track. Then press the fPLAY button to start playback.
7. Press the STOP button to stop playback. Press the fPLAY button to start playing from the
beginning of the current track. Press the ◄ button to return to the folder menu.
Notes:
1. The screen display will vary from disc to disc.
2. Pull out the USB memory or SD/MS/MMC card directly after the files are played. Then the media
selecting menu will appear on the screen.

Teac LCDV3255HD Specifications

General

Screen Size	32 inches
Display Technology	LCD
Aspect Ratio	16:9
Brightness	450 cd/m²
Response Time	8ms
Sound Output	10W x 2
Resolution	1366 x 768
Input Ports	HDMI, VGA, Component, Composite
