Teac LCDV3255HD - Connecting External AV Sources; Connecting AV1 and S-Video Sources

16
System Connections

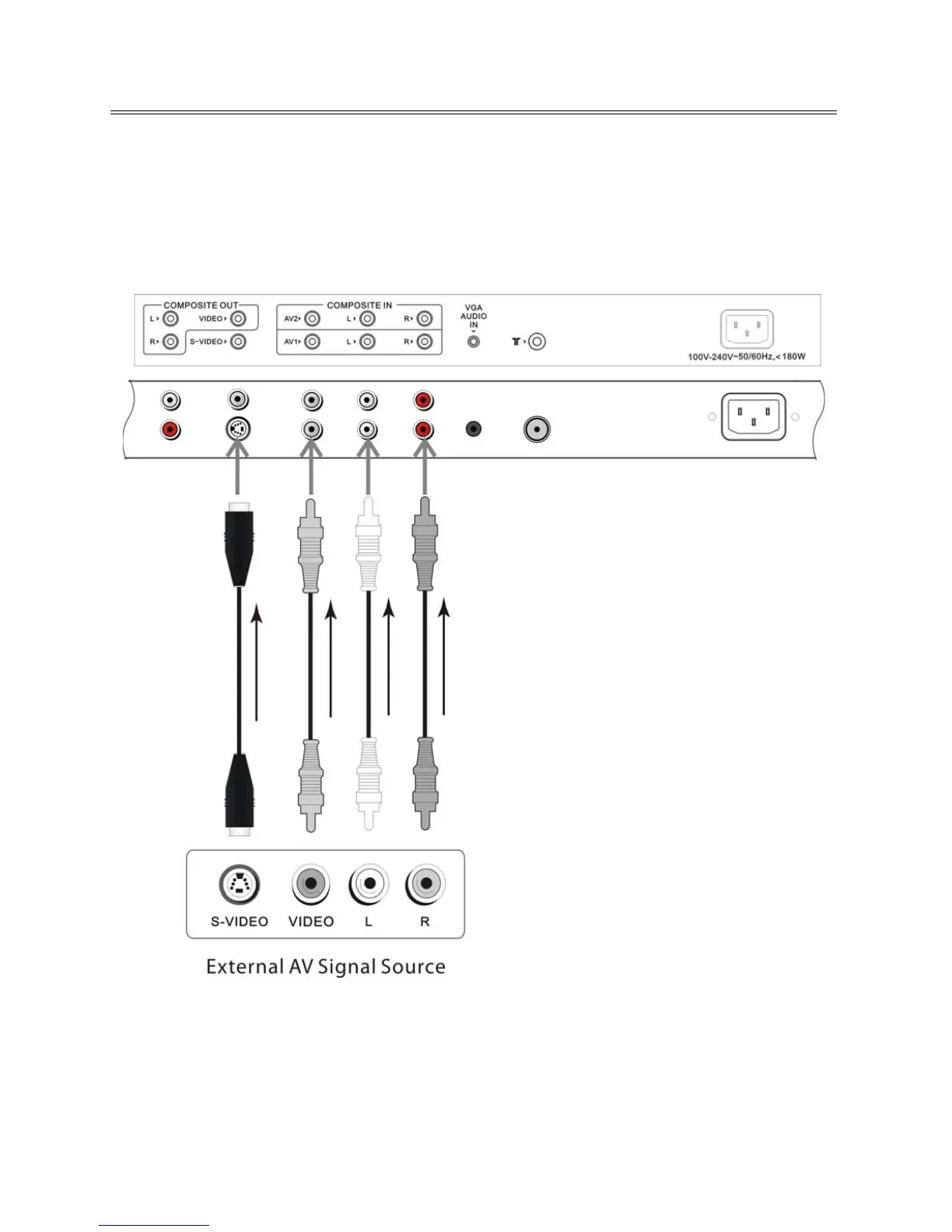

Connecting to an External AV Signal Source (AV1/S-Video)
Use the AV cables to connect the external AV signal source to the AV input jacks on the rear panel of the
unit.
Use a S-VIDEO cable (not supplied) to connect the external AV signal source to the S-VIDEO input jack on
the rear panel of the unit.
After connection, turn on the power of the unit and the external AV signal source. Press INPUT then
direction buttons to select Composite 1 or S-Video mode, and then press the ENTER button to confirm.
 The L/R audio input jacks can be used in both Composite 1 and S-Video modes.
