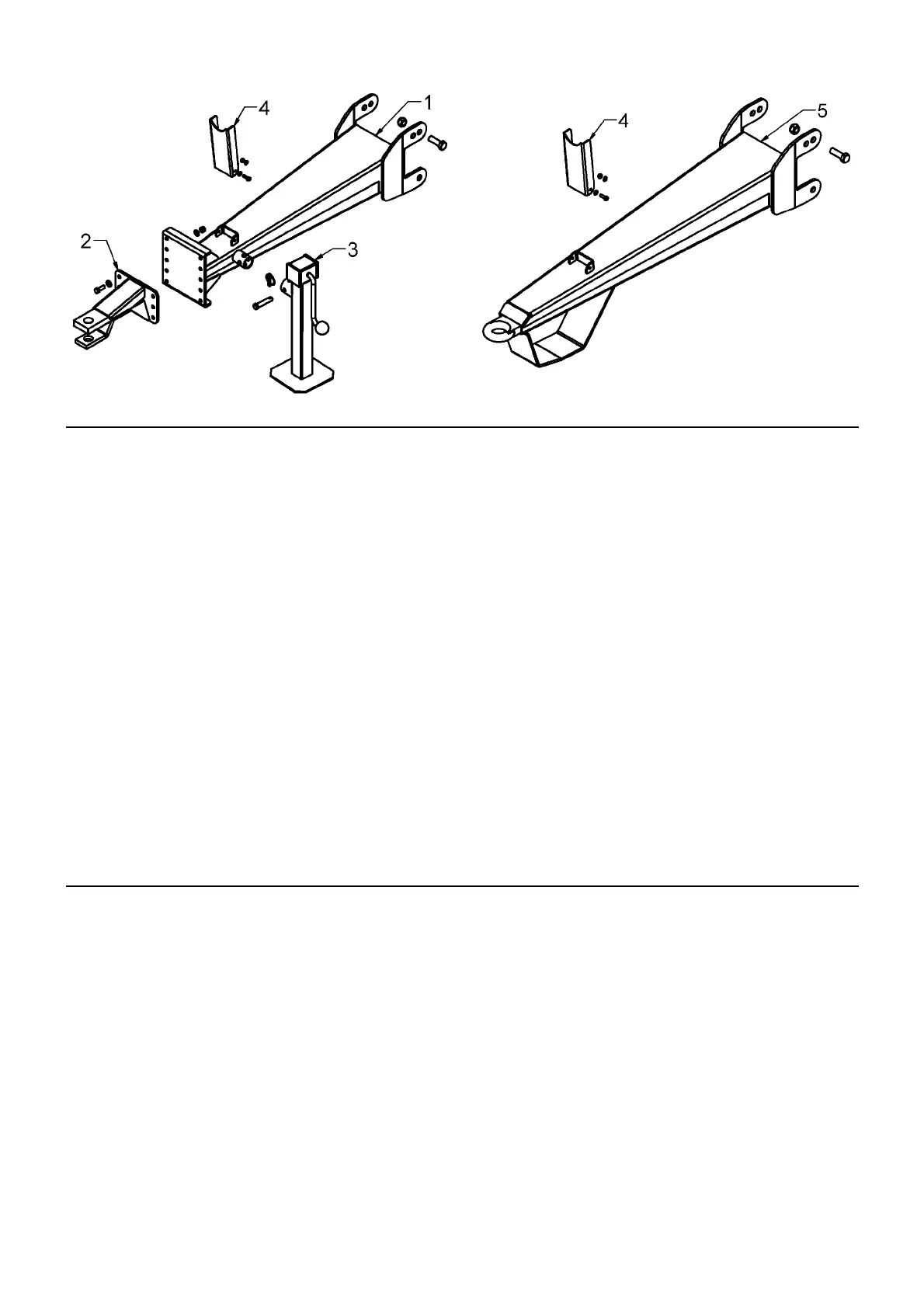

Ref Description Part No. Qty Associated Components Part No. Qty
Clevis hitch drawbar Assembly. SC3837 1
(items 1 to 4)
1 Drawbar beam SC3838 1 Bolt M20 x 70 FAS9734P 4
Washer M20 FAS2347P 4
Locknut M20 FAS2336 4
2 Drawbar clevis SC3665 1 Setscrew M12 x 35 FAS2679P 6
Washer M12 FAS2345P 12
Locknut M12 FAS2334 6
3 Jack SC1421 1 Pin FAS6508 1
Lynch Pin FAS6102 1
4 PTO rest SC4034 1 Setscrew M8 x 25 FAS2629P 2
Washer M8 FAS2343P 4
Locknut M8 FAS2333 2
Fixed drawbar assembly. SC3825 1
(Items 4 & 5)
5 Drawbar Beam SC3801 1 Bolt M20 x 70 FAS9734P 4
Washer M20 FAS2347P 4
Locknut M20 FAS2336 4
14
DRAWBARS
DECALS
Description Part No. Qty Description Part No. Qty
Teagle DL1021 4
"Please read the instruction book" DL1006 1
Bed chain speed indicator DL1081 1
RH Chute cable controls (4 Handles) DL1071 1
Giraffe cable controls (5 Handles) DL1080 1
Twin chute cable controls (5 Handles) DL1083 1
Yellow body stripe 8080 DL1079 6m
Yellow body stripe 9090 DL1079 10m
Tomahawk DL1051 2
8080 DL1112 2
9090 DL1113 2
Fingers being severed DL1033 2
Do not permit riders DL1036 1
Tighten wheel nuts DL1209 2
Crushed body DL1041 2
Blockage removal tool DL1070 1
Gearbox speed DL1073 1
Change Over From Std to Giraffe DL1084 2
PTO speed 540 rpm DL1012 1
Thrown objects DL1039 1
Serial number plate – T8080 DL2047 1
Serial number plate – T9090 DL2048 1
Rivets FAS9077 2
