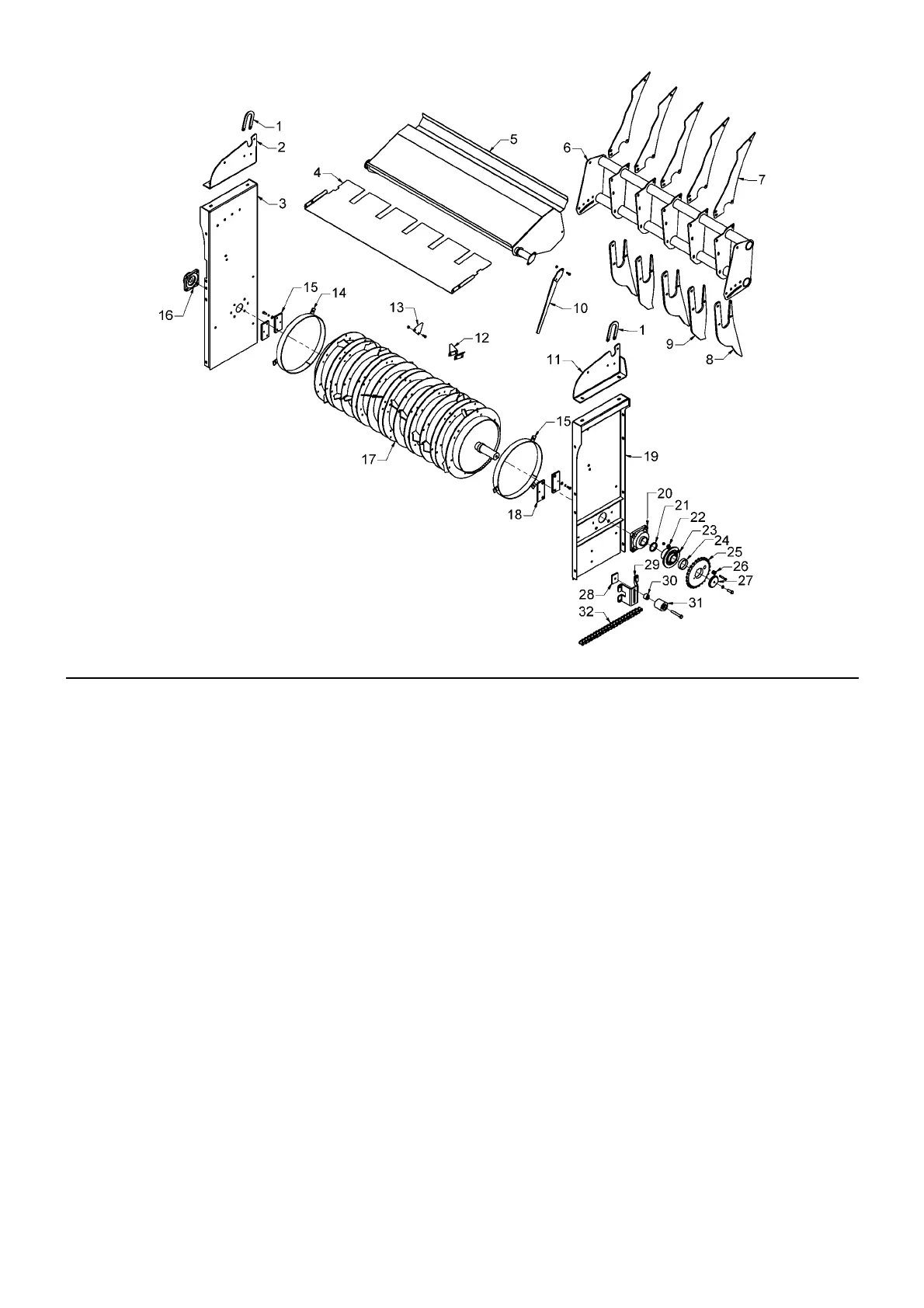

Teagle Tomahawk 8080 - SINGLE CROSSBEATER & DRIVE; Top Cover and Restraint Components; Blades and Bearings

Ref. Description Part No. Qty Associated Components Part No. Qty
1 Top cover retainer SC3693 2 Setscrew M8 x 20 FAS2627P 4
Locknut M8 FAS2332 4
2 Top cover mount RH SC3689 1 Setscrew M12 x 25 FAS2677P 2
Washer M12 FAS2345P 4
Locknut M12 FAS2334 2
3 Mid body panel RH SC3749 1 Setscrew M12 x 25 FAS2677P 9
Washer M12 FAS2345P 9
Locknut M12 FAS2334 9
4 Internal material cover SC3738 1 Setscrew M12 x 25 FAS2677P 2
Washer M12 FAS2345P 4
Locknut M12 FAS2334 2
5 Top cover SC3690 1
6 Bale restraint beam SC3722 1 Setscrew M12 x 30 FAS2678P 6
Washer M12 FAS2345P 12
Locknut M12 FAS2334 6
7 Bale guide plate SC3687 5 Setscrew M12 x 30 FAS2678P 10
Washer M12 FAS2345P 10
Locknut M12 FAS2334 10
8 Restraint finger – long SC3720 3 Setscrew M10 x 30 FAS2655P 9
Washer M10 FAS2344P 18
Locknut M10 FAS2333 9
9 Restraint finger – short SC3721 2 Setscrew M10 x 30 FAS2655P 6
Washer M10 FAS2344P 12
Locknut M10 FAS2333 6
26
SINGLE CROSSBEATER & DRIVE
