Teagle Tomahawk 8080 User Manual

Ref. Description Part No. Qty Associated Components Part No. Qty
1 Top cover handle SC3696 1 Setscrew M8 x 20 FAS2627 2
Locknut M8 FAS2332 2
2 Bush 1
3
/
8
” x 1
5
/
8
” x 1” BRG2412 2
3 Bale restraint SC3131 1 Setscrew M10 x 35 FAS2656P 2
Washer 45 x 10 x 5 FAS2412P 2
Setscrew M16 x 40 FAS2703P 2
Washer M16 FAS2346P 4
Locknut M16 FAS2335 2
4 Bale stop bar SC3130 3 Bolt M10 x 45 FAS9658P 3
Locknut M10 FAS2333 3
5 Top cover SC3690 1
6 Front shield SC3858 1 Cup square bolt M8 x 20 FAS9241P 8
Washer M8 FAS2343P 8
Locknut M8 FAS2332 8
7 Top cover retainer SC3693 2 Setscrew M8 x 20 FAS2627P 4
Locknut M8 FAS2332 4
8 Bale restraint mount RH SC3857 1 Setscrew M12 x 25 FAS2677P 2
Washer M12 FAS2345P 4
Locknut M12 FAS2334 2
Grease nipple
1
/
4
” BSF 90
o
BRG5006 1
9 Bearing 1
1
/
4
” BRG1304 2 Grease nipple M6 straight BRG5030 2
Setscrew M12 x 35 FAS2679P 8
Locknut M12 FAS2334 8
10 Mid body panel RH SC3852 1 Setscrew M12 x 25 FAS2677P 9
Washer M12 FAS2345P 9
Locknut M12 FAS2334 9
11 Nut retaining plate SC3607 4 Setscrew M8 x 20 FAS2627P 4
Plain washer M8 FAS2343P 4
Spring washer FAS2353P 4
12 Shield ring SC3861 4 Setscrew M10 x 20 FAS2652P 12
Locknut M10 FAS2333 12
28

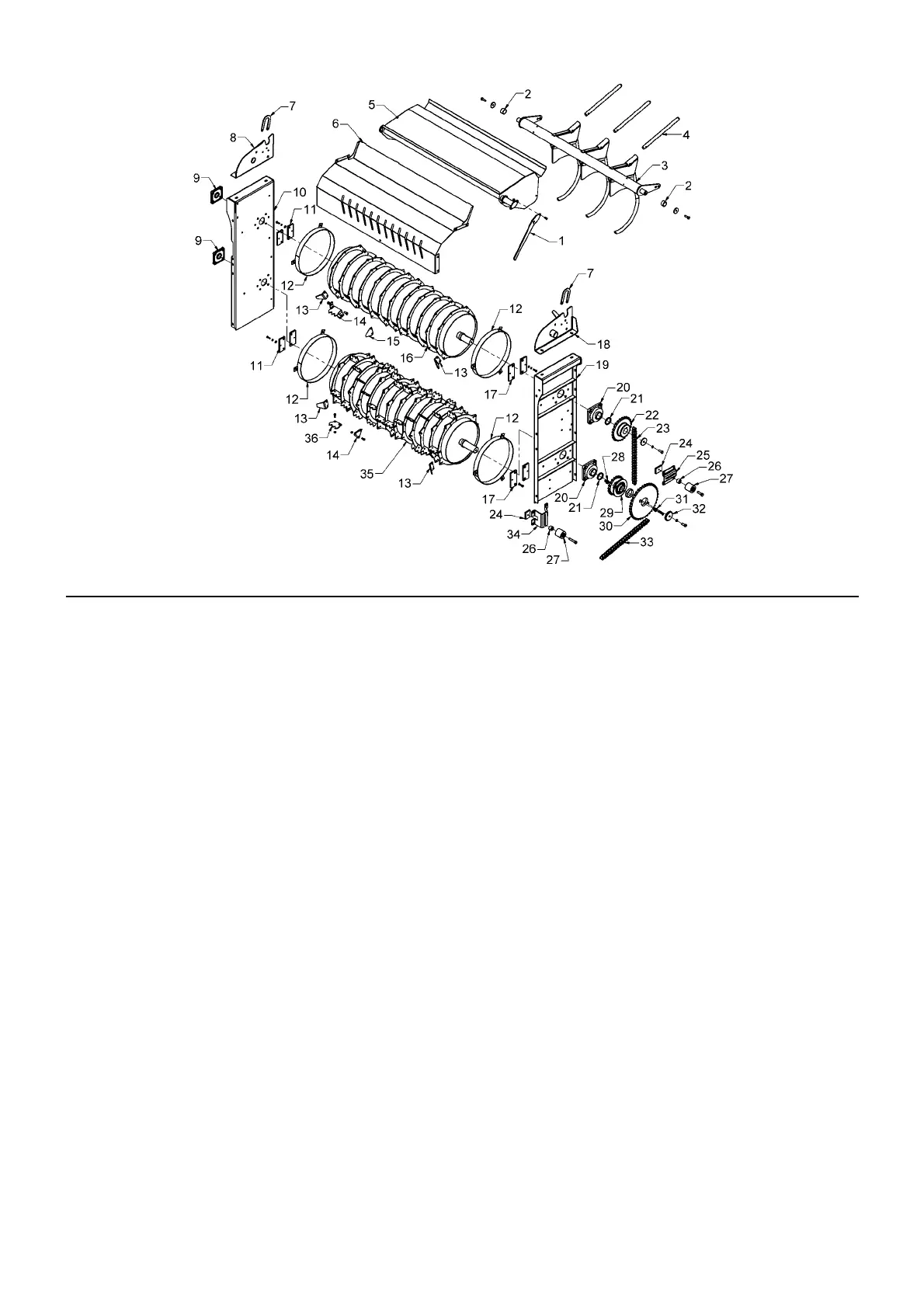

TWIN CROSSBEATER & DRIVE
