Teagle Tomahawk 8080 - LIGHTS WIRING DIAGRAM

14 Bed chain tensioner SC3384 SC3384 2 Plain nut M20 FAS2306P 4 4
M10 x 10 Grub Screw FAS8446 2 2
15 Tensioner mounting plate SC3383 SC3383 2 Cup square bolt M12 x 25 FAS9282P 6 6
Cup square bolt M12 x 30 FAS9283P 2 2
Plain washer M12 FAS2345P 8 8
Locknut M12 FAS2334 8 8
16 Sprocket scraper rear R.H. SC3390 SC3390 1 Cup square bolt M12 x 35 FAS9284P 1 1
Plain washer M12 FAS2345P 1 1
Locknut M12 FAS2334 1 1
17 Chain wheel SC3382 SC3382 2 Bush BRG2401 2 2
18 Rear shaft SC3385 SC3385 1 Grease nipple 1/8” BSP BRG5001 2 2
19 Sprocket scraper rear L.H. SC3389 SC3389 1 Cup square bolt M12 x 35 FAS9284P 1 1
Plain washer M12 FAS2345P 1 1
Locknut M12 FAS2334 1 1
Ref Description T8080 T9090 Q’ty Associated Components Part No. 8080 9090
24

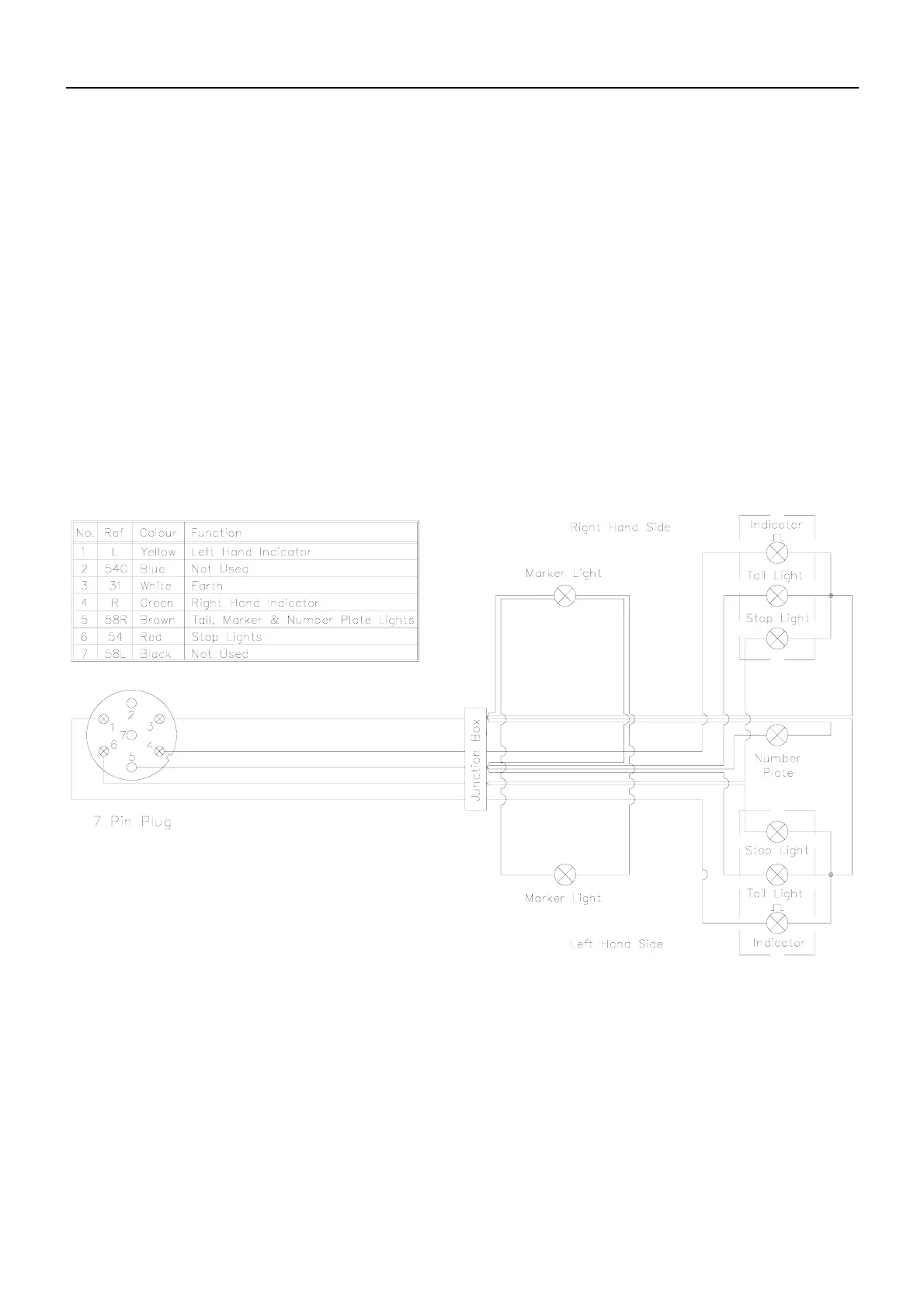

WIRING DIAGRAM – LIGHTS
