Teagle Tomahawk 8080 User Manual

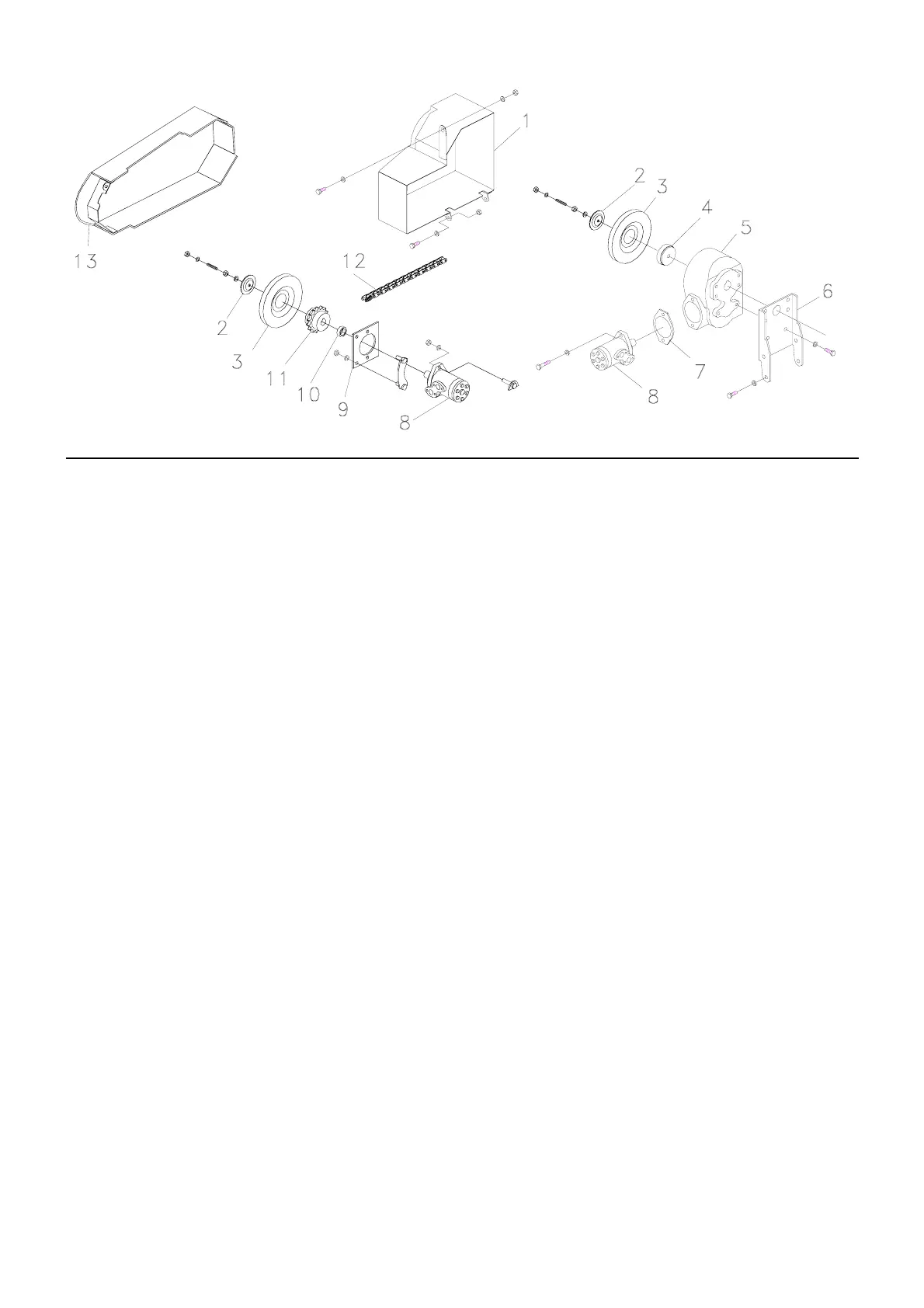

Ref Description 8080 9090 Qty Associated Components Part No. 8080 9090
1 Gearbox guard -- SC3812 1 Setscrew M8 x 20 FAS2627P -- 3
Washer M8 FAS2343P -- 6
Locknut M8 FAS2332 -- 3
2 Retaining disc SC3226 SC3226 1
3 Bed chain speed indicator SC3227 SC3227 1 Plain washer M8 FAS2343P 1 --
Plain washer 12 FAS2345P -- 1
Disc Spring SPR7012 1 1
Locknut M8 FAS2332 1 --
Locknut M12 FAS2334 -- 1
4 Indicator mount disc -- SC3813 1 Threaded bar SC3820 -- 1
Plain nut M12 FAS2304P -- 2
5 Gearbox -- SC3800 1 Key 10 x 8 x 130 FAS8133 -- 1
Setscrew M12 x 25 FAS2677P -- 6
Shakeproof washer M12 FAS9202 -- 6
6 Gearbox mounting plate -- SC3819 1 Setscrew M12 x 35 FAS2679P -- 4
Washer M12 FAS2345P -- 8
Locknut M12 FAS2334 -- 4
7 Gasket -- SC3067 1
8 Hydraulic motor 400cc HYD5203 -- 1 Motor bolt SC3267 2 --
Washer M12 FAS2345P 2 --
Locknut M12 FAS2334 2 --
Hydraulic motor 200cc -- HYD5206 1 Setscrew M12 x 50 FAS2682P -- 2
Bonded seal 1/2 BSP HYD4204 2 2
1/2 x 3/8" M/M union HYD1115 2 2
Key FAS8113 1 1
Seal kit - Adan HYD4881 1 1
Seal kit – Comer / M&S HYD4884 1 -
Seal kit – Comer / M&S HYD4885 - 1
9 Motor mounting plate SC3184 -- 1 Motor mounting bolts SC3291 1 --
Washer M12 FAS2345P 2 --
Locknut M12 FAS2334 2 --
Setscrew M12 x 80 FAS2688P 1 --
Plain nut M12 FAS2304P 1 --
10 Sprocket spacer – motor SC3183 -- 1
11 Sprocket - 15 tooth SC3225 -- 1 Threaded bar SC3196 1 --
Washer 30 x 9 x 5 FAS2408P 1 --
Plain nut M8 FAS2302P 2 --
12 Roller chain SC3158 -- 1 Joining link ROP2123 1 --
13 Chain guard SC3224 -- 1 Setscrew M8 x 20 FAS2627P 2 --
Locknut M8 FAS2332 2 --
BED CHAIN DRIVE
