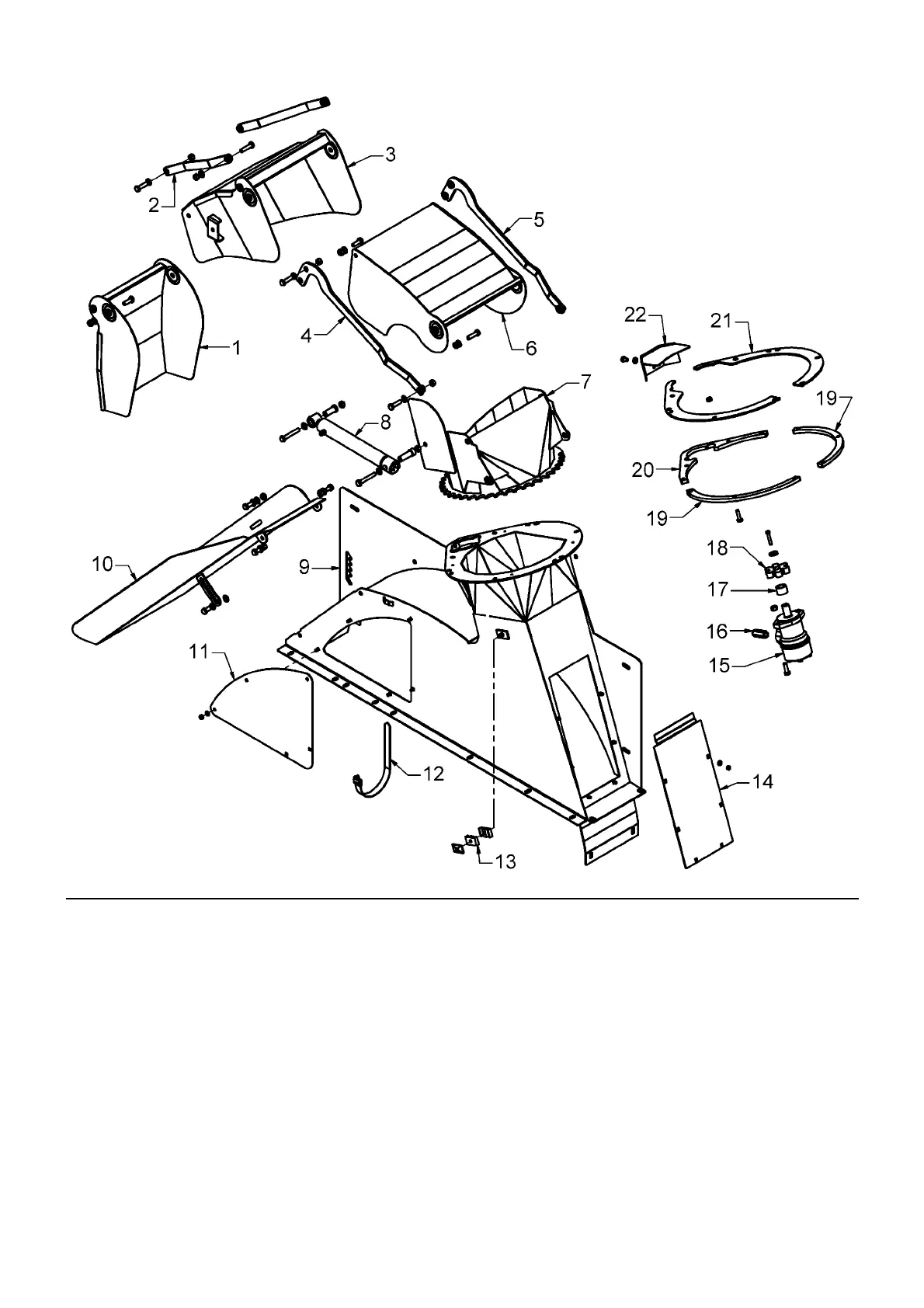

Teagle Tomahawk 8080 - SLOPING FLANGE GIRAFFE CHUTE & HOUSING

Ref Description Part No. Qty Associated Components Part No. Qty
Kit complete SC4050
1 End deflector SC4044 1 Setscrew M12 x 35 FAS2679P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
2Top link SC4047 2 Bolt M12 x 50 FAS9682P 2
Bolt M12 x 55 FAS2683P 2
Washer M12 FAS2345P 4
Locknut M12 FAS2334 4
3 Mid deflector SC4043 1
4 Lower link LH SC4045 1 Bolt M12 x 50 FAS9682P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
5 Lower link RH SC4046 1 Bolt M12 x 50 FAS9682P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
20
SLOPING FLANGE GIRAFFE CHUTE & HOUSING
