Teagle Tomahawk 8080 User Manual

10 Gear change handle SC3970 1 R Clip 2.5mm FAS6002 1
11 Lower access panel SC4052 1 Cup square bolt M8 x 20 FAS9241P 2
Plain washer M8 FAS2343P 2
Locknut M8 FAS2332 2
12 Blockage removal tool SC1247 1
13 Strap re-useable FAS9001 3
14 Hose carrier (Pivoting) SC3740 1 Setscrew M12 x 30 FAS2678P 4
Washer M12 FAS2345P 4
Locknut M12 FAS2334 4
15 Hose carrier bracket SC3739 1 Setscrew M12 x 30 FAS2678P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
17

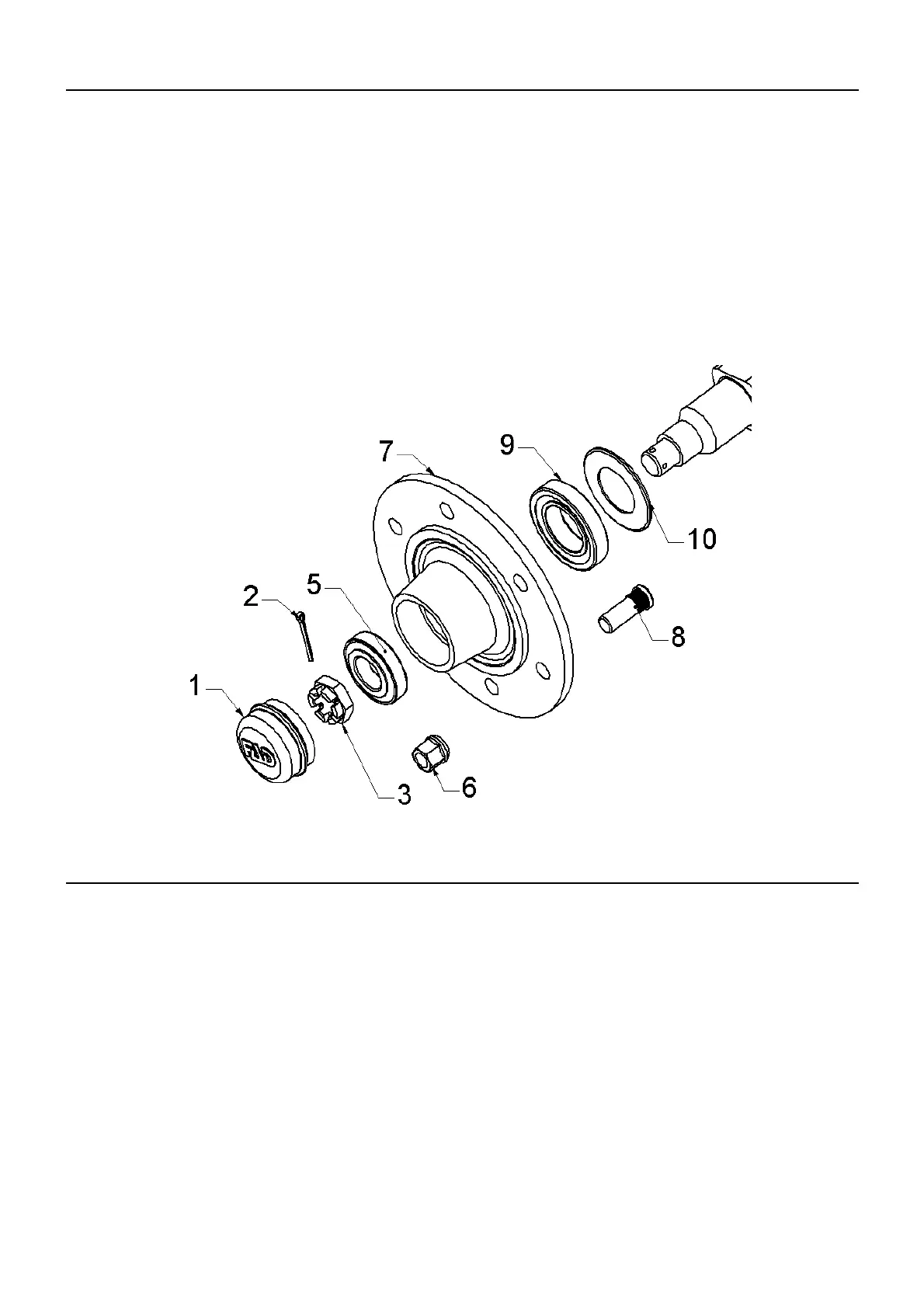

Ref Description 8080/9090 Qty Associated Components Part No. Qty
RIMA Axle FAD Axle RIMA Axle FAD Axle
6 stud 6 stud 6 stud 6 stud
Ref Description 8080 8080 9090 9090
Axle assembly complete SC3726 SC3726 SC3847 SC3847 1
1. Hub cap WE1501 WE0945 WE1504 WE0927 1
2. Split pin FAS5107 FAS5112 FAS5116 FAS5115 1
3. Slotted nut WE1505 WE0946 WE1506 WE0946 1
4. 60 x 30 x 4 Plain Washer FAS4816 - - - - - - - - - - - - - - - - - - - - - 1
72 x 36.5 x 5 Plain Washer - - - - - - - - - - - - - - FAS4817 - - - - - - - 1
5. Outer bearing BRG1222 BRG1207 BRG1231 BRG1229 1
6. Wheel nut – M18 (fine) WE0909 WE0909 WE0909 WE0909 6
7. FAD hub complete with studs - - - - - - - WE0944 - - - - - - - WE0948 1
RIMA hub WE1500 - - - - - - - WE1503 - - - - - - - 1
8 Wheel stud – M18 x 50 (pitch – 1.5mm) - - - - - - - WE0908 - - - - - - - WE0908 6
Wheel stud – M18 x 55 (pitch – 1.5mm) WE1502 - - - - - - - WE1502 - - - - - - - 6
9 Inner bearing BRG1208 BRG1229 BRG1232 BRG1209 1
10 Oil seal BRG3066 BRG3063 BRG3067 BRG3053 1
WHEEL EQUIPMENT
