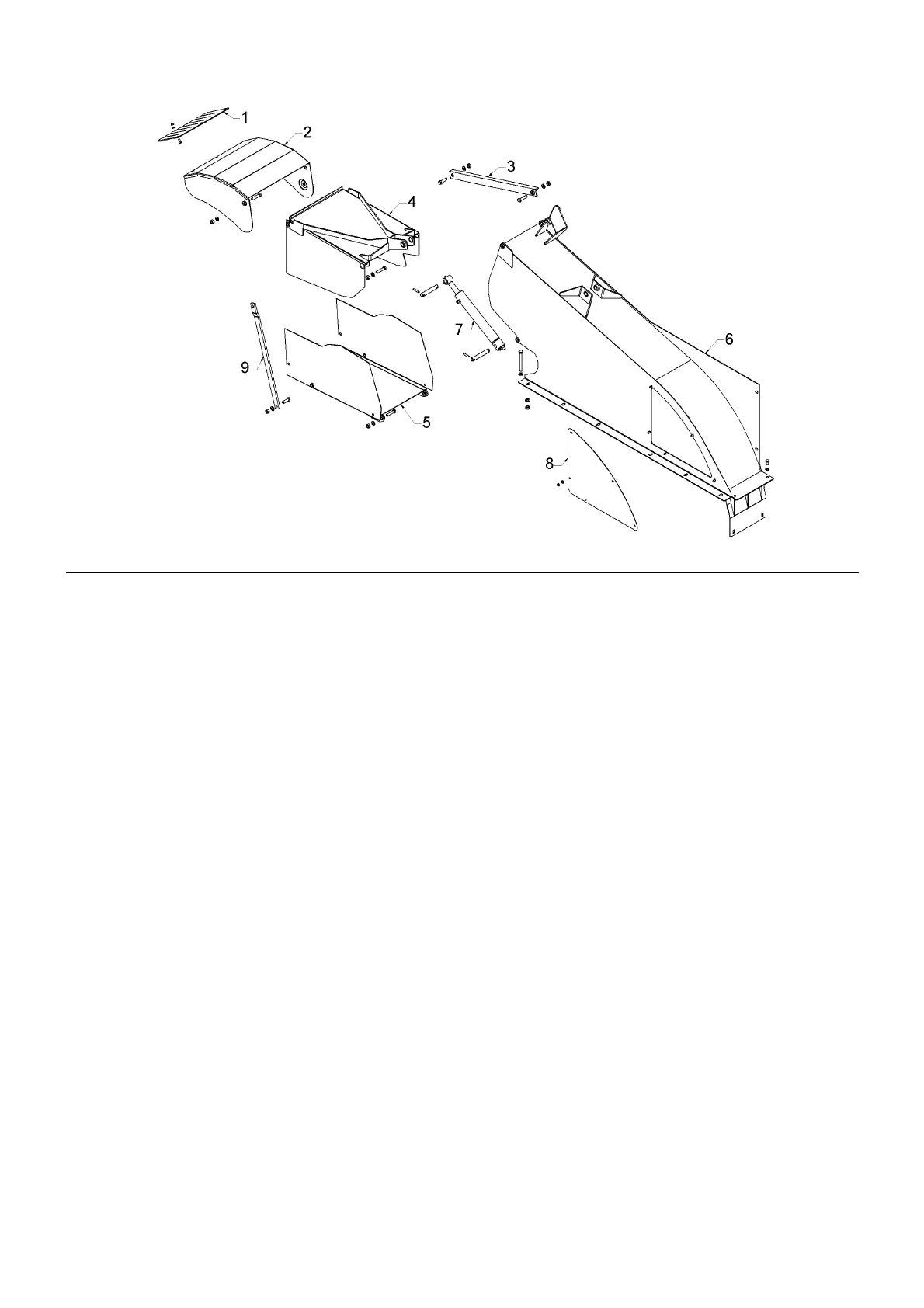

RIGHT HAND CHUTE & HOUSING
Ref Description Part No. Qty Associated Components Part No. Qty
Standard chute kit complete SC3962
1 Deflector strip SC3179 1 Cup square bolt M8 x 20 FAS9241P 3
Washer M8 FAS2343P 3
Locknut M8 FAS2332 3
2 Deflector SC3102 1 Bolt M12 x 55 FAS9683P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
3 Connecting link SC3627 1 Bolt M12 x 45 FAS9681P 1
Bolt M12 x 50 FAS9682P 1
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
4 Outlet chute – upper SC3993 1 Bolt M12 x 55 FAS9683P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
5 Outlet chute-lower SC3620 1 Bolt M12 x 50 FAS9682P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
6 Housing top SC3963 1 Setscrew M12 x 25 FAS2677P 6
Plain Washer M12 FAS2345P 12
Locknut M12 FAS2334 6
Setscrew M10 x 25 FAS2654P 2
Cup square bolt M10 x 25 FAS9262P 2
Plain washer M10 FAS2344P 6
Locknut M10 FAS2333 4
7 Chute ram CYL1084 1 Pivot pin - housing SC1379 1
Pivot pin – chute SC3295 1
Spring tension pin 8 x 40 FAS4131 4
8 Inspection plate SC3909 1 Washer M8 FAS2343P 5
Locknut M8 FAS2332 5
9 Connecting link SC3618 2 Setscrew M12 x 40 FAS2680P 2
Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
