Teagle Tomahawk 8080 User Manual

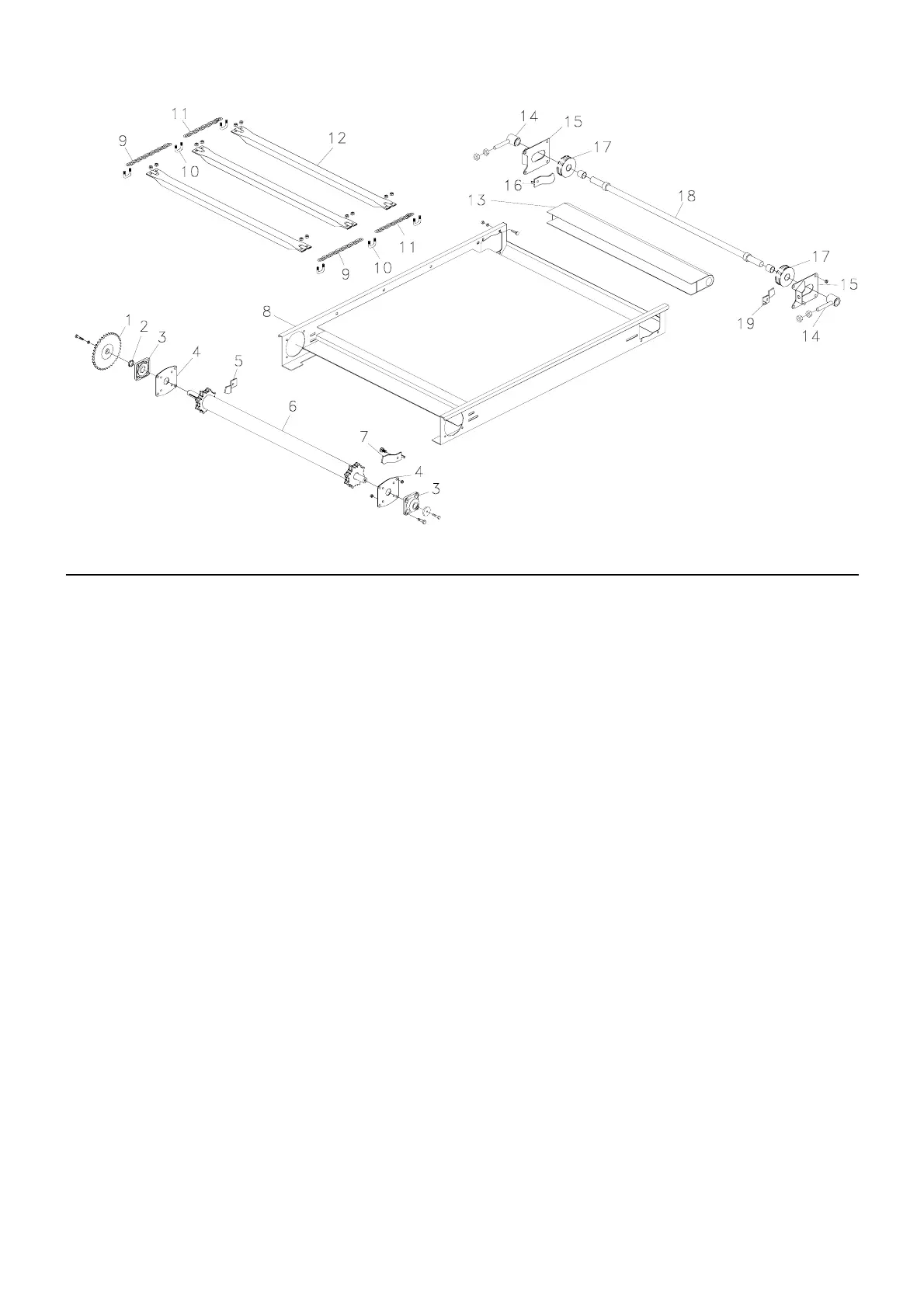

FLOOR ASSEMBLY
Ref Description 8080 9090 Qty Associated Components Part No. 8080 9090
1 Sprocket - 38 tooth SC3156 -- 1 Key 10 x 8 x 40 FAS8120 1 --
2 Sprocket spacer SC3191 SC3191 1
3 Bearing BRG1305 BRG1305 2 Setscrew M12 x 35 FAS2679P 8 8
Locknut M12 FAS2334 8 8
Grease nipple ¼” BSF BRG5004 2 2
4 Bearing mounting plate SC3022 SC3022 2 Cup square bolt M12 x 25 FAS9282P 8 8
Locknut M12 FAS2334 8 8
5 Sprocket scraper front R.H. SC3388 SC3388 1 Cup square bolt M12 x 30 FAS9283P 2 2
Plain washer M12 FAS2345P 2 2
Locknut M12 FAS2334 2 2
6 Front sprocket SC3386 SC3811 1 Setscrew M12 x 35 FAS2679P 2 2
Washer 50 x 13 x 5mm FAS2383P 2 2
Spring washer M12 FAS2374P 2 2
7 Sprocket scraper front L.H. SC3387 SC3387 1 Cup square bolt M12 x 30 FAS9283P 2 2
Plain washer M12 FAS2345P 2 2
Locknut M12 FAS2334 2 2
8 Floor section SC3397 SC3810 1 Setscrew M12 x 25 FAS2677P 2 2
Setscrew M12 x 30 FAS2678P 2 2
Locknut M12 FAS2334 4 4
Setscrew M10 x 70 FAS2663P 1 1
Locknut M10 FAS2333 1 1
9 Chain section – 13 links SC3367 -- 8
Chain section – 13 links -- SC3367 12
10 Joiner SC3351 -- 16 Locknut M12 FAS2334 32 --
Joiner -- SC3351 24 Locknut M12 FAS2334 -- 48
11 Chain section – 11 links SC3368 -- 8
Chain section – 11 links -- SC3368 12
12 Slat – crushed ends SC3352 -- 8
Slat – crushed ends -- SC3352 12
13 Rear floor section SC3398 SC3398 1
23
