Teagle Tomahawk 8080 User Manual

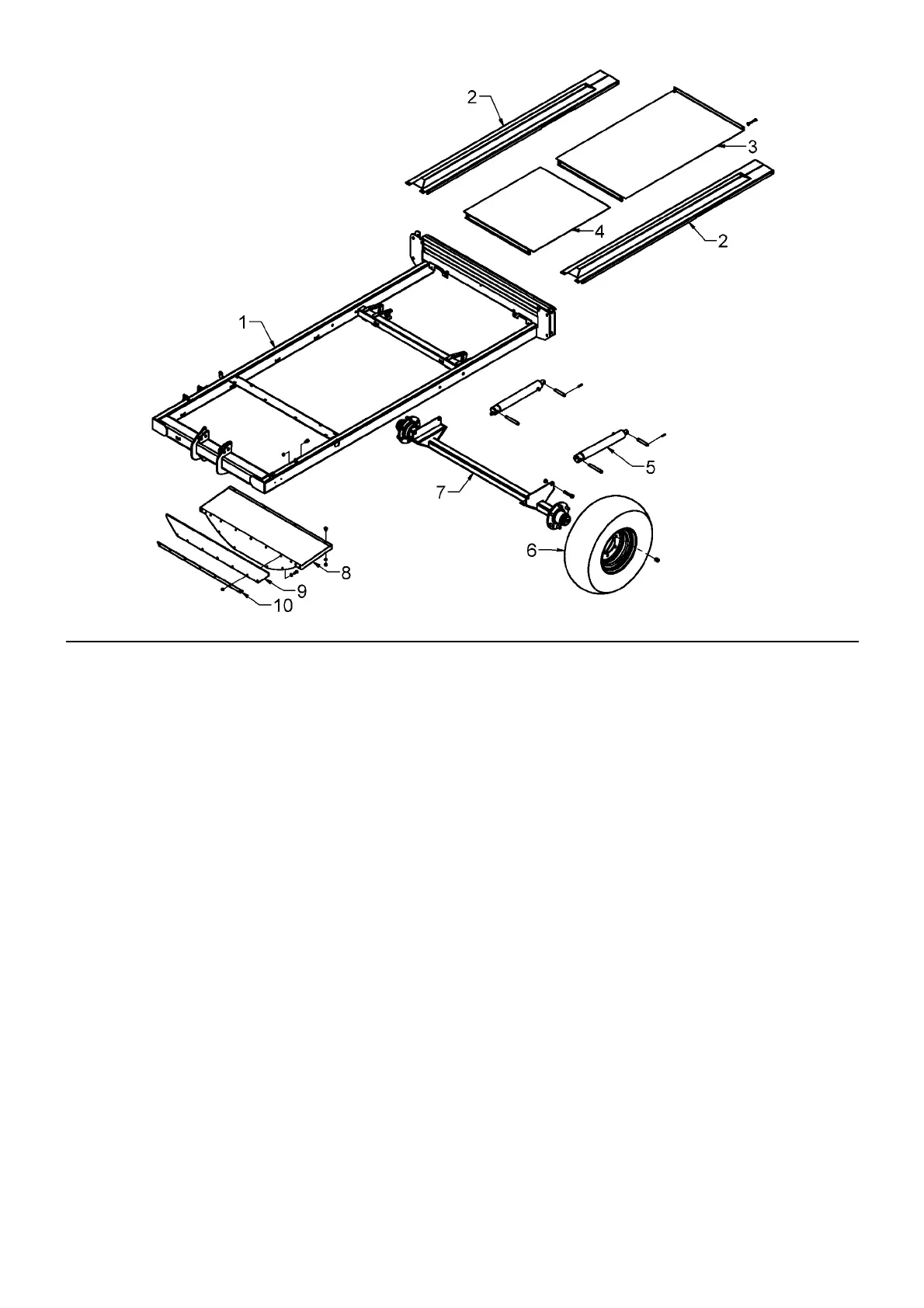

Ref Description 8080 9090 Qty Associated Components Part No. 8080 9090
1 Chassis SC3691 SC3802 1 Setscrew M12 x 25 FAS2677P 2 2
Locknut M12 FAS2334 2 2
2 Outer lower panel SC3613 SC3805 2 Setscrew M10 x 25 FAS2654P 4 4
Cup square bolt M10 x 20 FAS9261P 4 4
Washer M10 FAS2344P 4 4
Locknut M10 FAS2333 8 8
3 Rear inspection panel SC3112 SC3112 1 Bolt M10 x 70 FAS9663P 2 2
Washer M10 FAS2344P 2 2
4 Mid inspection panel -- SC3804 1
5 Tailgate ram CYL1065 CYL1065 2 Axle pivot pin SC3296 2 2
Tailgate pivot pin SC3295 2 2
Spring tension pin 8 x 40 FAS4131 8 8
6 Wheel 10/75 x 15 6 Stud WE1105 -- 2 Wheel rim – 6 Stud WE1124 2 --
Inner tube WE1103 2 --
Tyre WE1102 2 --
Wheel 11.5/80 x 15 6 Stud -- WE1151 2 Wheel rim WE1124 -- 2
Inner tube WE1103 -- 2
Tyre WE1112 -- 2
7 Axle beam FAD SC3726 SC3847 1 Bolt M16 x 80 FAS9711P 4 --
Bolt M16 x 90 FAS9713P -- 4
Locknut M16 FAS2335 4 4
8 Front lower panel SC3803 SC3803 1 Setscrew M10 x 30 FAS2655P 6 6
Cup square M10 x 20 FAS9261P 4 4
Plain washer M10 FAS2344P 16 16
Locknut M10 FAS2333 10 10
9 Seal strip SC3113 SC3113 1 Setscrew M10 x 30 FAS2655P 7 7
Locknut M10 FAS2333 7 7
10 Clamp plate SC3114 SC3114 1
15
CHASSIS
