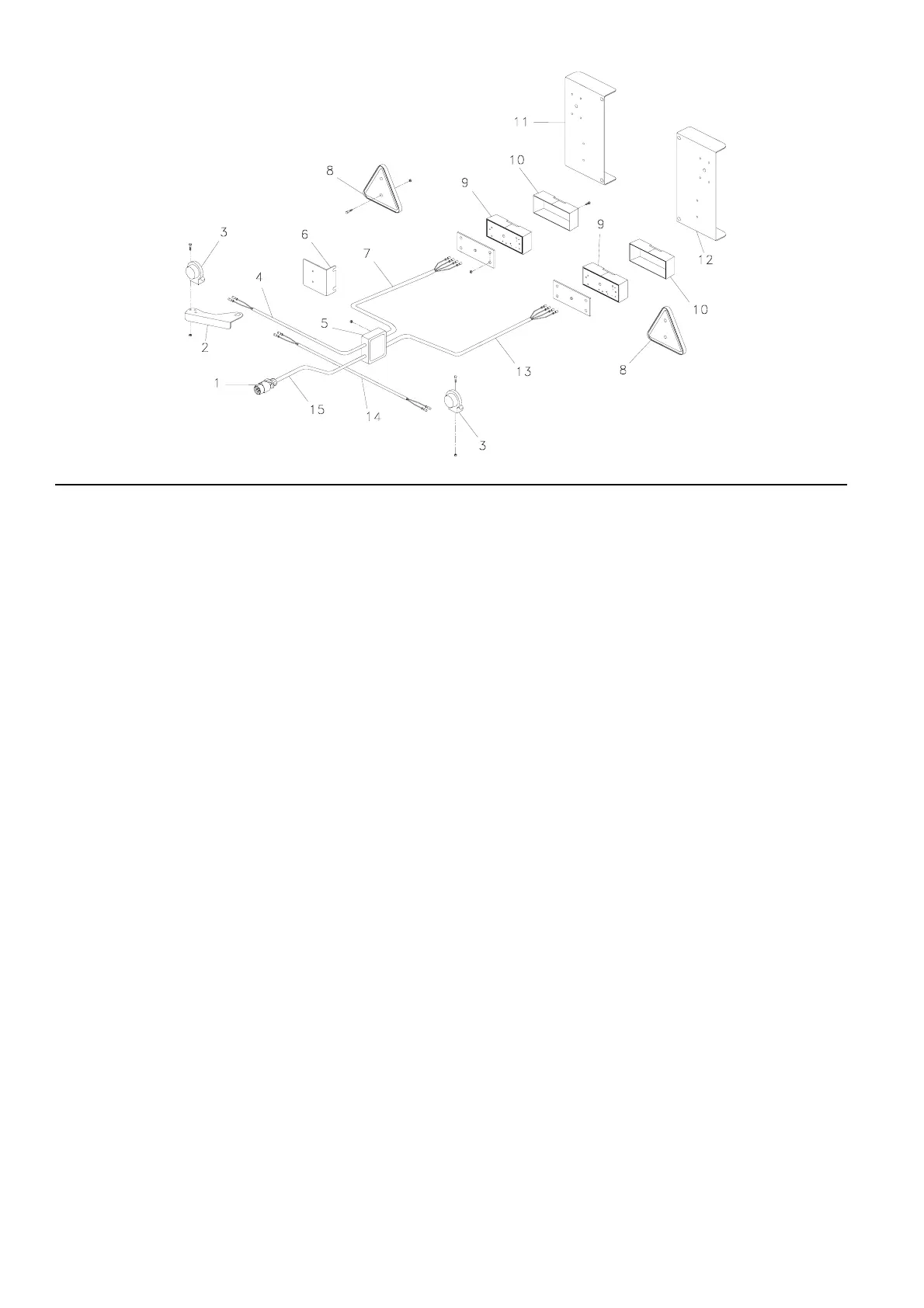

LIGHTS
Ref Description Part No. Qty Associated Components Part No. Qty
1 7 pin plug TS9040 1
2 Marker light bracket - RH SC3757 1 Cup square bolt M8 x 20 FAS9241P 2
Washer M8 FAS2343P 2
Locknut M8 FAS2332 2
3 Front Marker Light Complete TS9001 2 Lens TS9002 2
Bulb (12V 5W ) TS9003 2
Bolt M5 x 16 FAS2419P 6
Nut M5 FAS2310 6
4 Front light cable ( junction to light ) TS9004 1
5 Junction box TS9041 1 Nut M5 FAS2310 2
6 Junction box mount SC3245 1
7 Rear light cable - RH TS9016 1
8 Reflective triangle TS9030 2 Bolt M5 x 16 FAS2419P 4
Nut M5 FAS2310 4
9 Rear light c\w lens TS9012 2 Indicator bulb (12V 21W ) TS9015 2
Stop/tail bulb (12V 21/5W ) TS9014 2
Bolt M5 x 16 FAS2419P 8
Nut M5 FAS2310 8
10 Rear light lens TS9013 2
11 Light bracket - RH SC3240 1
12 Light bracket - LH SC3239 1
13 Rear light cable - LH TS9018 1
14 Front light cable ( light to light ) TS9006 1
15 7 pin plug cable TS9038 1
