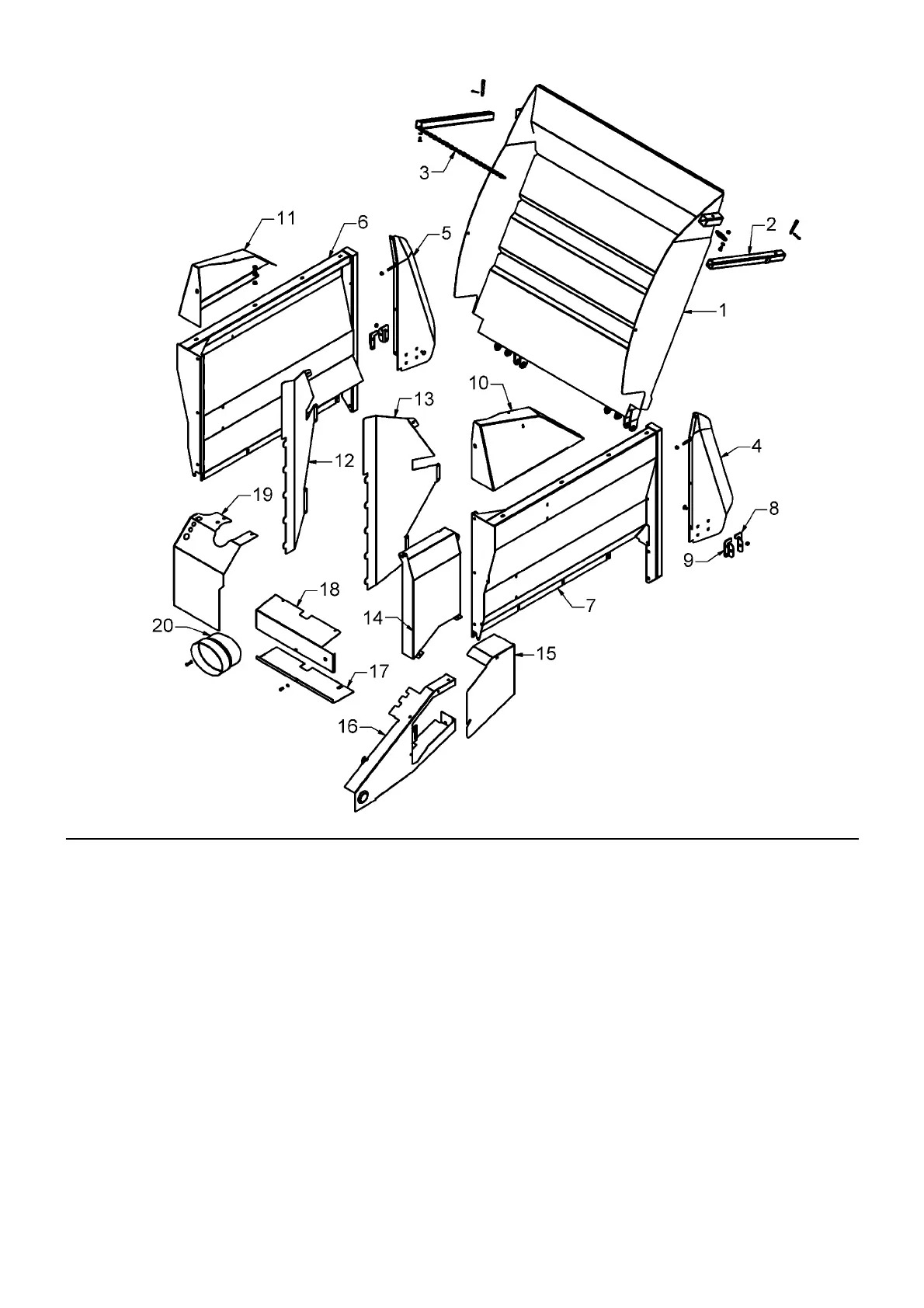

Ref Description 8080 9090 Qty Associated Components Part No. 8080 9090
1 Tailgate SC3661 SC3661 1 Pivot pin SC3615 2 2
Spring tension pin 8 x 40 FAS4131 4 4
2 Tailgate post SC3068 SC3068 2 Headed pin FAS6267P 2 2
R pin 3mm FAS6003 2 2
3 Chain SC3192 SC3192 1 Setscrew M10 x 20 FAS2652P 2 2
Locknut M10 FAS2333 2 2
Washer M10 FAS2344P 2 2
Chain retainer SC3206 1 1
4 Guide plate LH SC3172 SC3172 1 Bolt M10 x 70 FAS9663P 4 4
Locknut M10 FAS2333 4 4
5 Guide plate RH SC3173 SC3173 1 Bolt M10 x 70 FAS9663P 4 4
Locknut M10 FAS2333 4 4
6 Rear body panel RH SC3165 SC3814 1 Cup square bolt M12 x 25 FAS9282P 4 6
Washer M12 FAS2345P 4 6
Locknut M12 FAS2334 4 6
Bolt M16 x 90 HT (8.8) FAS9713P 2 2
Washer M16 FAS2346P 4 4
Locknut M16 FAS2335 2 2
30
BODY
